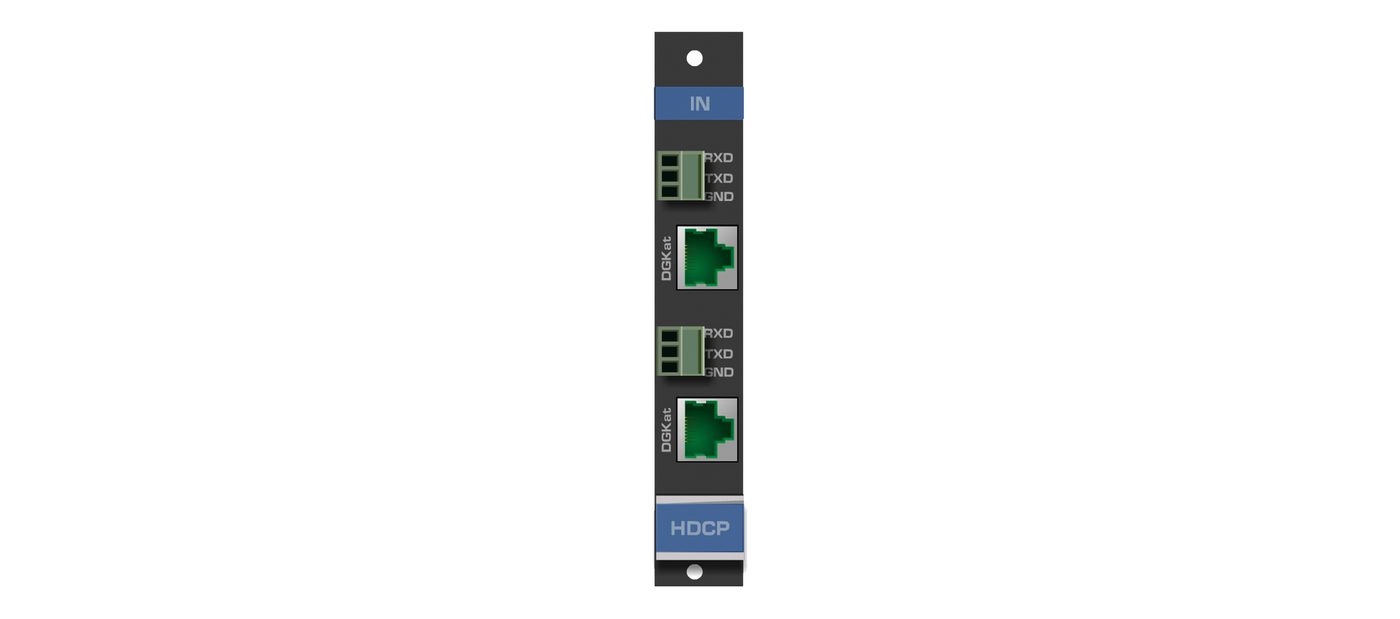

Kramer DGKat-IN2-F16 2-Channel HDMI & RS-232 over DGKat Input Card

The Kramer DGKat-IN2-F16 is a 2-Channel HDMI & RS-232 over dGKat input card, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: 2 TP ports on RJ-45 connectors, 2 serial ports on 3-pin terminal blocks (ports); Video: 1.65Gbps; serial data: 19200 (bandwidth per channel); Video: 4.95Gbps; serial data: 19200 (total bandwidth). Also: 90m (300ft) - 1080p @60Hz (maximum range); Supported (3d pass through); 12W (power consumption); 0 deg to +40 degC (32 deg to 104 degF) (operating temperature); -40 deg to +70 degC (-40 deg to 158 degF) (storage temperature).
