JVC KY-PZ200NBU 20x HD NDI PTZ Camera, Black (B-Stock)
The KY-PZ200NBU is the NDI-equipped, black-finish version of JVC's HD PTZ remote camera, built for streaming image quality over the public internet. A 1/2.8-inch progressive CMOS sensor sits behind a 20x optical zoom that reaches to 606.9mm in 35mm-equivalent terms, and the camera encodes in H.265, H.264, or MJPEG so bandwidth and quality can be tuned to the link.
The N model adds NDI|HX to the SRT streaming and VITC timecode synchronization shared across the KY-PZ200 line, which keeps multiple cameras frame-aligned in a switcher. Outputs cover HDMI, 3G-SDI, and RJ45, and the camera takes power and control over PoE, RS-232, and RS-485. It pairs with the RM-LP100U or RM-LP250 control panel. This is a JVC B-stock unit with a 30-day warranty.
| Sensor | 1/2.8-inch progressive CMOS |
|---|---|
| Optical Zoom | 20x (to 606.9mm @35mm equivalent) |
| Resolution | Up to 1080p60 |
| Encoding | H.265 / H.264 / MJPEG |
| Streaming | NDI|HX and SRT |

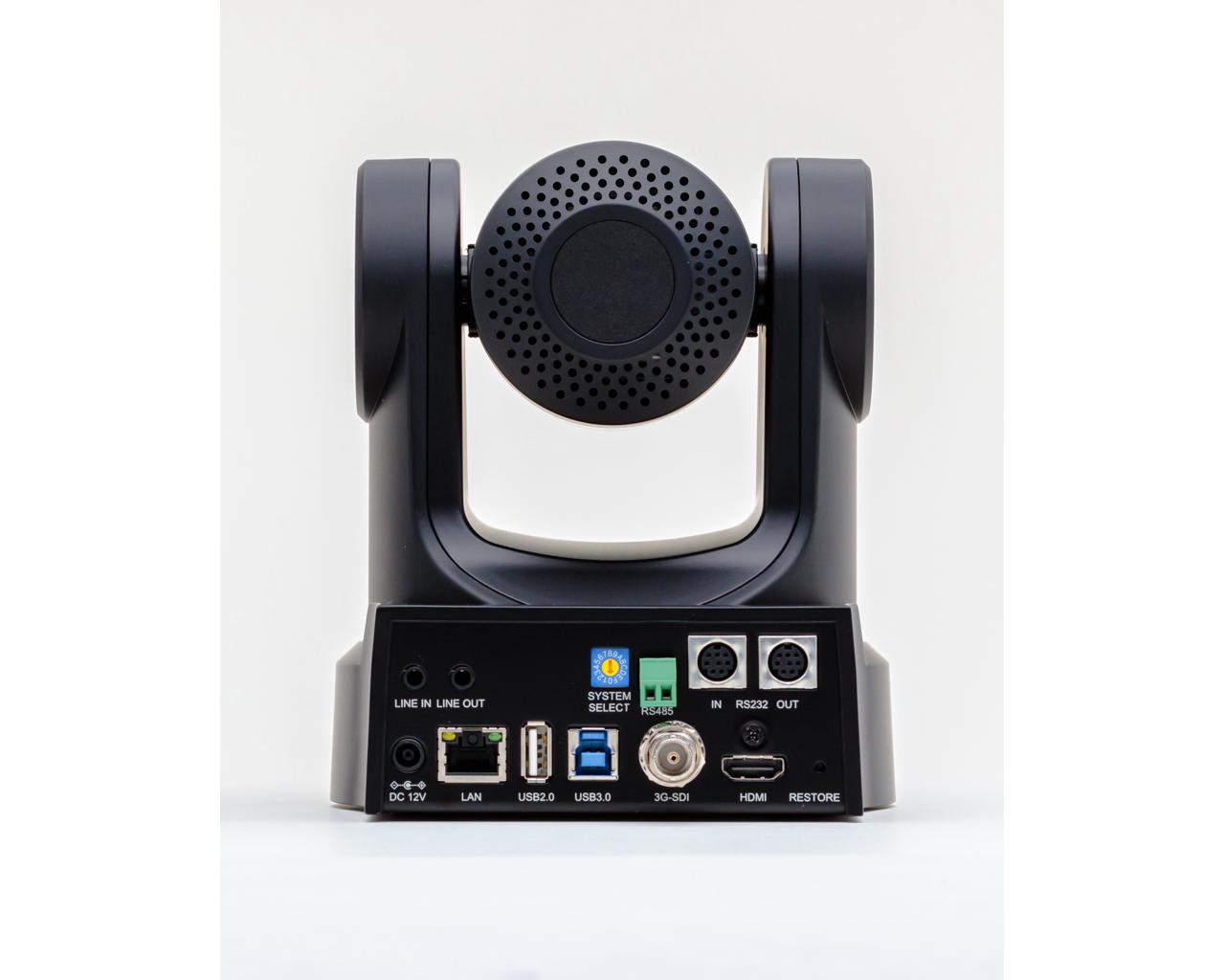

| Outputs | HDMI, 3G-SDI, RJ45 |
| Interfaces | PoE, RS-232, RS-485 |
| Sync | VITC multi-camera timecode |
