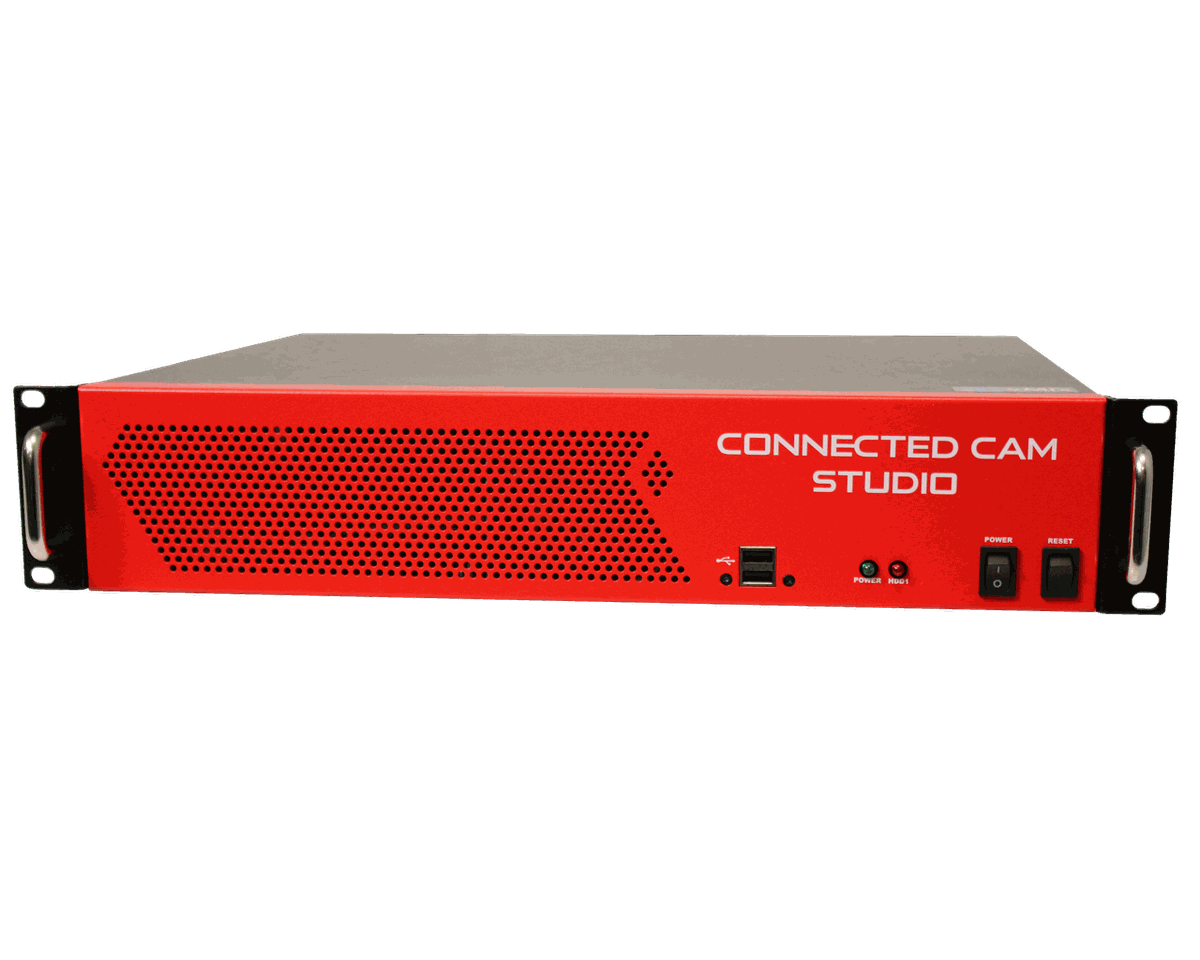

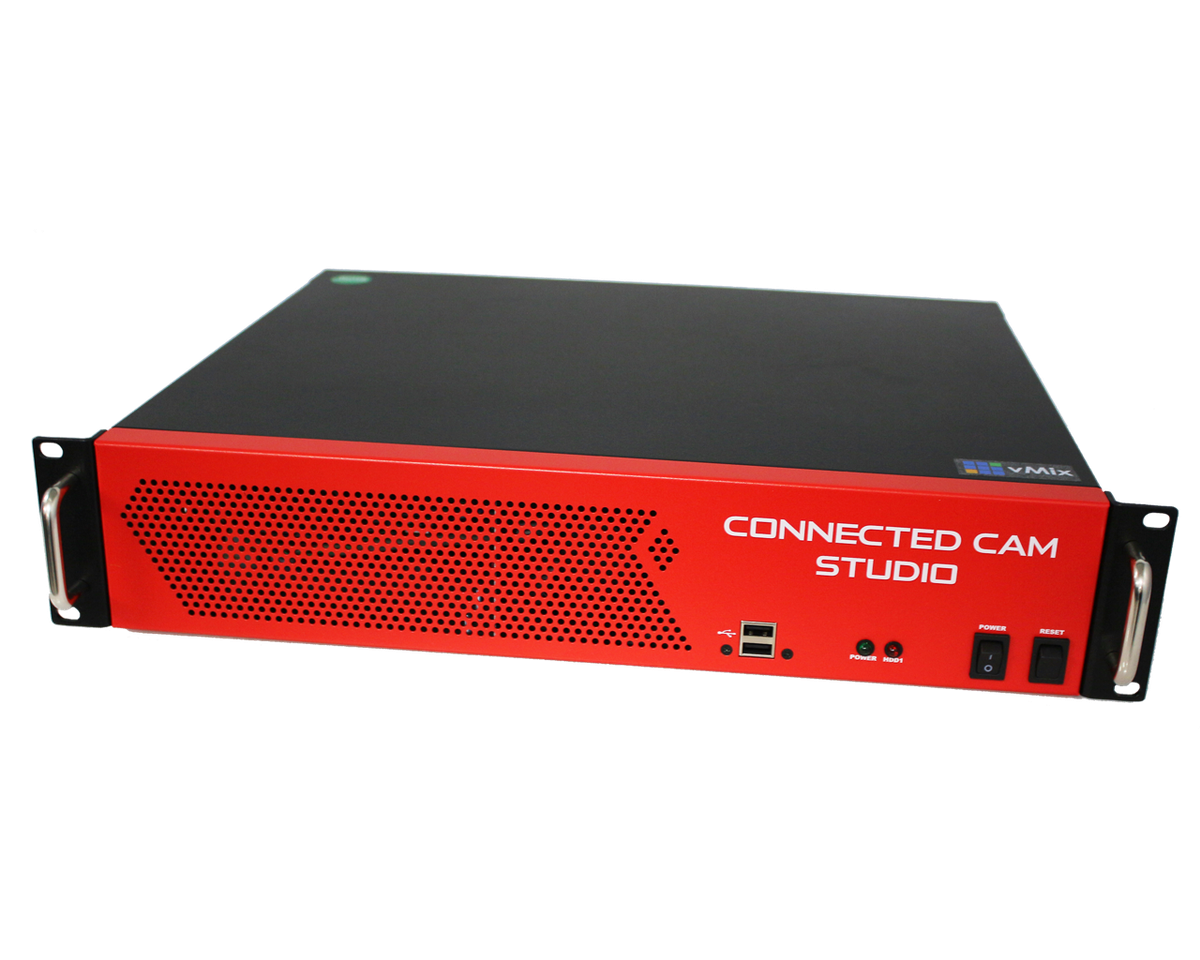

JVC KM-IP8

The KM-IP8 is a turnkey studio switcher built on licensed vMix 4K software, taking a minimum of eight NDI HX inputs at 1080p60. Beyond NDI it also ingests SRT, RTSP, RTMP/VLC, and UDP streams, so a production can mix JVC PTZ cameras, Connected Cam camcorders, and remote contributors on one timeline. Four downstream keyers, ten overlays, and chroma key handle graphics and virtual sets, while built-in PTZ control and a web remote let a small crew run the whole show.

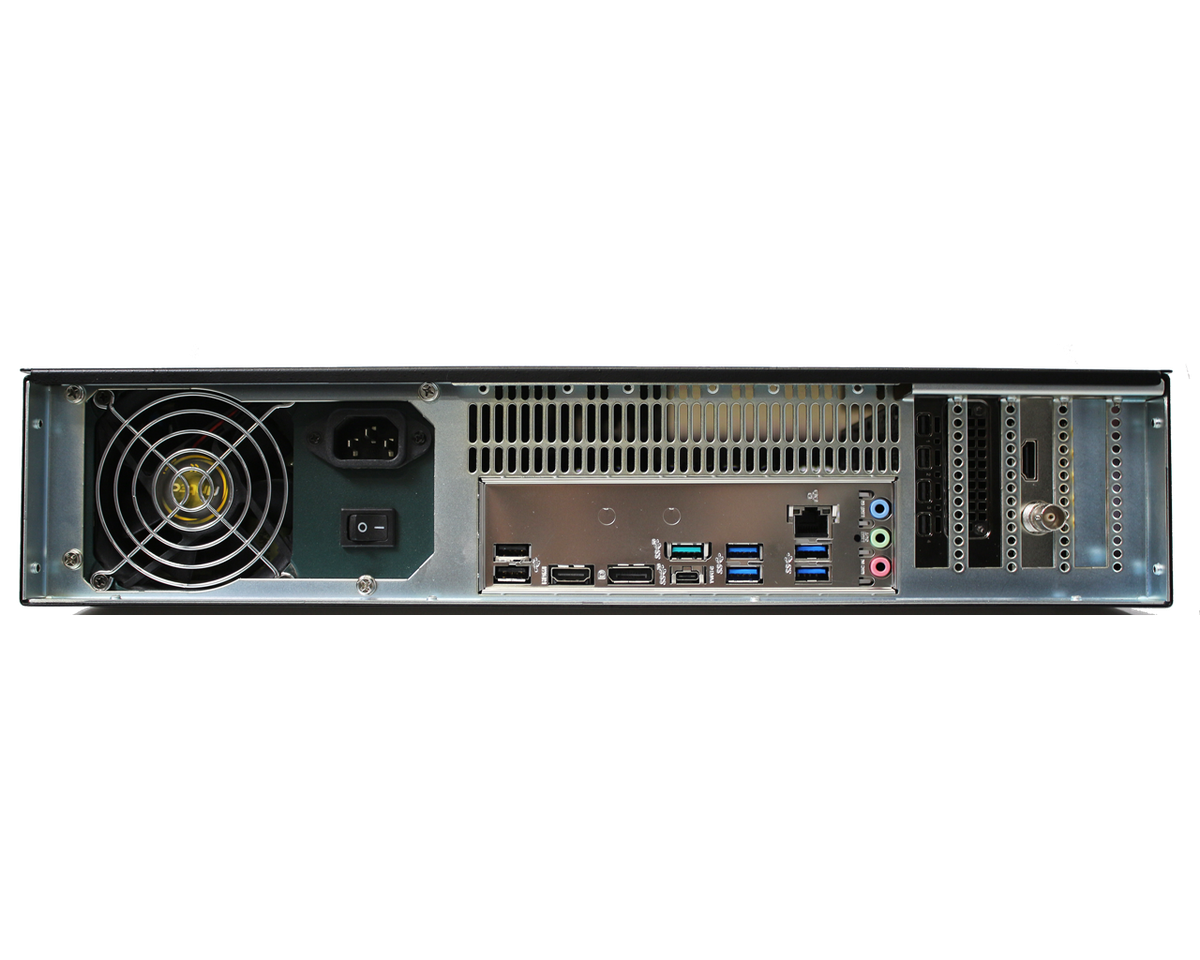

Four DisplayPort outputs feed the GUI, preview/program, multiview, and aux monitors, and a 3G-SDI and an HDMI output carry embedded-audio program to downstream gear. Network output covers NDI, SRT, and RTMP/S in H.264 or H.265. An internal 500GB SSD records every input as an ISO file and enables instant replay, so highlights and clean angles are always recoverable after the fact.

Type	vMix 4K studio switcher
Inputs	8x NDI HX at 1080p60 (plus SRT/RTSP/RTMP/UDP)
SDI / HDMI Output	1x 3G-SDI, 1x HDMI with embedded audio
GUI Outputs	4x DisplayPort (GUI, PVW/PGM, multiview, aux)
Network Output	NDI, SRT, RTMP/S; H.264 / H.265
Production	4 downstream keyers, 10 overlays, chroma key, PTZ control
Recording	ISO recording and instant replay, 500GB internal SSD
