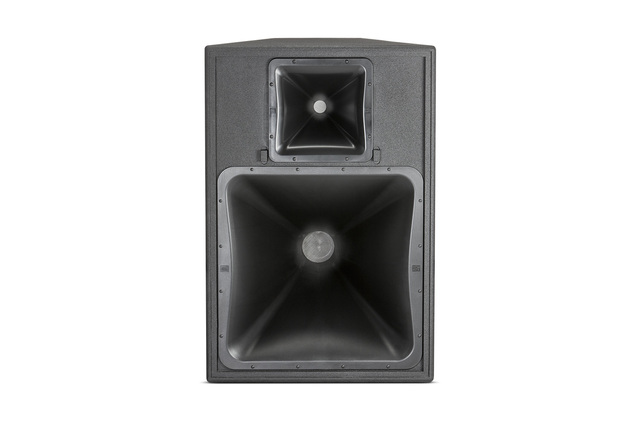

JBL PD6200/43 8-inch 2-Way Horn-Loaded Speaker with 40 degrees x 30 degrees Horn

The PD6200/43 is a 8-inch 2-Way horn-loaded speaker with 40 degrees x 30 degrees horn, from the Precision Directivity install range. High frequencies come from 2432H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil. Nominal coverage is /43: 40 degrees x 30 degrees /64: 60 degrees x 40 degrees /66: 60 degrees x 60 degrees /95: 90 degrees x 50 degrees. Frequency range is 200 Hz to 18 kHz. JBL rates it at Passive Mode: 300 W (1200 W peak), 100 hrs. (IEC rated). Maximum SPL at 1 m is Bi-amp mode: MF: 137 dB-SPL cont avg (143 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: 136 dB-SPL cont avg (142 dB peak).

The enclosure is Trapezoidal with 15 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood. The grille is Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units). Finish is Black DuraFlex finish. White (-WH) available upon request. Crossover: Bi-amp / Passive switchable. Rigging: 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories). Environmental rating: Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
