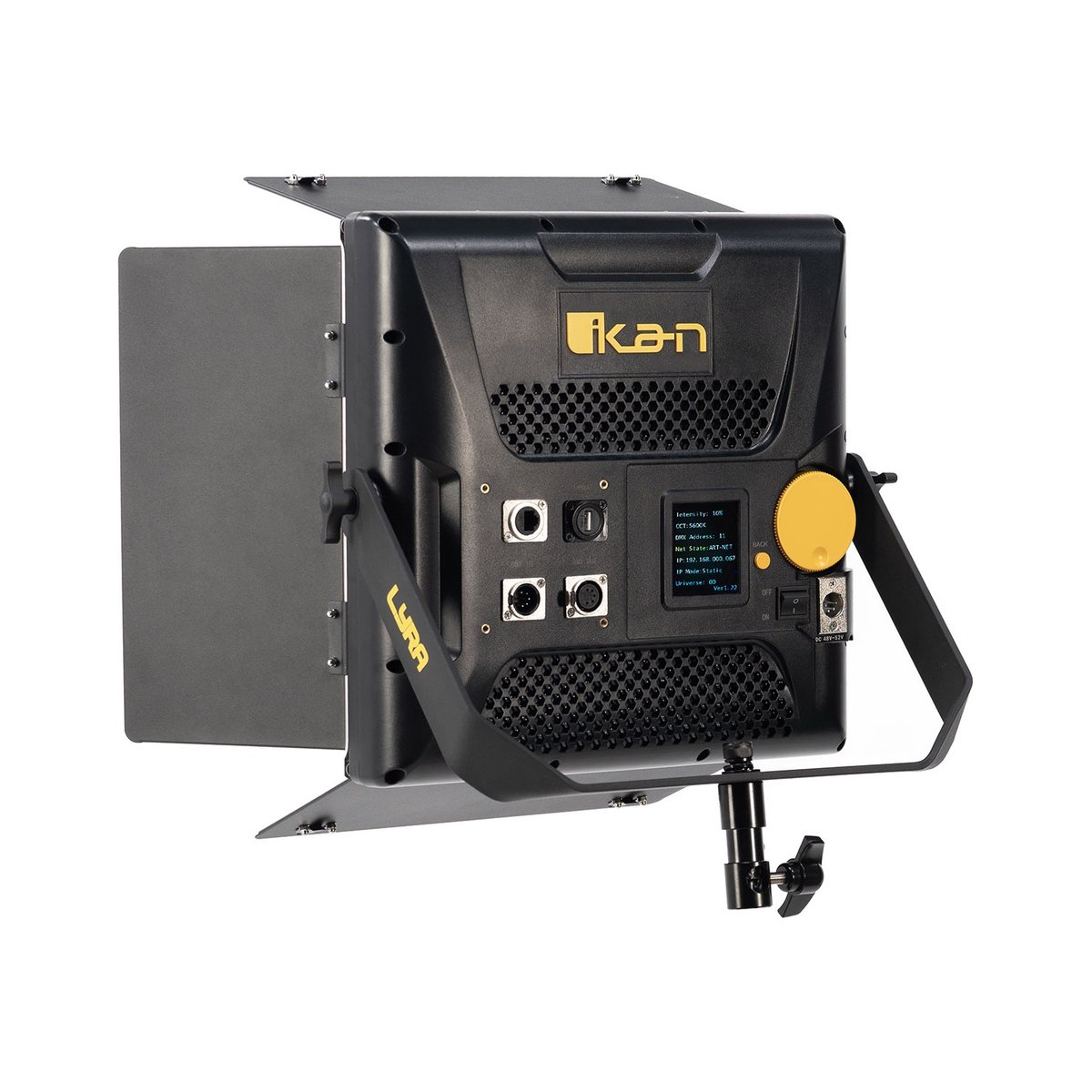

Ikan LBX10-POE-5L-1S PoE++ Lighting Kit

The LBX10-POE-5L-1S is a turnkey studio lighting kit built around five Lyra LBX10-POE low-profile bi-color soft panels and a Netgear Ultra90 802.3bt 720W PoE++ switch. Each fixture draws up to 85 watts of power and receives its DMX control over a single Cat 6 Ethernet run, so a set can be wired with structured cabling instead of separate power and data lines. The fixtures are silent and fanless, which keeps them out of the audio on a live broadcast or podcast stage.

Color is adjustable across the 3200K to 5600K bi-color range with a 97 CRI and 99 TLCI, delivering accurate skin tones on camera, and each panel puts out up to 2421 lux at 3.3 feet with a soft 110 degree spread through an integrated half-stop diffuser. The panels speak Art-Net and sACN DMX-over-IP for control from a lighting console or network controller. A Cat 6 RJ45 24AWG or better run is required per fixture and is not included.
