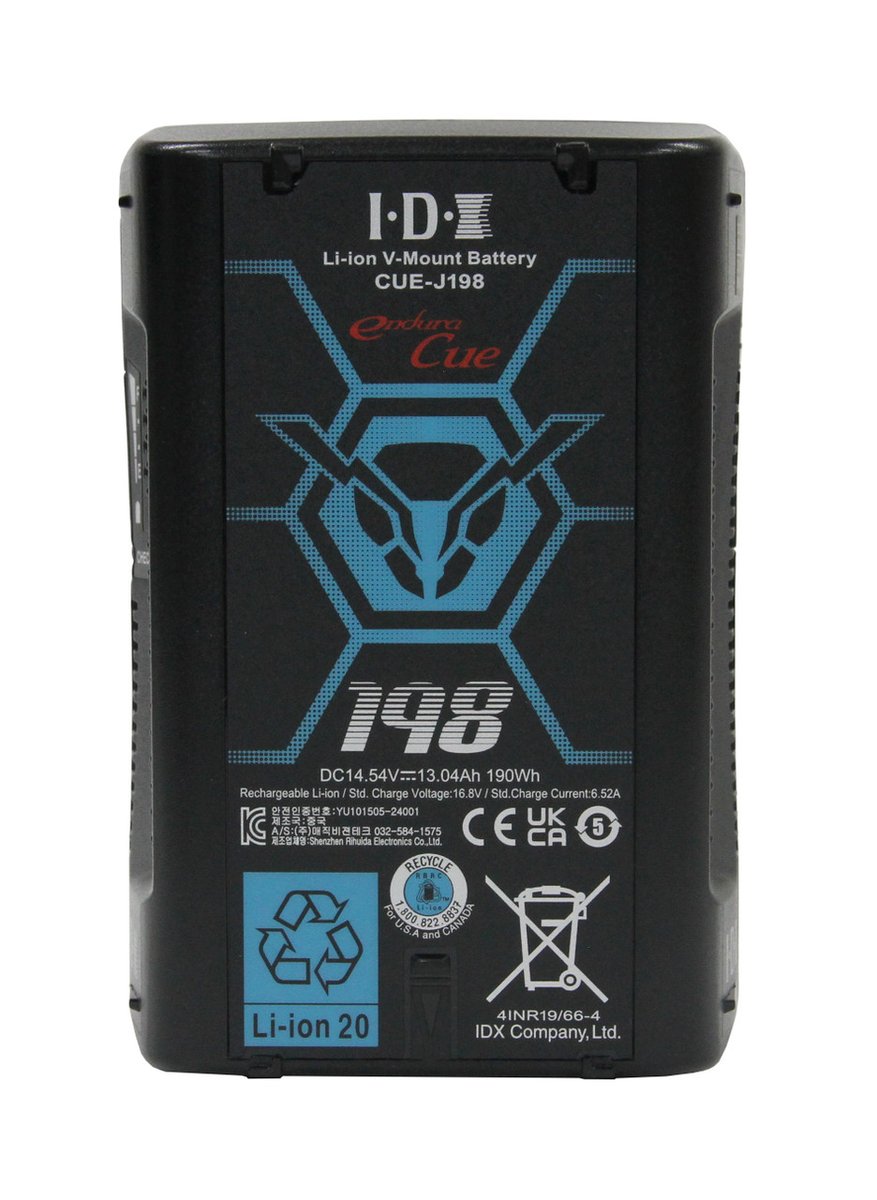

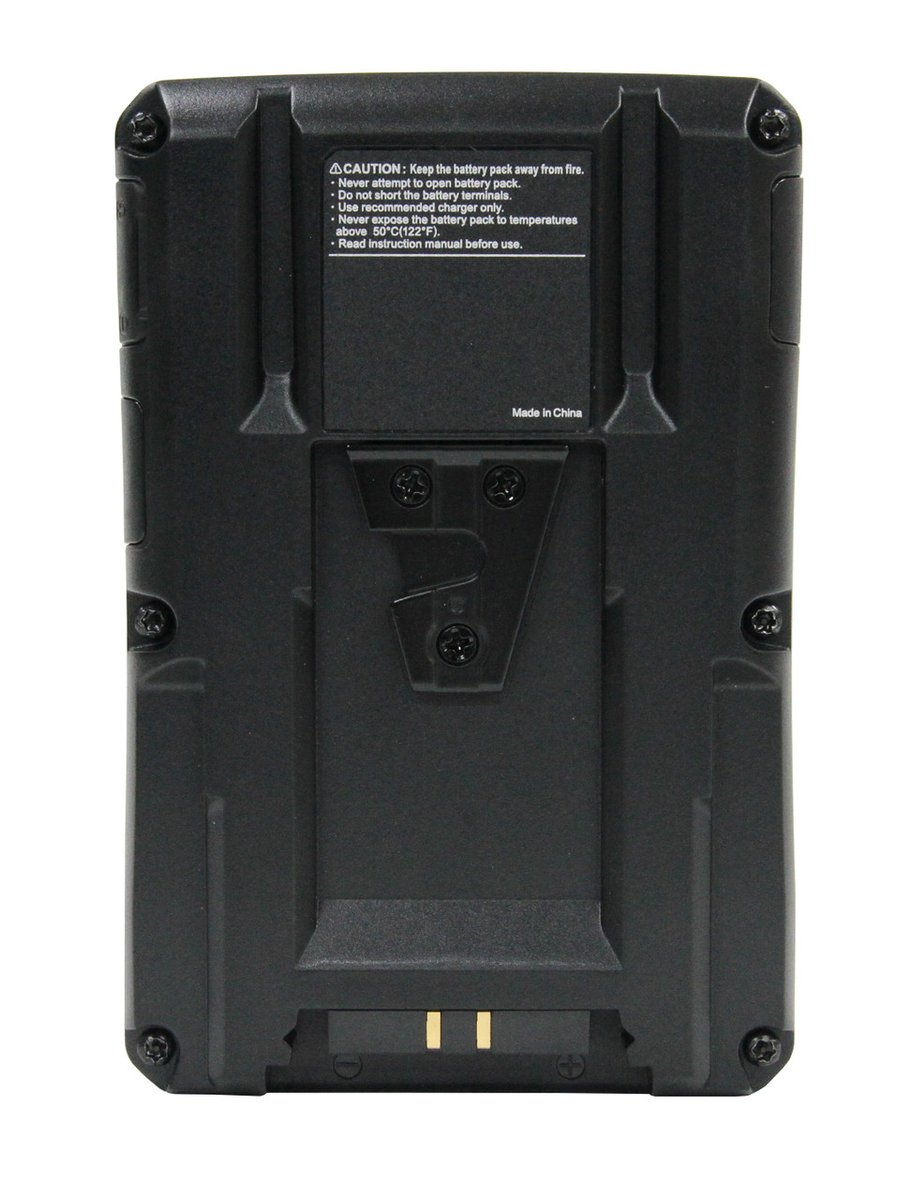

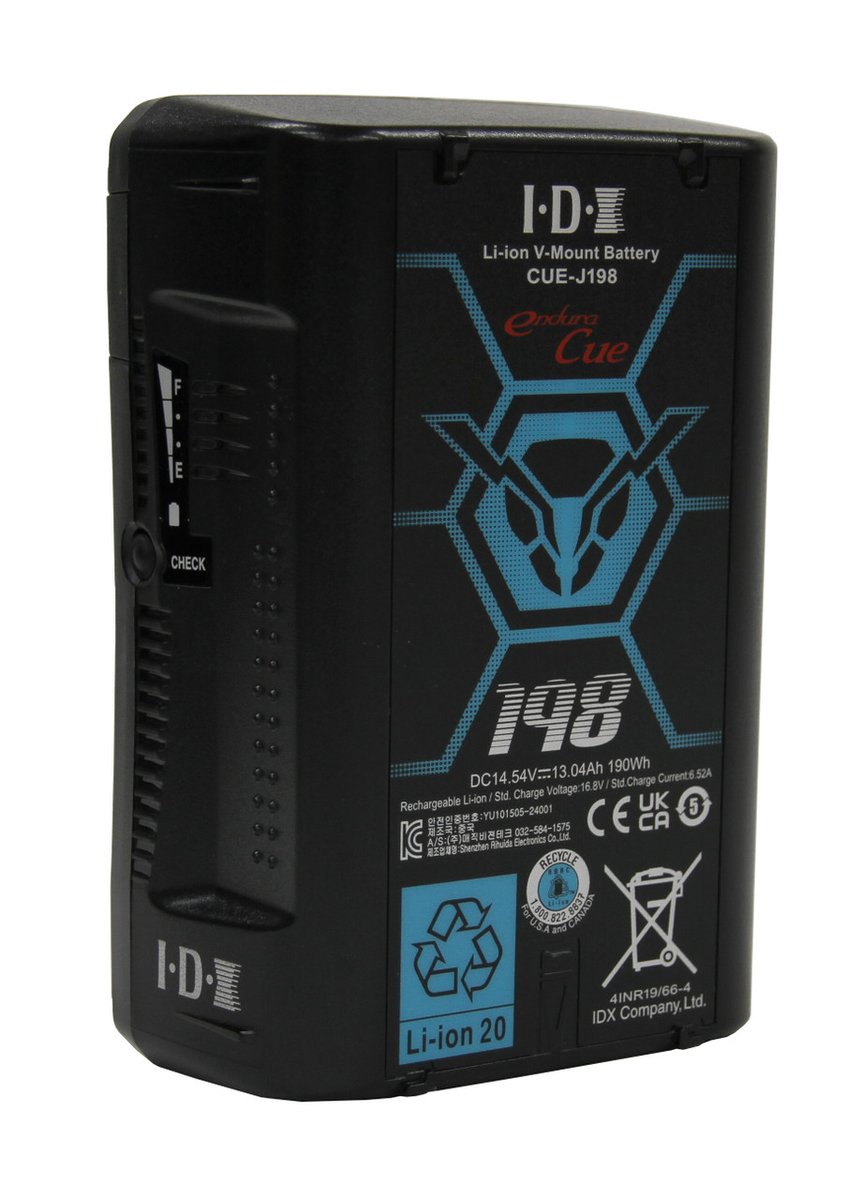

IDX CUE-J198 190Wh V-Mount Battery

The CUE-J198 rounds off the CUE-J V-Mount series at 190Wh, the size to reach for when a monitor, a wireless link and a light are all hanging off the same plate and a mid-day battery change is not welcome.

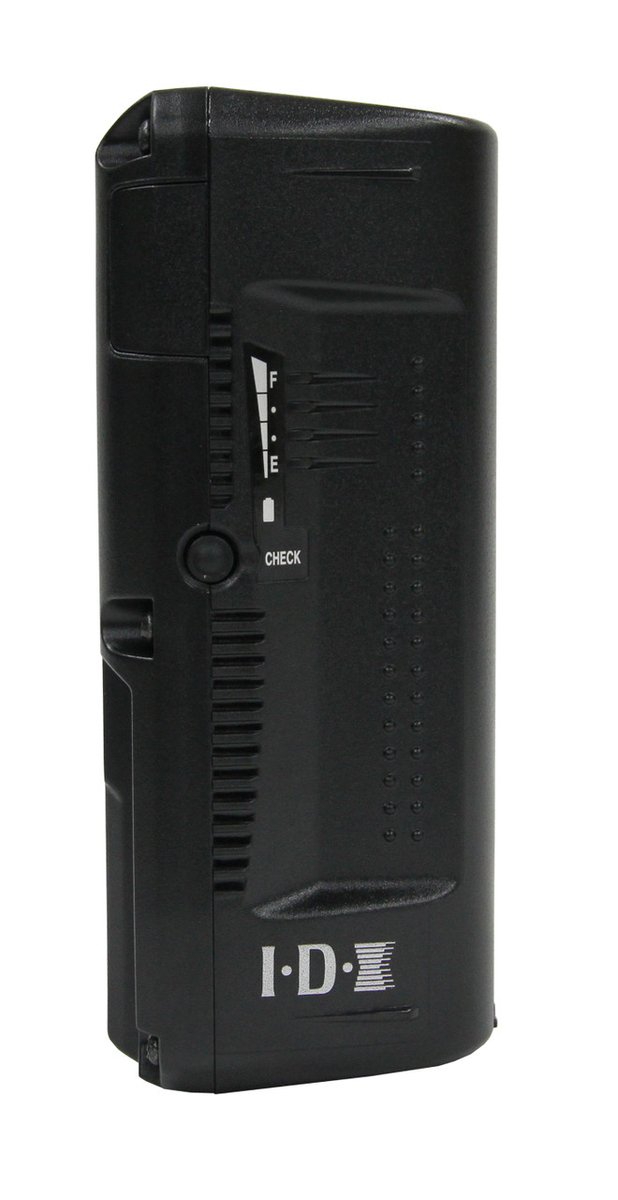

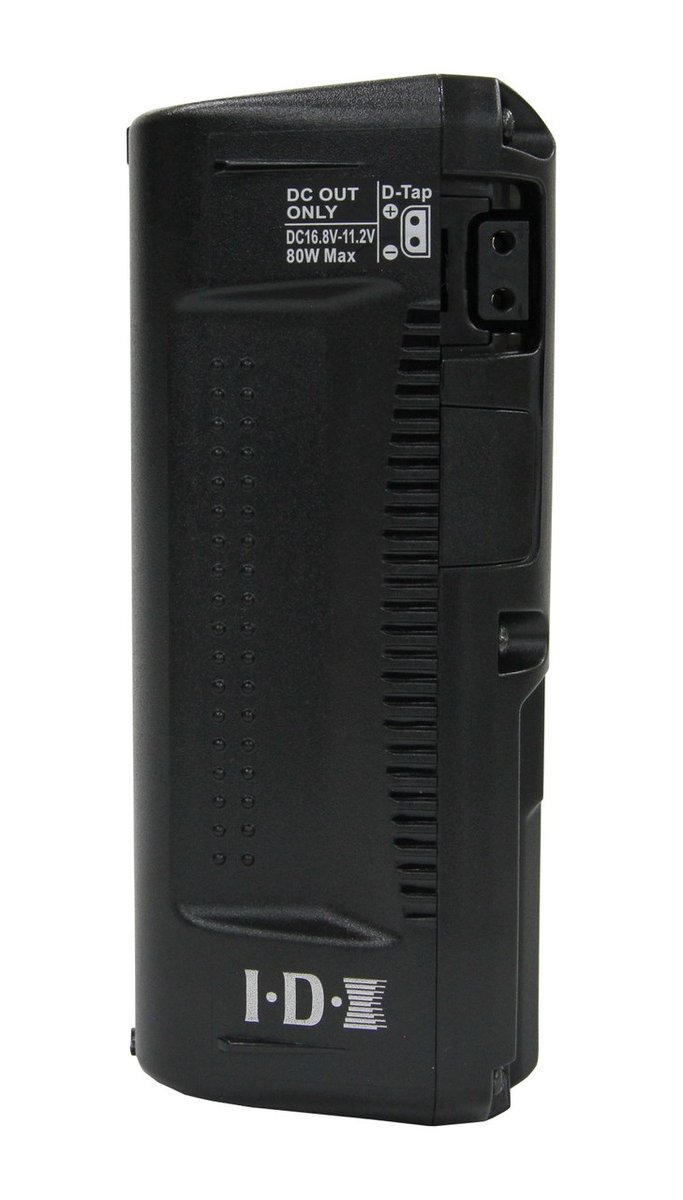

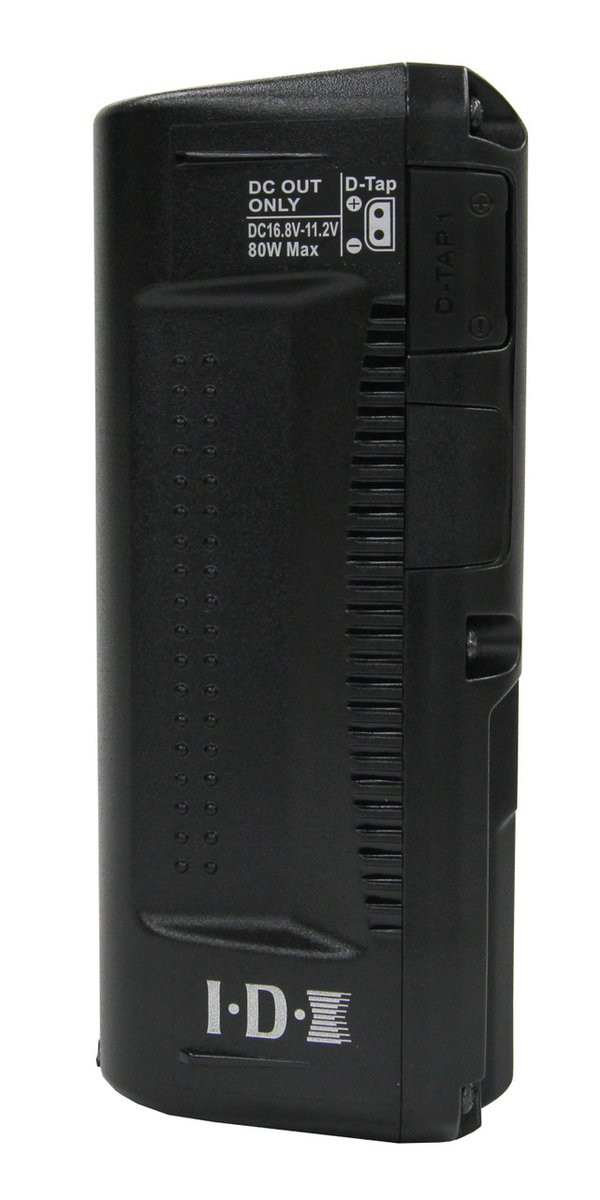

Like the rest of the series it has a single built-in D-Tap output rated for an 80W load and a four-LED power indicator, with over charge, over discharge and over current protection in the cell circuitry. Maximum output voltage is 16.8V, nominal 14.54V, end voltage 11.2V, and maximum draw is 13.9A. The pack weighs 2.38 lbs.

Capacity	190 Wh
Mount	V-Mount
Max Output Voltage	16.8V
Nominal Voltage	14.54V
Max Draw	13.9 A
Power Outputs	1 x 80W D-Tap
End Voltage	11.2V
Protection	Over charge, over discharge, over current
Indicator	4-LED power gauge
Weight	2.38 lbs
