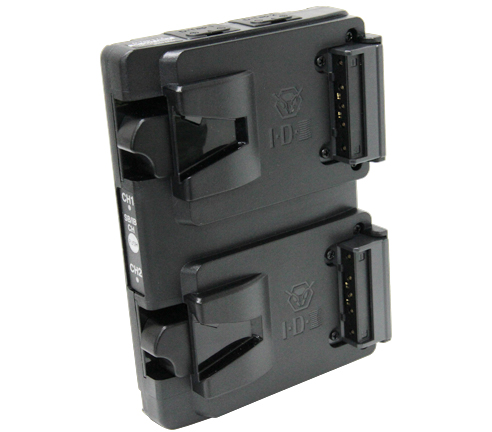

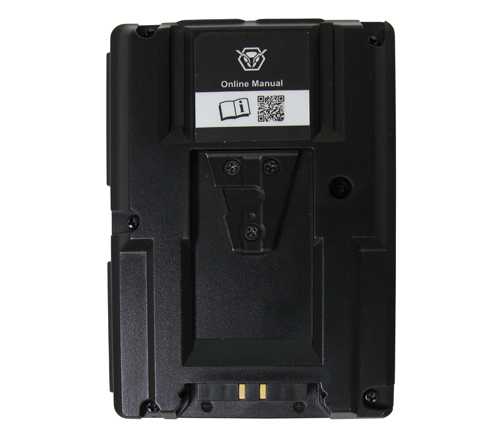

IDX A-Vmicro2 Two-Battery Imicro Hot-Swap Adapter

The A-Vmicro2 carries two Imicro packs and draws from one at a time, changing over on its own when the active pack runs down. The camera never sees the gap, so a shoot can run past the end of a battery without a power cycle, and the spent pack can be replaced while the other is working.

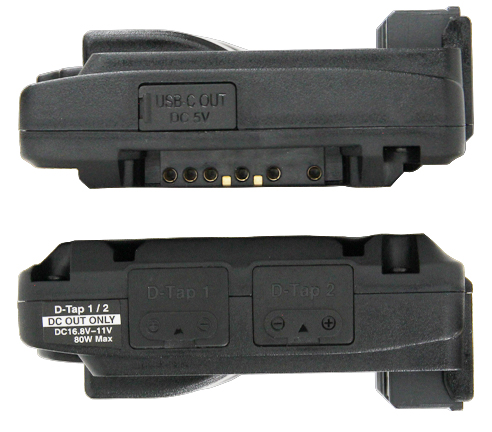

Outputs are two D-Taps at battery through voltage up to 80 W, plus a USB-C at 5 V 2.3 A for a monitor or a recorder. A long press on the changeover button selects IB mode for IDX BMS gear or SB mode for SMBus gear, so remaining capacity reads correctly on whichever system is downstream. Packs charge in place on an IDX charger.
