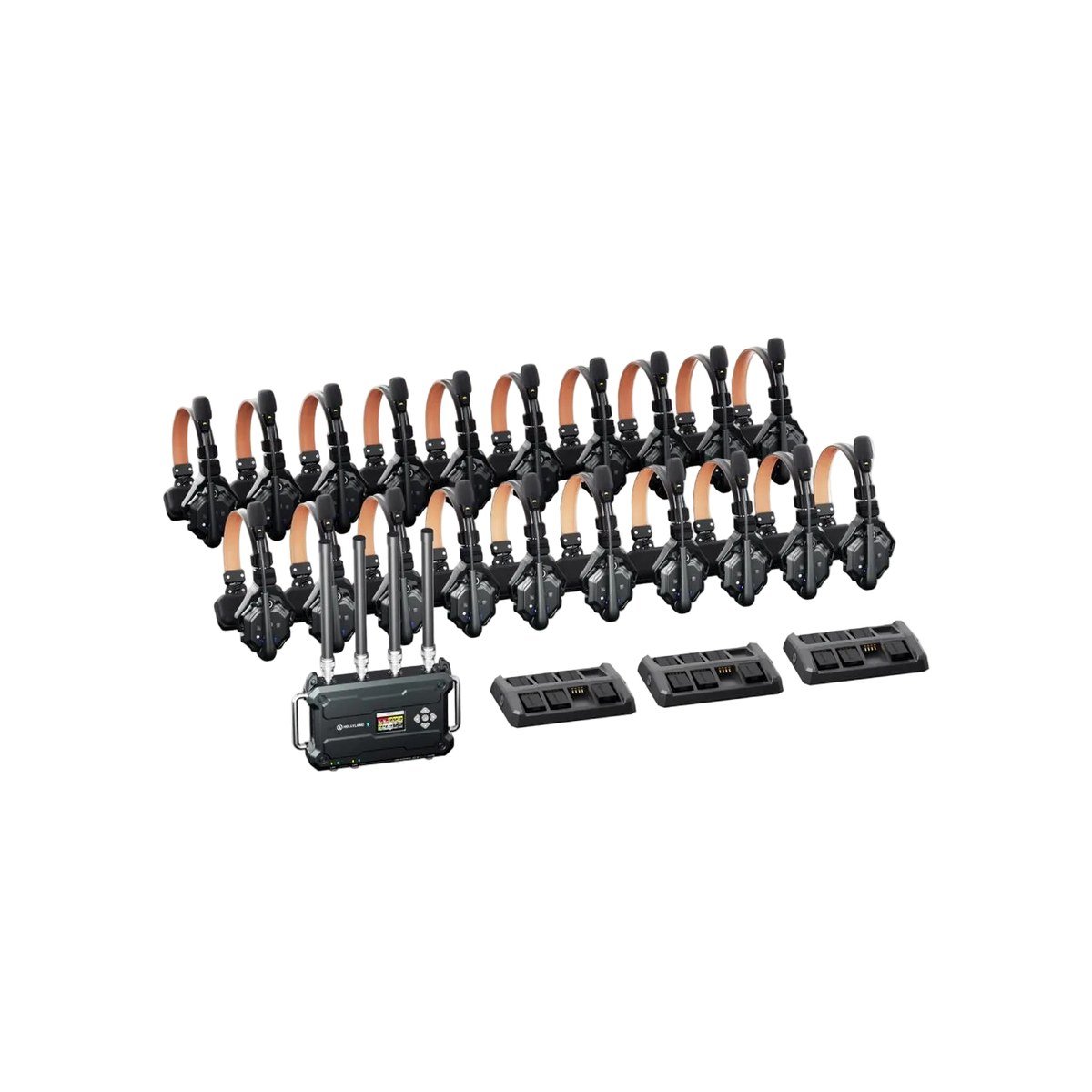

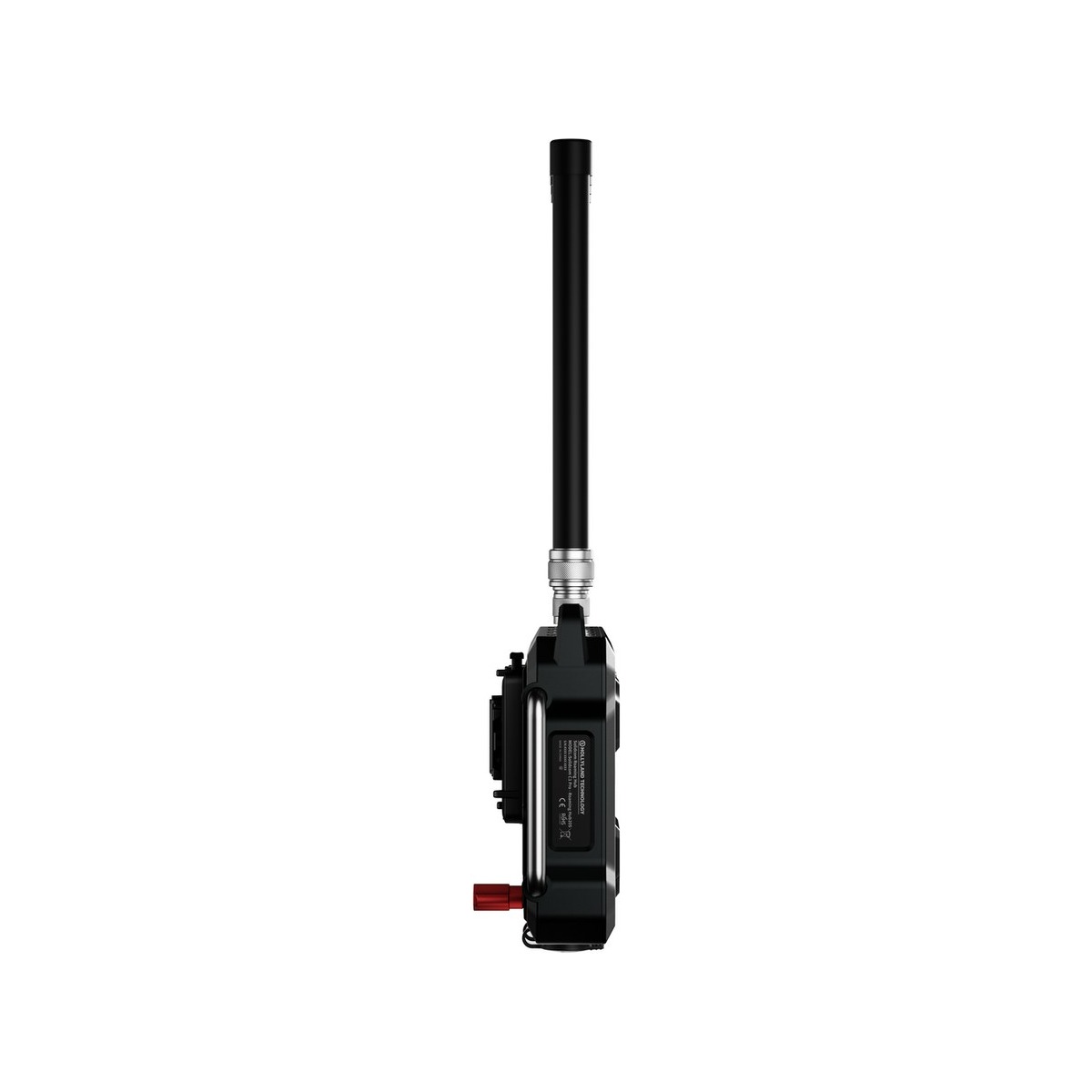

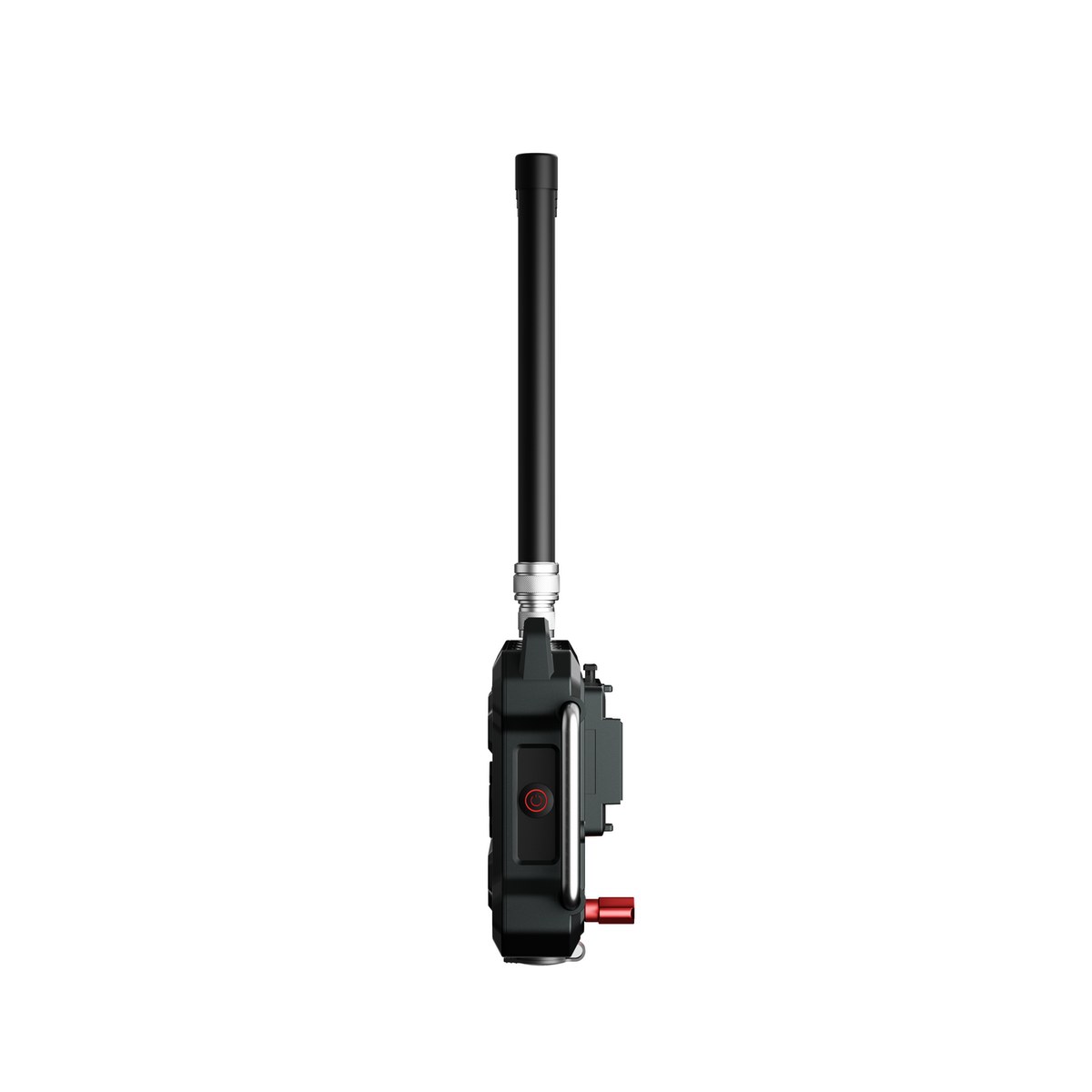

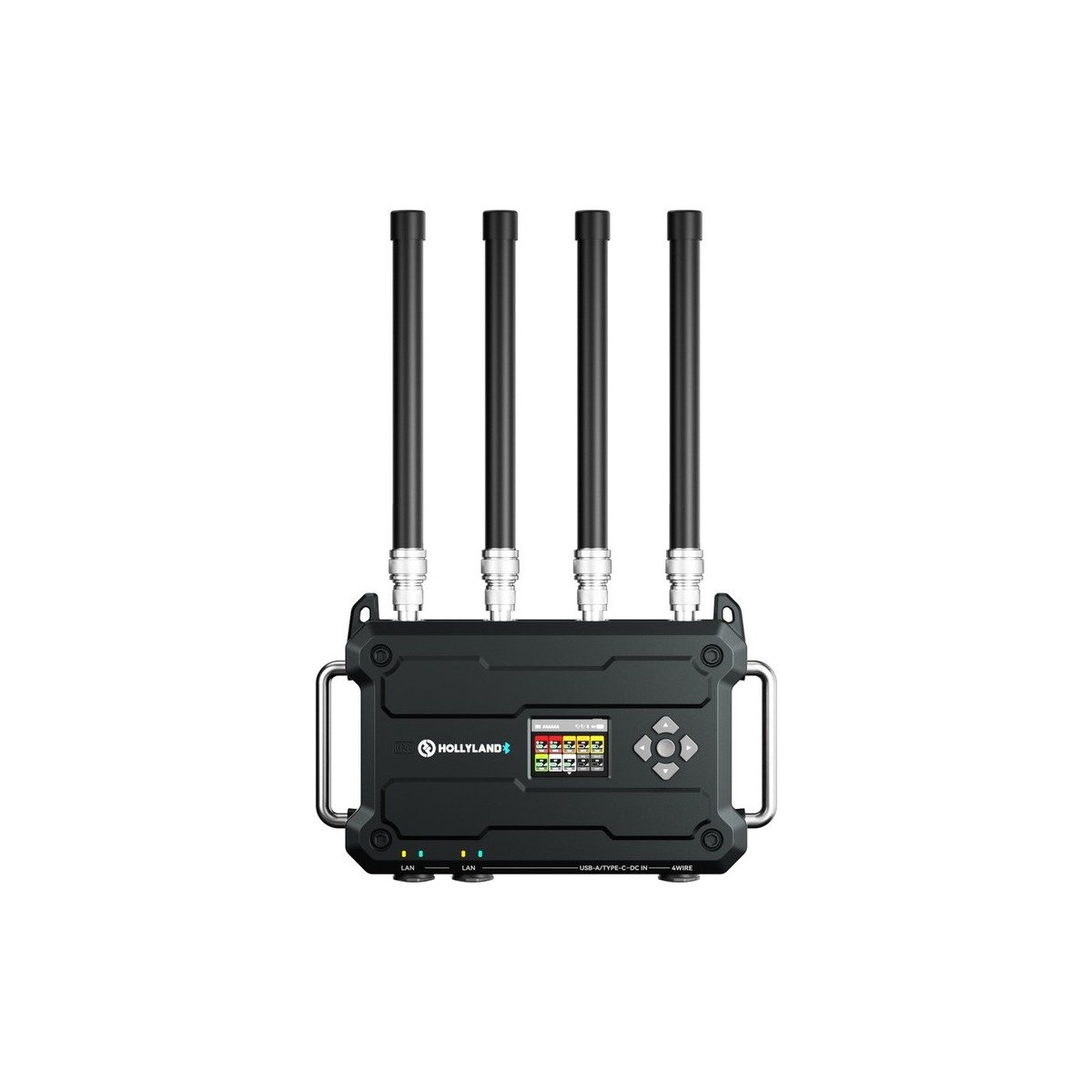

Hollyland Solidcom C1 Pro Roaming Hub Wireless Intercom System
The Roaming Hub is what takes Solidcom C1 Pro past the range of a single base. Hubs cascade over their expansion interfaces and hand a headset from one hub to the next as the wearer walks, so a crew spread across a stadium concourse, a multi-room venue or a long outdoor site stays on one full-duplex circuit instead of falling off the edge of a cell. Each hub covers 1,600 ft (500 m) line of sight on its own.

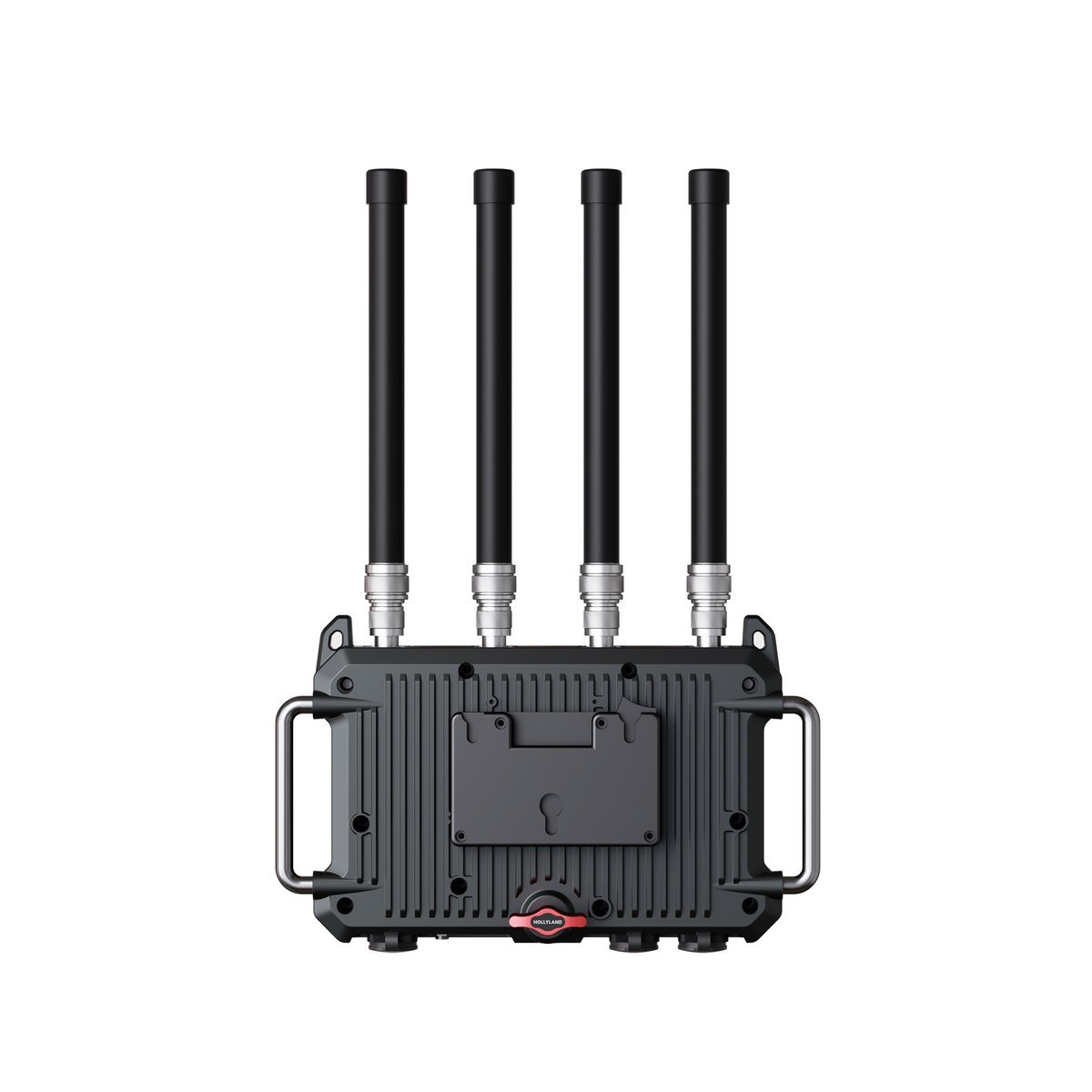

It runs on 7 to 30 V DC, or off a V-mount or G-mount battery at 11 to 30 V, which is what lets a hub go up on a stand away from mains power. A USB UAC function brings the intercom audio into a computer for recording or streaming without a separate interface. The unit is 302 x 181.52 x 63.6 mm and weighs 1797.5 g. Choose the mount type to match the batteries already in your kit: the G-mount and V-mount versions are otherwise identical, and the 10S and 20S configurations scale the headset count the system supports.
| Range | 1,600 ft (500 m) line of sight |
|---|---|
| Operating Frequency | 1920 - 1930 MHz (USA and Canada); allocation varies by region |
| Transmit Power | 21 dBm maximum |
| Bandwidth | 1.728 MHz |
| Modulation | GFSK |
| Frequency Response | 100 Hz - 7 kHz (+/- 3 dB) at 1 kHz |
| Receiver Sensitivity | -90 dBm maximum |
| Signal to Noise Ratio | Greater than 55 dB |
| Antenna Gain | 4 dBi, all directions |
| DC Input | 7 - 30 V, under 1 A at 12 V |
| Battery Mount Input | V-mount or G-mount, 11 - 30 V, under 1 A at 12 V |
| Dimensions | 302 x 181.52 x 63.6 mm |
| Weight | 1797.5 g (63.4 oz) |
| Temperature Range | -10 to 45 C working, -20 to 60 C storage |
