Hear Technologies PRO Hub Analog Input Card

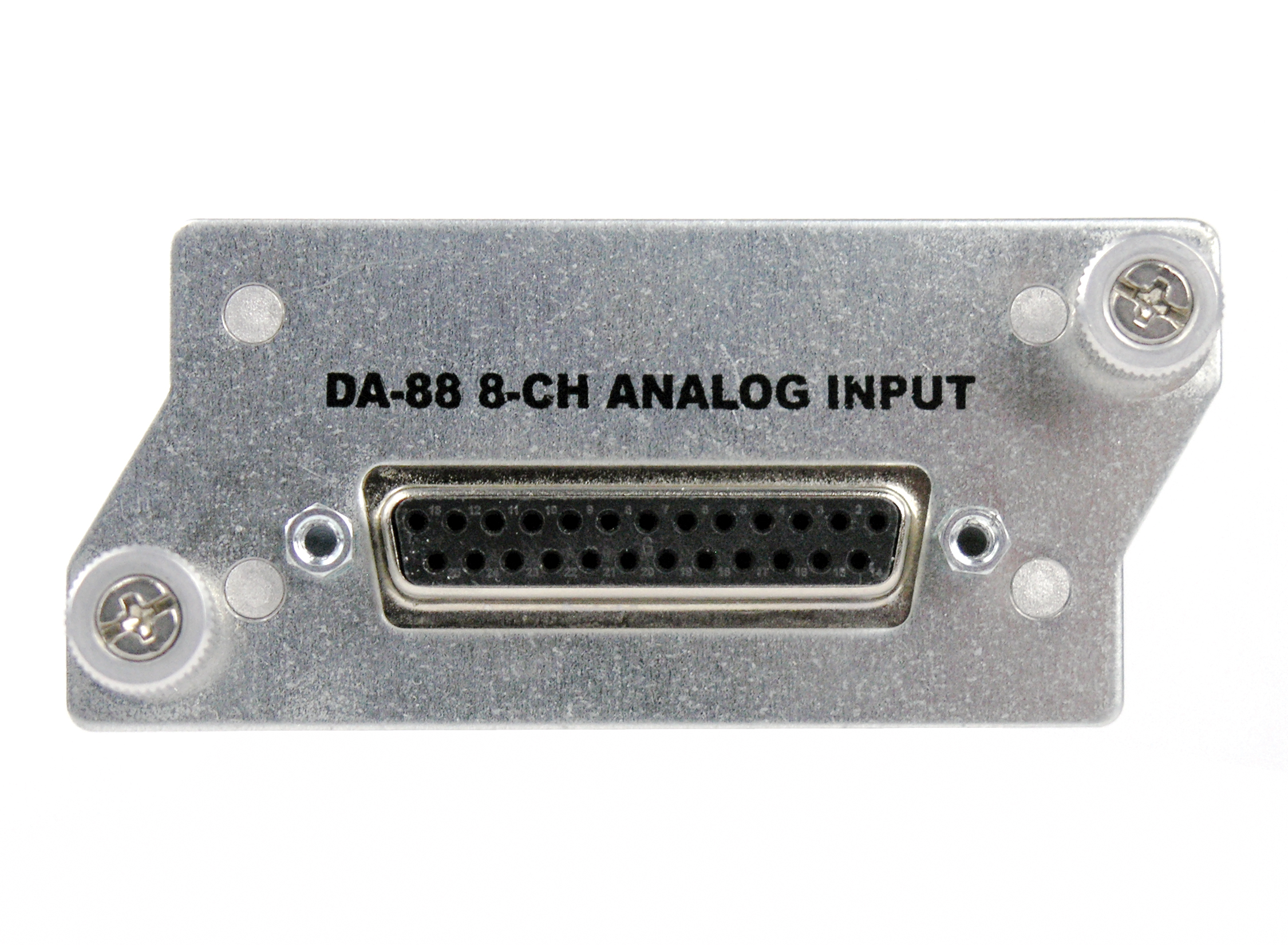

The PRO Hub Analog Input Card feeds a Hear Back PRO Hub eight balanced analog inputs on a DB-25 female connector wired to the DA-88 pinout, one of six protocols that populate the Hub's four card slots alongside ADAT, AES/EBU, Dante, Waves SoundGrid, and MADI. Maximum input level is +8 dBu with the card's pad jumpers populated, or +18 dBu with the jumpers removed, and the card runs sample rates up to 192 kHz.

A DB-25 to eight 1/4-inch TRS breakout cable is sold separately unless bundled with the card. Two analog cards are required to bring in a full 16 channels; up to four cards can populate a single Hub to allow A/B input switching between two sources.
