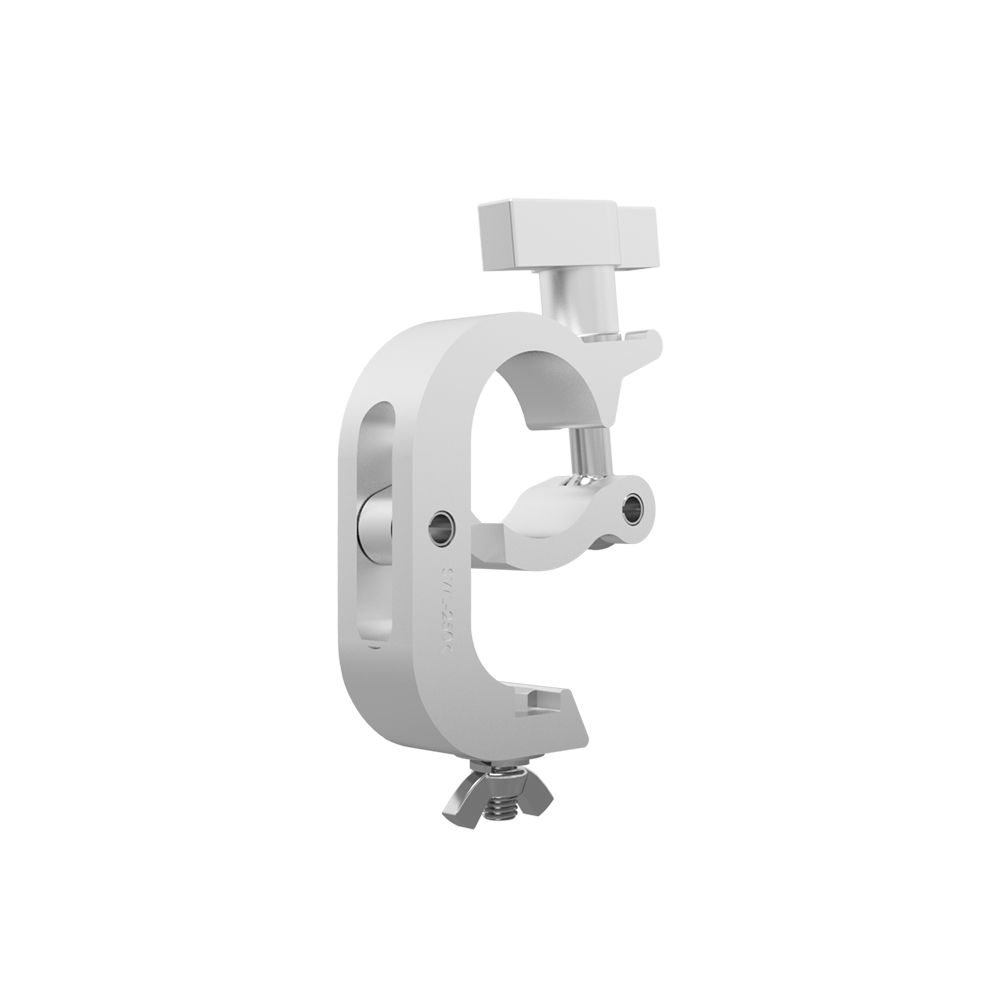

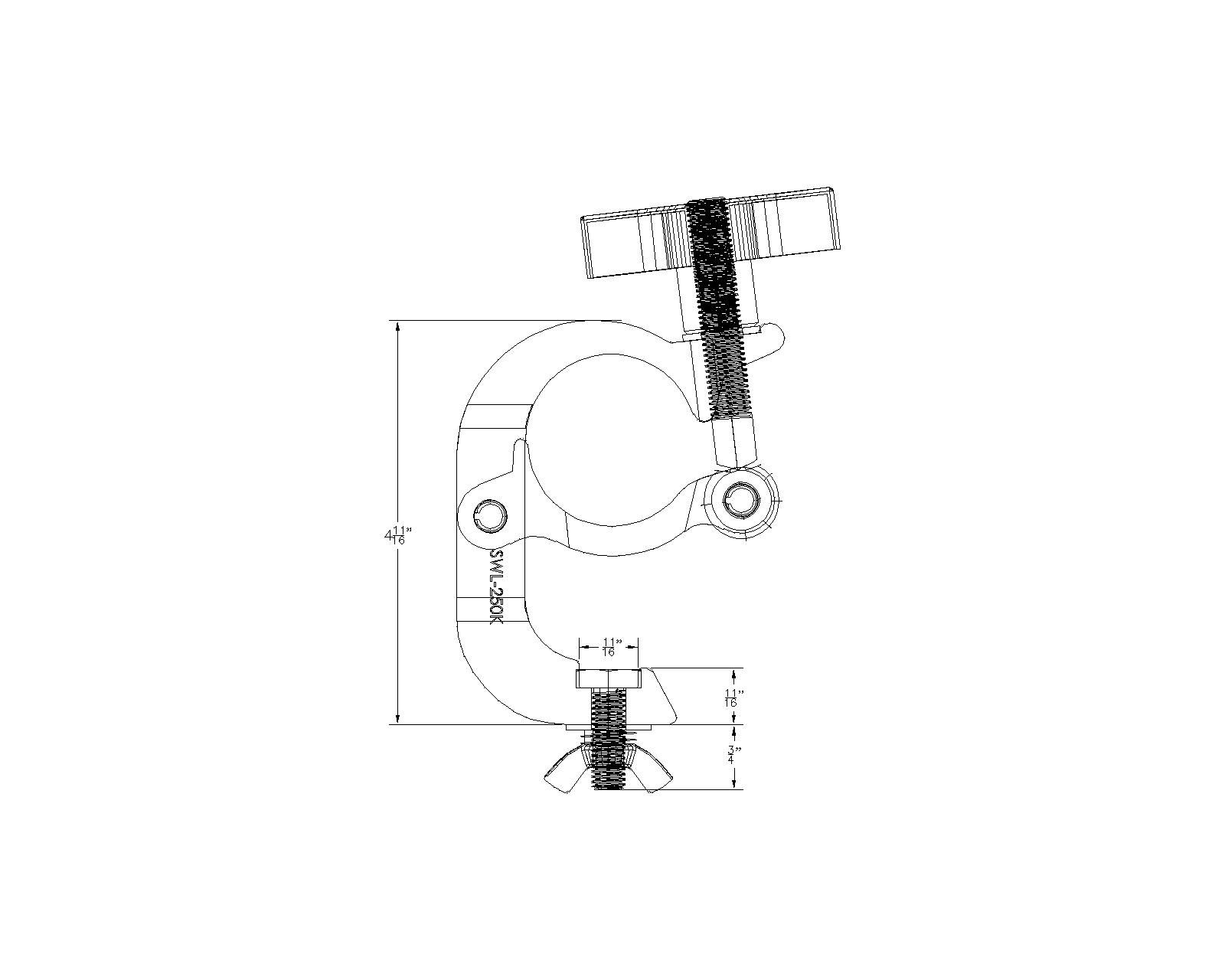

Global Truss Trigger Clamp

Narrow hook-style wrap-around clamp with T-handle for 2 inch tube. It is built for F31, F32, F33, F34 and DT44P truss.

Manufacturer part number CLM0729. Rated load capacity is 250 kg / 550 lbs. Unit weight is 1.02 lbs.

Compatible WithF31, F32, F33, F34 and DT44P truss
Minimum Tube Size48mm
Maximum Tube Size51mm
Maximum Load250 kg / 550 lbs
Profile Width30mm
Bolt SizeM10 x 30mm, 1.5 coarse thread pitch
Unit Weight1.02 lbs
Case Qty25
