FXLION MEGA BATTERY - 28V / 620Wh

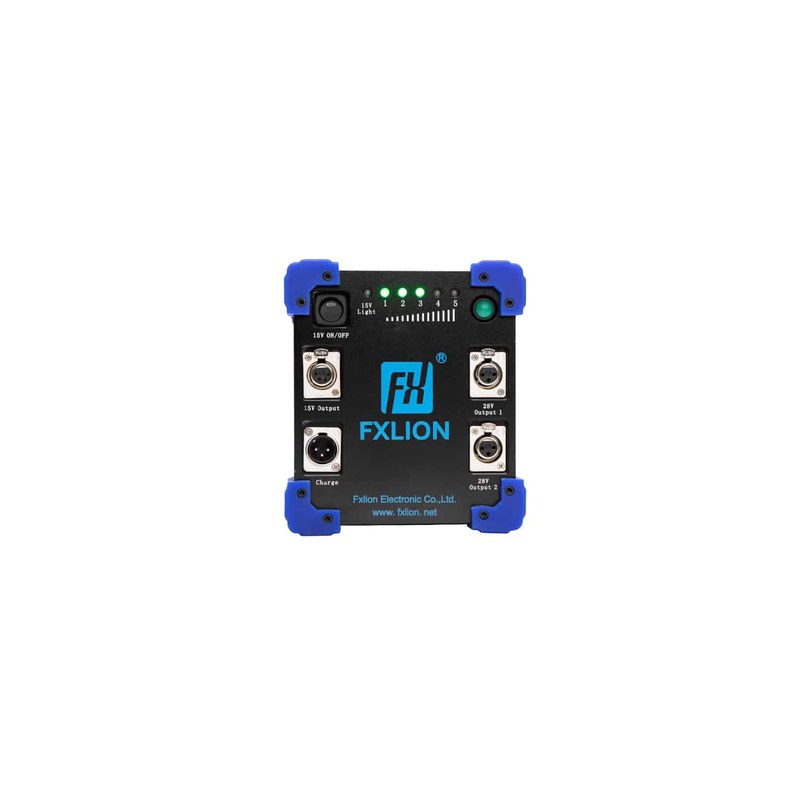

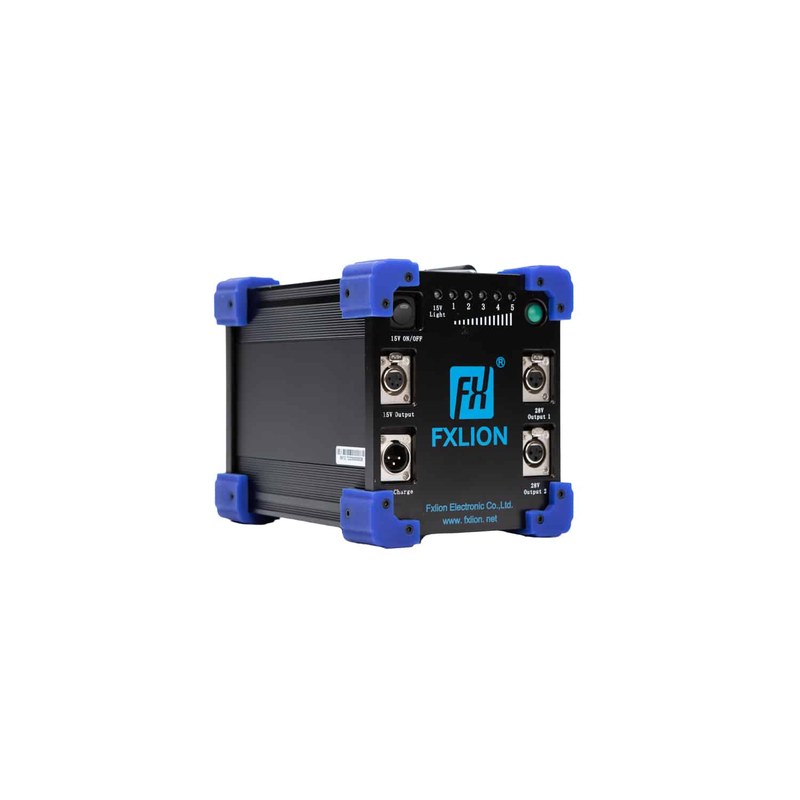

The MEGA BATTERY is the block you bring when a camera battery is not the answer: 620Wh of storage, two 28V outputs rated 40A maximum and a third at 15V/8A, all usable at the same time. That is enough current for high-power LED fixtures and the rest of a location package running off one pack, which is the difference between a generator call and a cart.

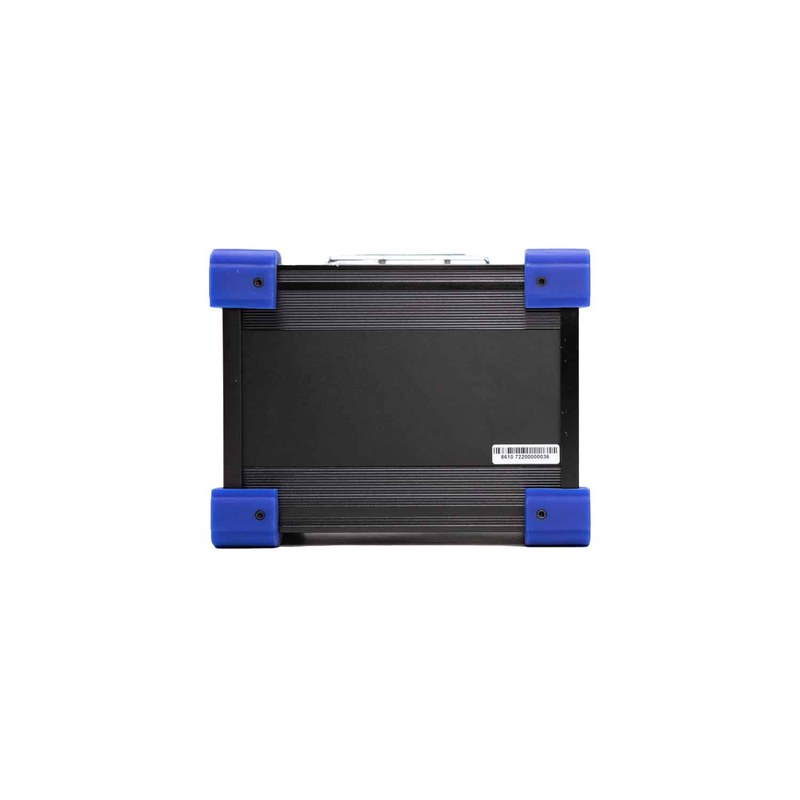

The cells are the high-discharge li-ion type used in electric vehicles, and they hold up in the cold: FXLION rates 60% of capacity available at -30 C, against a working range of -30 C to +55 C. A high-power protection chip covers overcharge, over-discharge, over-heat and over-current, and the cells have no memory effect, so partial charges do not cost capacity over a season. A thick rubber sheath takes the knocks that a battery this size collects on site. Charge it with the PL-7115 charger, which fills it in about five hours.
| Type | MEGA BATTERY high-power block battery |
|---|---|
| Manufacturer Part Number | FX-HP-7224 |
| Capacity | 24Ah / 620Wh |
| Output 1 and Output 2 | 28V / 40A (Max) |
| Output 3 | 15V / 8A (Max) |
| Simultaneous Use | All outputs can be used at the same time |
| Cells | High-power li-ion, electric-vehicle type, no memory effect |
| Low Temperature | 60% capacity available at -30 C |
| Working Temperature | -30 C to +55 C |
| Protection | Overcharge, over-discharge, over-heat and over-current |
| Charger | PL-7115, approximately 5 hours |
