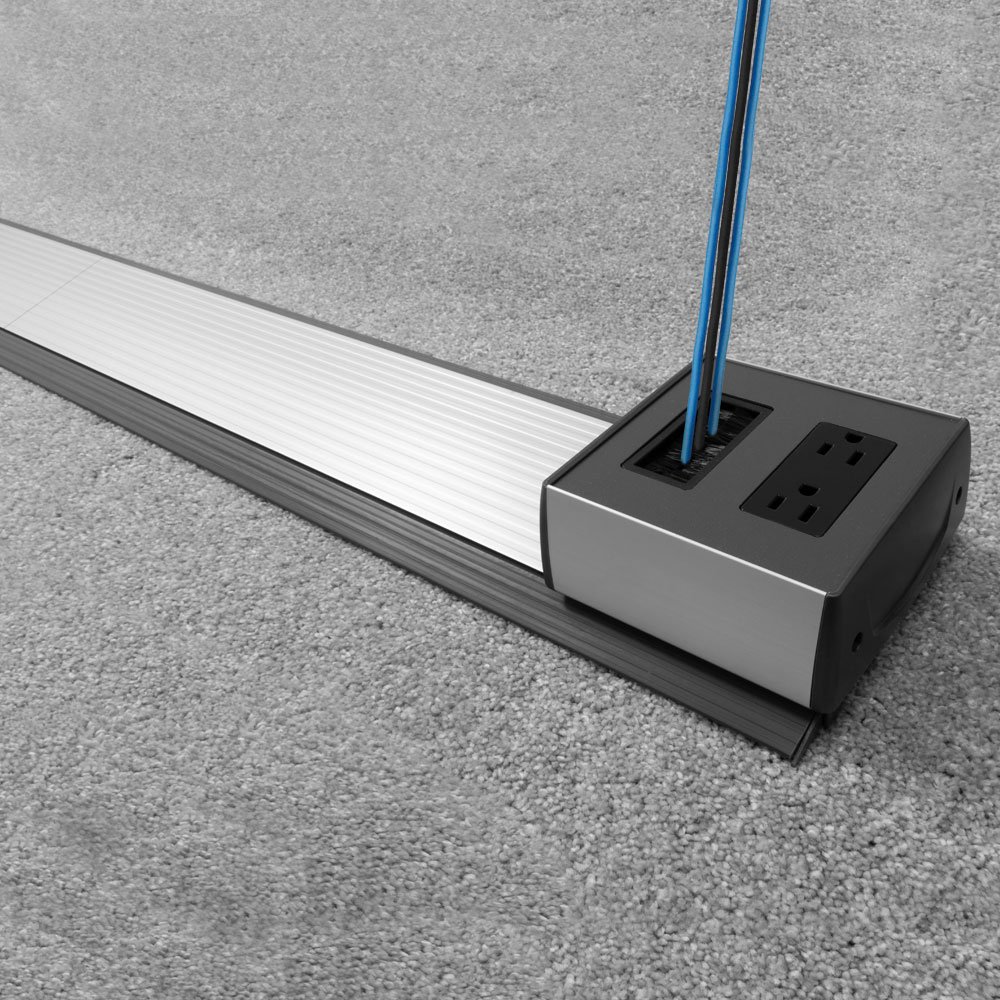

FSR Smart-Way 3-2-1 Snap Stick Raceway
The Snap Stick is the Smart-Way Stick with the length left open. It ships as sections that snap together on site, so the same part number becomes a 3, 4, 5 or 6 ft run depending on how far the outlet is from where people actually sit. Some assembly is required, which is the trade for not having to know the length at order time.
Three device box builds are offered: one duplex power with a data passage, two duplex power, and two duplex power with a pair of 5A USB C and USB A charging ports. Any of them can be ordered with the longer 15 ft cord, which is what the 15 in the part number means. All are circuit breaker protected, ADA compliant on top of existing flooring, and stocked in slate grey and bright aluminum.
| System | FSR Smart-Way Raceway System |
|---|---|
| Product Type | Field-assembled plug-in floor raceway |
| Assembled Lengths | 3 ft, 4 ft, 5 ft or 6 ft |
| Device Box Options | 1 power 1 data, 2 power, or 2 power with 2 USB |
| USB Ports | 5A USB C and USB A ports on the 2PUSB models |
| Cord Option | 15 part numbers ship with a 15 ft cord |
| Protection | Circuit breaker protected |
| Profile | ADA compliant, installs on top of any flooring |
| Finishes | Slate grey (SLT) and bright aluminum (ALM) |
