FSR 2x1 HDMI Auto-Switchers with CEC

These are the two-source switchers that live inside a table box rather than in a rack. Both auto-sense, both take CEC so the display wakes on its own, and both give LED feedback back to a contact closure panel so a button on the table lights when it has done something.

Choose by what is on the table. The DV-HSW-21CEC is two HDMI inputs for a room where every source is modern. The DV-MFSW-21CEC keeps one HDMI and one VGA, and folds the VGA's analogue audio onto the HDMI output so the legacy source arrives with sound. Both fit FSR's HuddleVU T3 dual table boxes.

Product Type2x1 auto-switcher with CEC

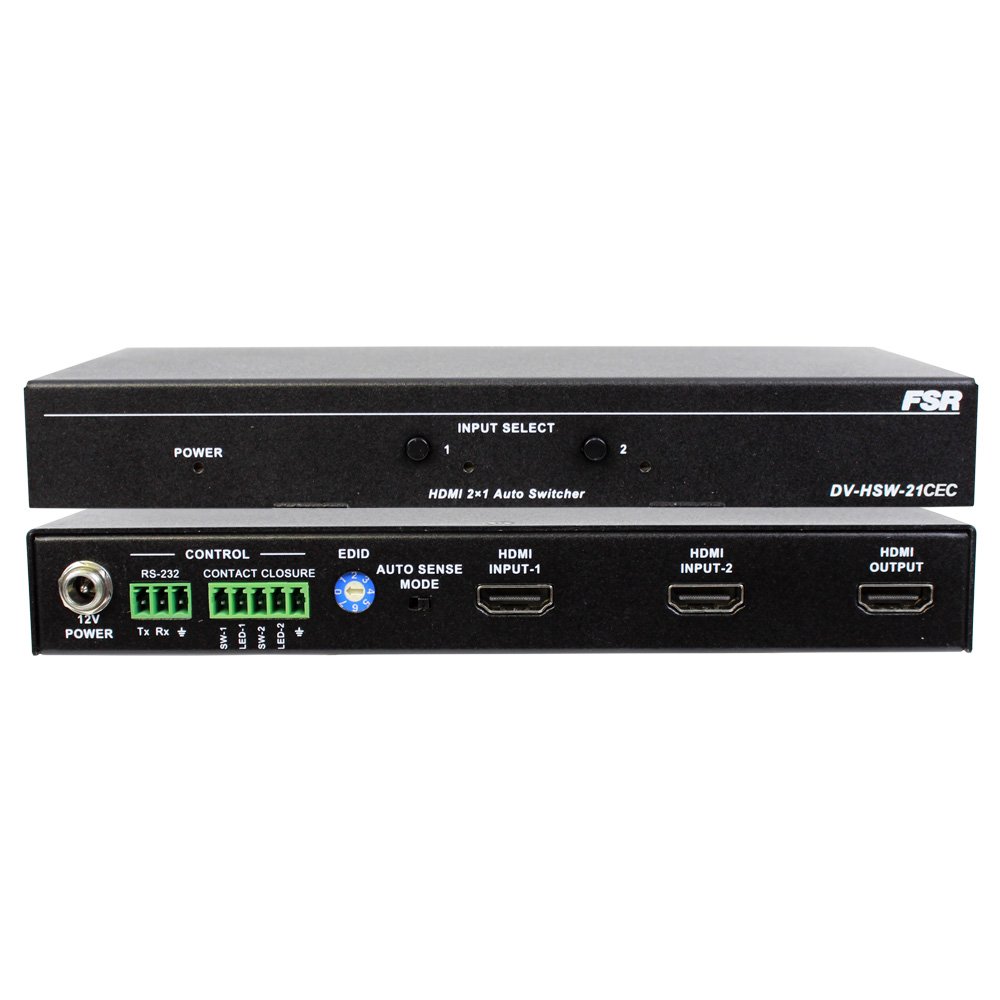

DV-HSW-21CECTwo HDMI inputs, up to 4K x 2K at 30Hz

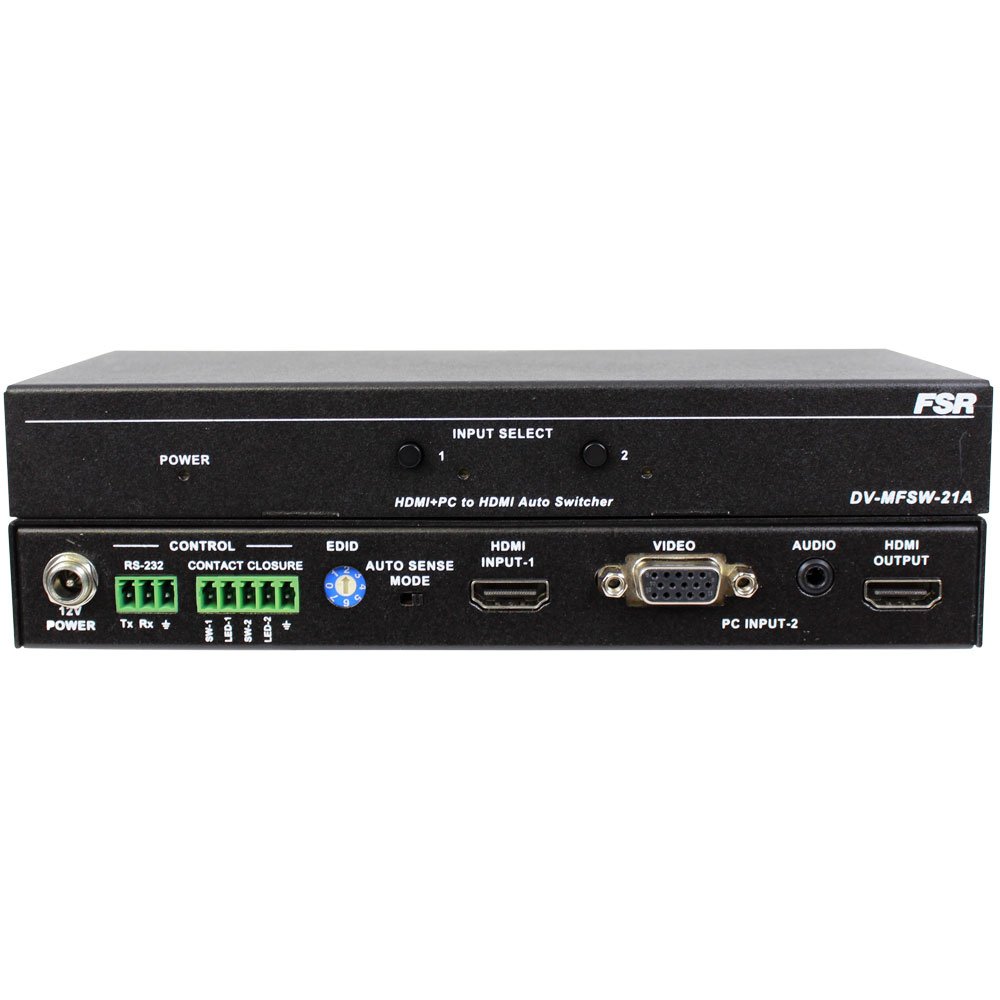

DV-MFSW-21CECOne HDMI input up to 4K x 2K at 30Hz plus one VGA input up to 1920 x 1200 at 60Hz
VGA AudioOn the MFSW, VGA audio is converted onto the HDMI output
ControlFront panel buttons, contact closure, RS-232 or auto-sensing
FeedbackLED feedback for contact closures
CompatibleFSR HuddleVU T3 dual table boxes
