Focusrite RedNet X2P 2x2 Dante Interface with Red Evolution Mic Preamps

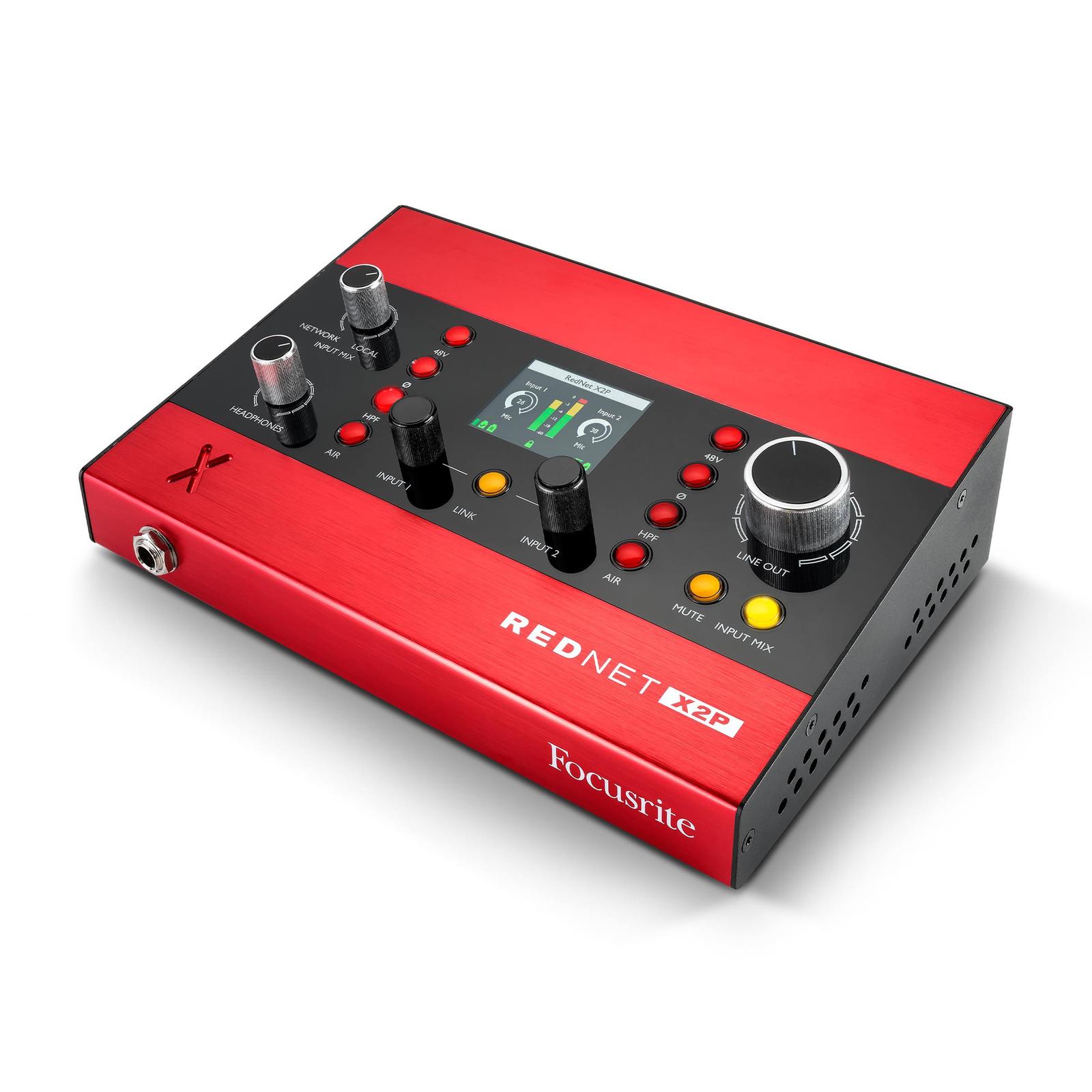

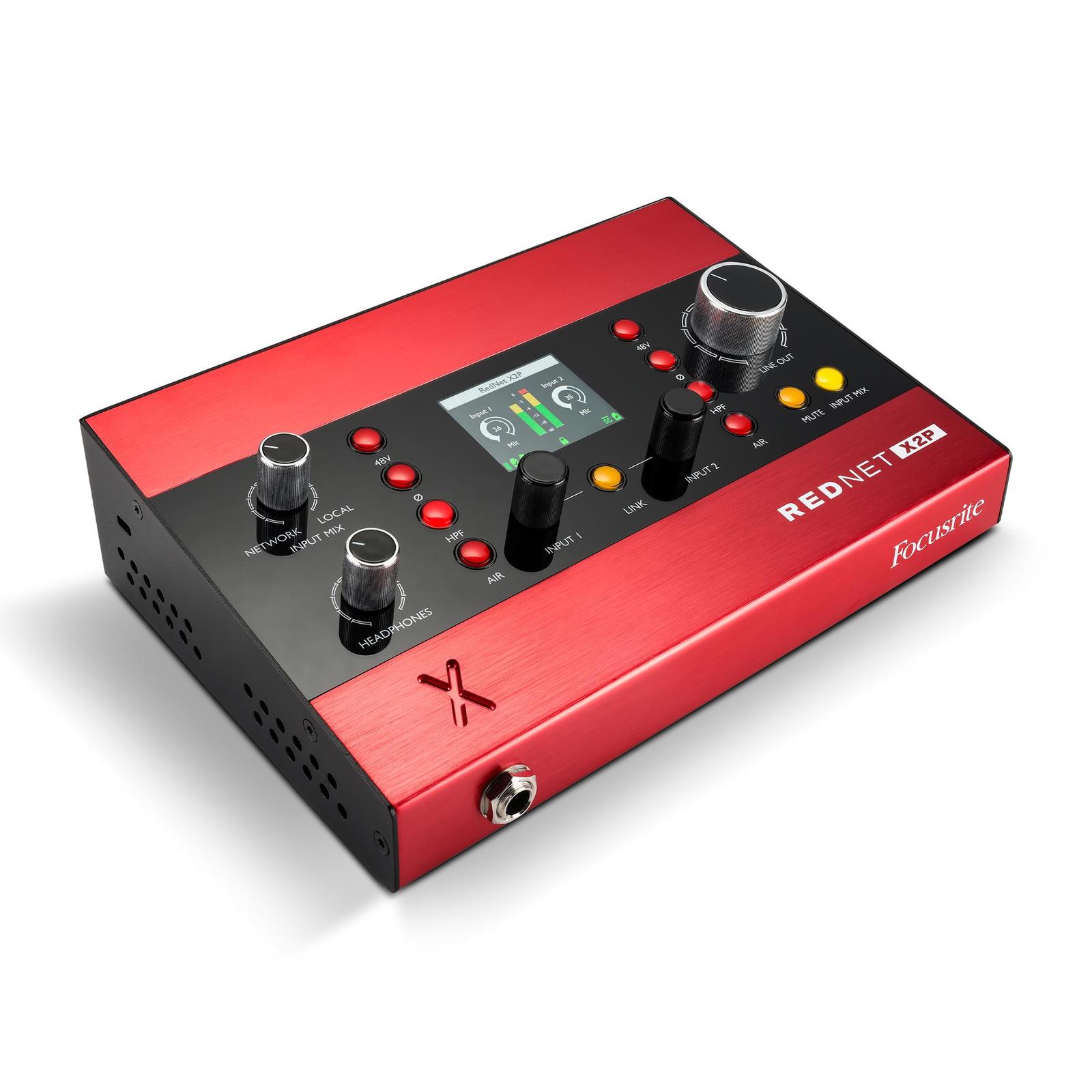

RedNet X2P is a two in, two out Dante endpoint with real preamps rather than a converter with a socket. Two Red Evolution microphone preamplifiers give 0 to 68 dB of gain in 1 dB steps, per-channel +48 V, a per-channel 80 Hz high-pass filter at 12 dB per octave and an Air mode that lifts 2 dB at 10 kHz while trimming 2 dB at 20 Hz.

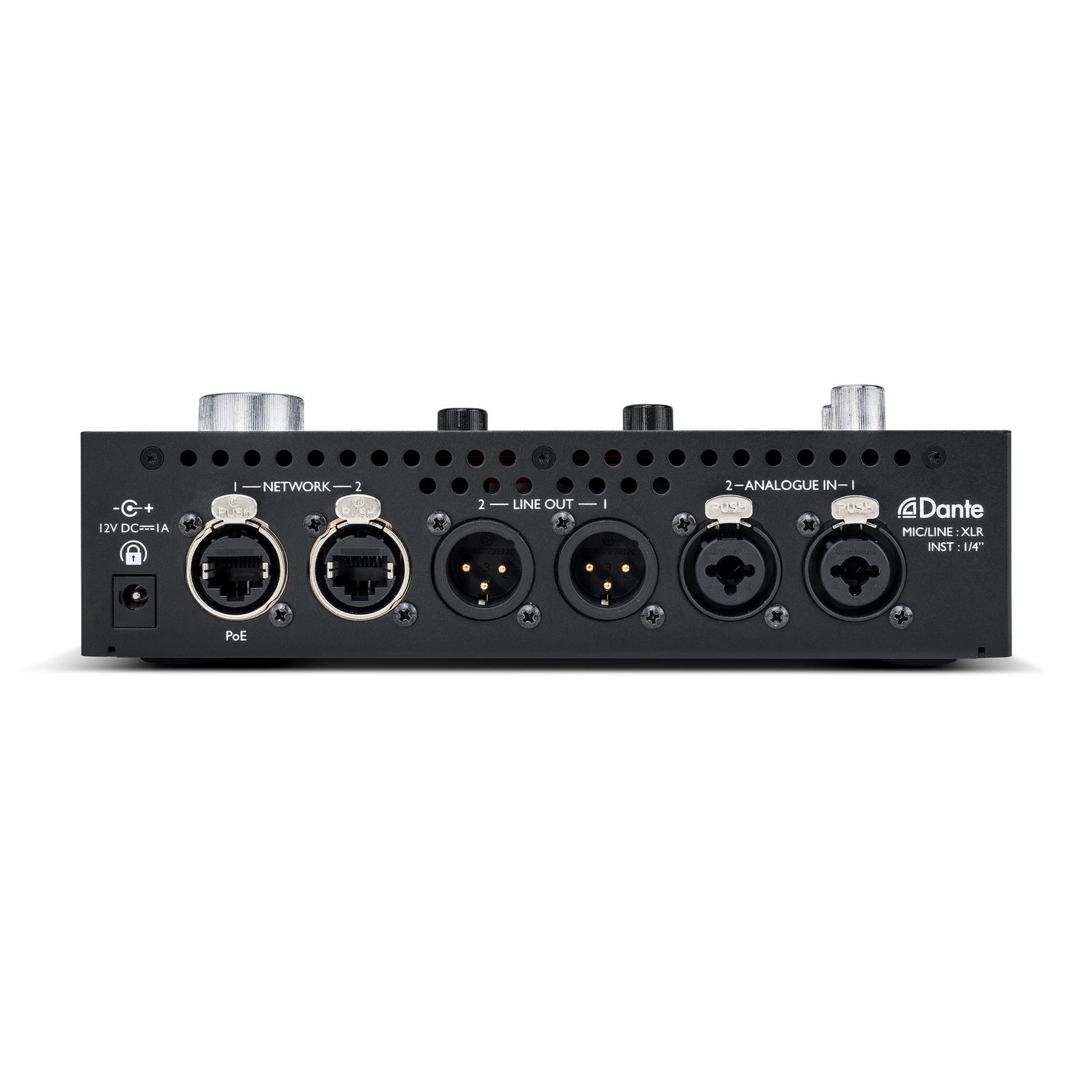

Inputs are locking combi XLR and accept microphone, line or instrument sources, with a 2 megohm instrument impedance and a stated EIN below -130 dBu A-weighted. Outputs are two male XLRs plus a 1/4 inch headphone jack driving 32 to 600 ohms. Two etherCON connectors carry the network and PoE, so the box needs one cable; a 12 V locking DC inlet is there when the switch does not supply power.
