Extron SMK 35 Series Surface Mount Kits for TLP Pro 35 Series Touchpanels

Not every wall can take a back box. The SMK 35 Series mounts a TLP Pro 535M, 835M, or 1035M on the face of a wall or a glass partition using pre-applied adhesive, which is the answer for a glazed conference room wall or any surface that cannot be cut. The profile stays low so the panel still reads as a panel from the room side rather than as a panel sitting on a block.

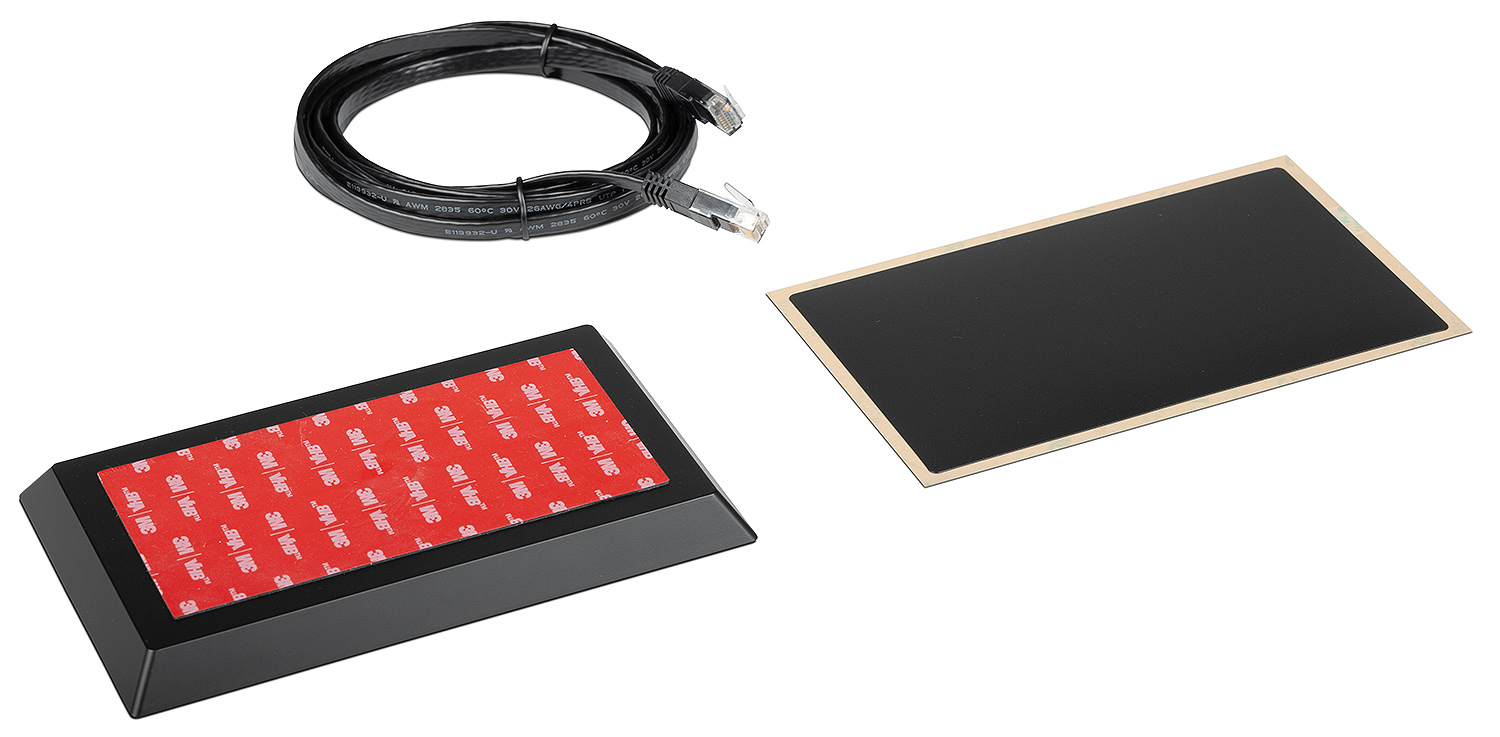

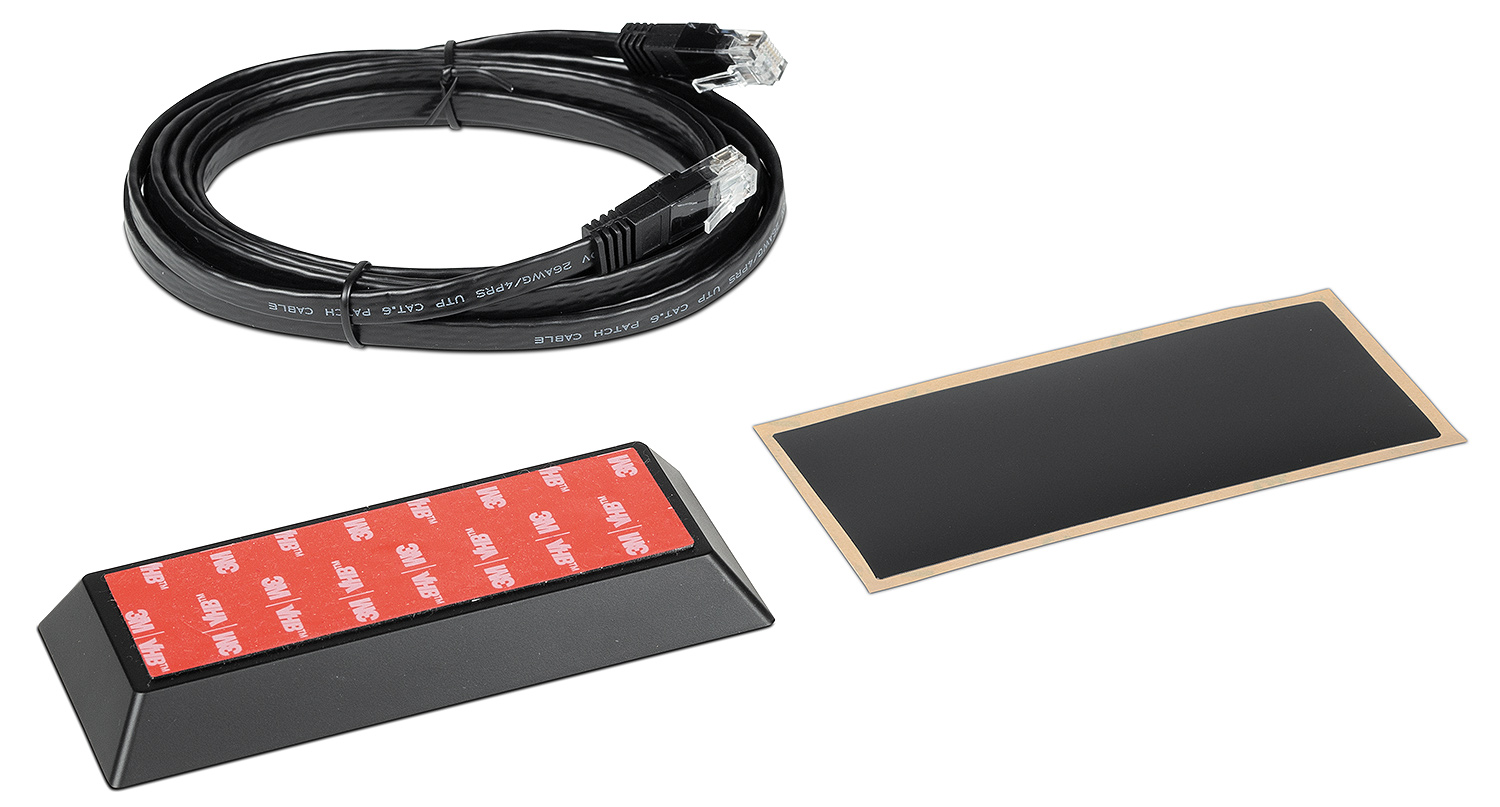

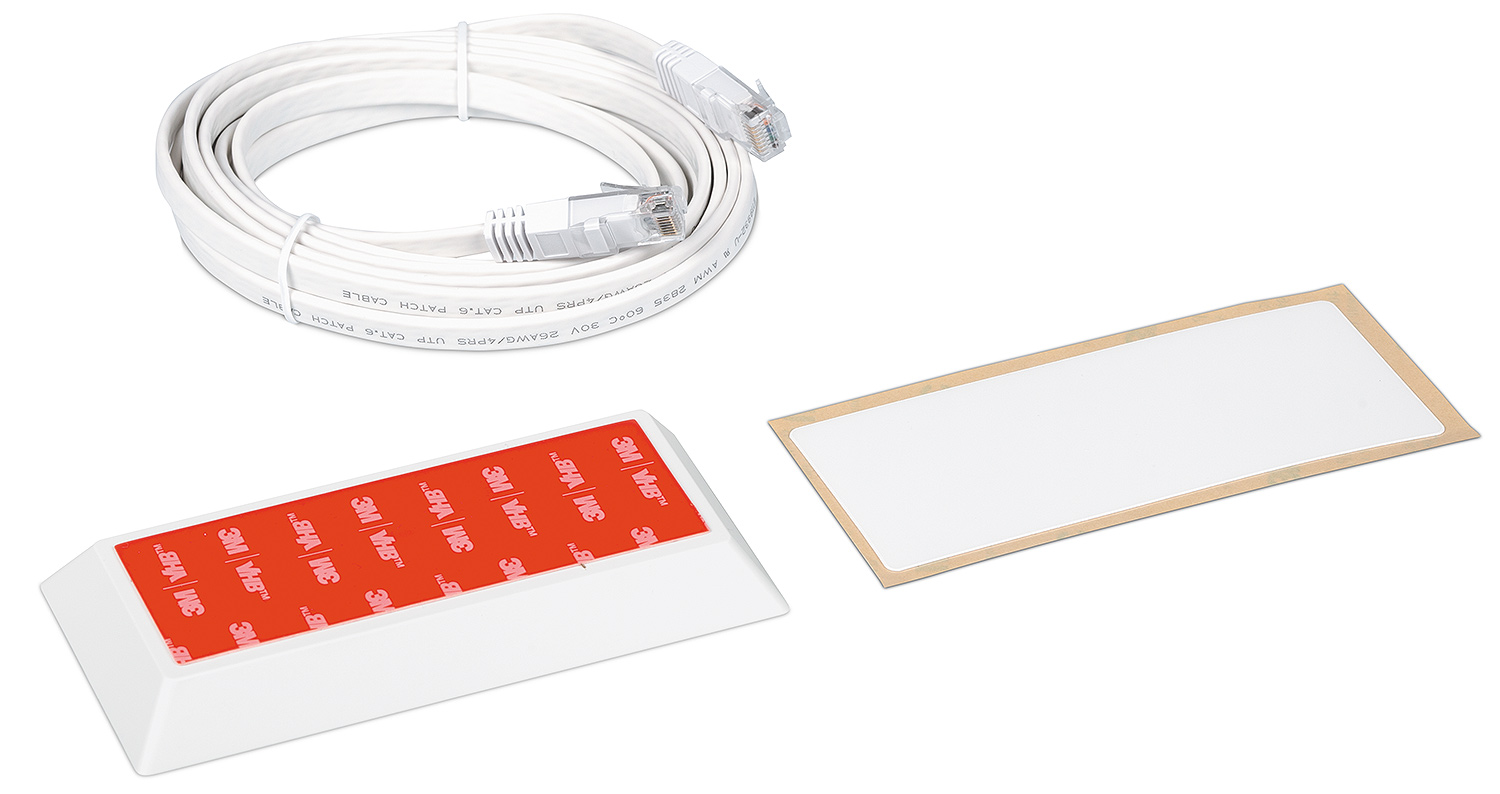

The body is shaped so the LEDs on either side of the touchpanel stay visible once it is seated, and knockouts route the network drop out of sight. A flat Ethernet cable is in the box, 10.0 feet long and 0.29 by 0.10 inches in section, thin enough to run under the adhesive path instead of standing the mount off the glass. On a glass install the included glass-adhered overlay covers the back so the far side of the partition looks intentional. Pick your model above: SMK 4, SMK 5, or SMK 6.
