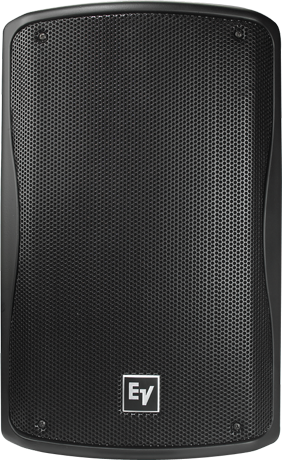

Electro-Voice ZX1-90 8-Inch Two-Way Passive Loudspeaker

The ZX1-90 is the small passive box that ends up everywhere - a weather-treated EV8L 8-inch woofer and a DH2005 compression driver in a high-impact polymer cabinet that weighs 8.4 kg. It takes 200 W continuous into 8 ohms and reaches 60 Hz at -3 dB, which is more low end than an 8-inch cabinet usually manages.

The moulded shape includes a handle, a pole socket and a wedge angle, so the same box works on a stand, on a bracket or lying on its side as a floor monitor. Four metric inserts take EV or third-party mounting hardware, and connection is a Neutrik NL4. Sold in black or white at the same price.

Type	8-inch two-way passive loudspeaker
Frequency response (-3 dB)	60 Hz - 20 kHz
Maximum SPL	121 dB (calculated)
Power handling	200 W continuous / 400 W programme / 800 W peak
Nominal impedance	8 ohms (minimum 6 ohms)
Axial sensitivity	92 dB, 1 W at 1 m
Transducers	EV8L 203 mm (8 in) woofer; DH2005 1-inch exit compression driver
Crossover frequency	1.7 kHz
Connector	Neutrik Speakon NL4
Enclosure	High-impact polymer; powder-coated 18 GA galvanised steel grille
Dimensions (H x W x D)	457 x 282 x 264 mm (17.98 x 11.12 x 10.38 in)
Net weight	8.4 kg (18.5 lb)
Mounting	(4) metric mounting inserts; integrated pole mount adapter
