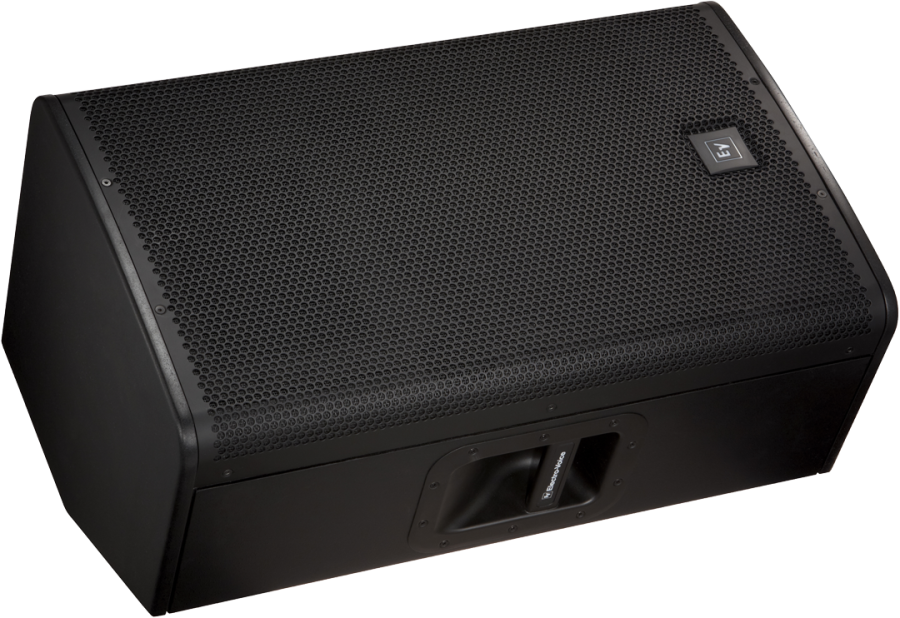

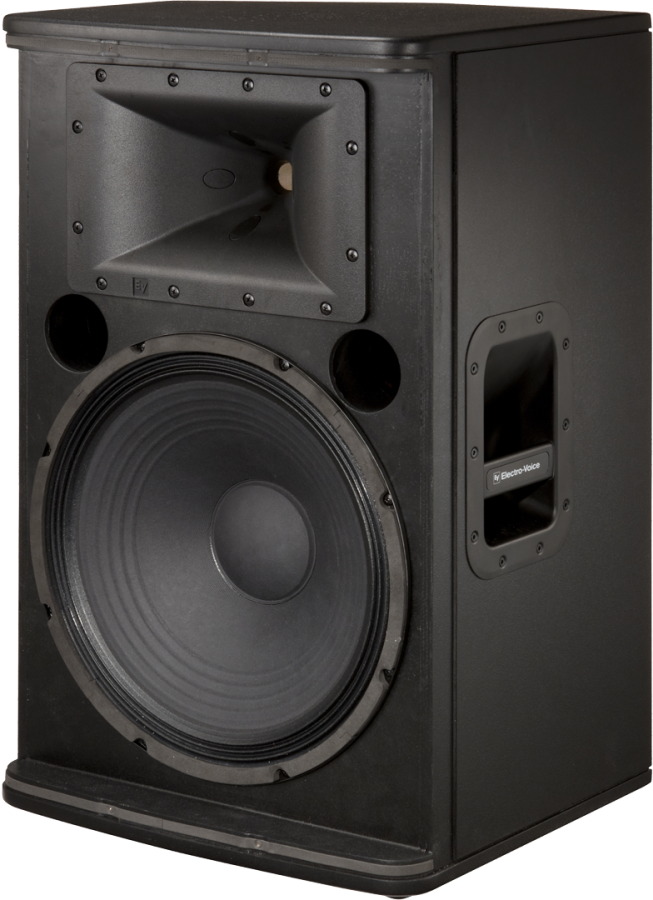

Electro-Voice ELX115 15-Inch Two-Way Passive Loudspeaker

The ELX115 is part of the Electro-Voice installed sound range. It runs a DH-1K, 39mm (1.5") titanium diaphragm compression driver.

The cabinet is 9-ply, 15mm plywood, internally braced, with texured paint. It measures 708mm x 432mm x 382mm (27.89" x 17.02 x 15.05") and weighs 21.9 kg (48.2 lbs). The grille is 18GA steel with black powdercoat. Shipping Weight is 26.6 kg (58.6 lbs). Freq. Response (-3 dB) is 75 hz - 18 kHz¹.

HF Transducer	DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
Enclosure Material	9-ply, 15mm Plywood, Internally Braced, with Texured Paint
Grille	18GA Steel with Black Powdercoat
Dimensions (H x W x D)	708mm x 432mm x 382mm (27.89" x 17.02 x 15.05")
Net Weight	21.9 kg (48.2 lbs)
Shipping Weight	26.6 kg (58.6 lbs)
Freq. Response (-3 dB)	75 Hz - 18 kHz¹
Freq. Range (-10 dB)	50 Hz - 20 kHz¹
