EtherWAN EX78900R Series Hardened Managed 16-Port Gigabit PoE Ethernet Switch

EtherWAN EX78900R Series Hardened Managed 16-Port Gigabit PoE Ethernet Switch moves traffic inside cabinets, roadside enclosures and plant rooms where a commercial switch would not last a season. Port count and media are listed as 12 x 10/100/1000BASE-T(X); 4 x 100/1000BASE SFP. Operating temperature is rated at -40 to 70 deg C (-40 to 158 deg F). The housing is aluminum, rated IP30.

One orderable part number, EX78934R-0VB, listed at the current dealer price. Power input: 52-57VDC Redundant (Terminal block). Specifications above are taken from the EtherWAN datasheet for this family.

Ethernet	12 x 10/100/1000BASE-T(X) \| 4 x 100/1000BASE SFP
Console	1 x RS232
Power Consumption	20W Max (without PoE)
PoE Modes	802.3af/at Mode A: Pins 1/2(+), 3/6(-) \| 802.3af/at Mode B: Pins 4/5(+), 7/8(-) \| 802.3bt (60W): Mode A & B, Pins 1/2(+), 3/6(-), 4/5(+), 7/8(-)
PoE Power Output	Ports 1-4, 9-12: Up to 30W/port \| Ports 5-8: Up to 60W/port \| Power Budget: 240W
Casing Material	Aluminum
IP Rating	IP30

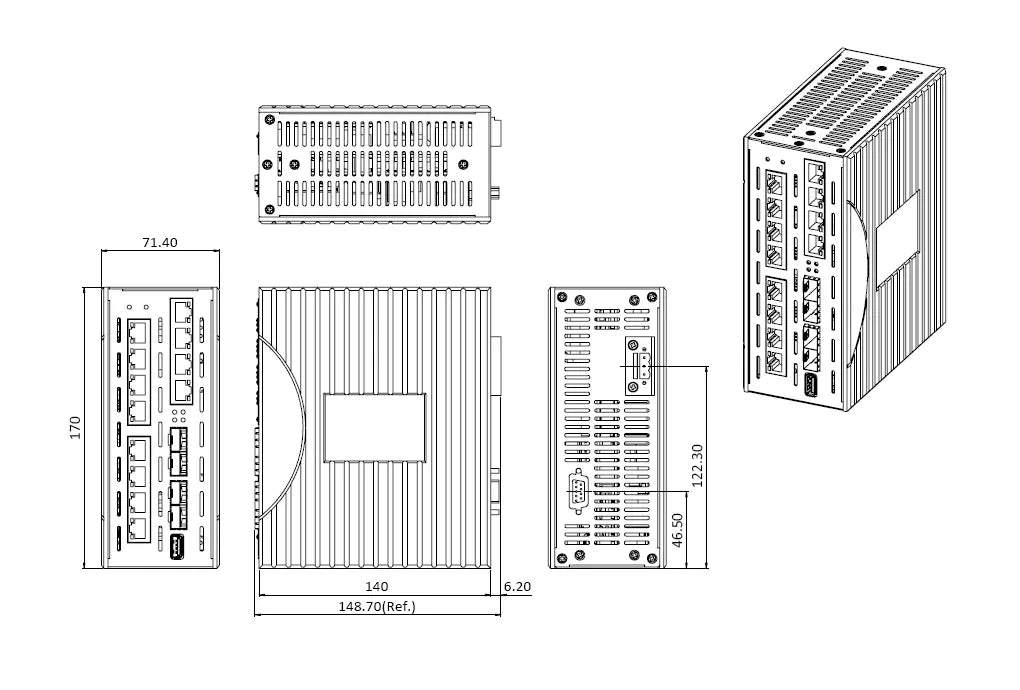

Dimensions	72 x 140 x 170mm (W x D x H) \| 2.8" x 5.5" x 6.7"
