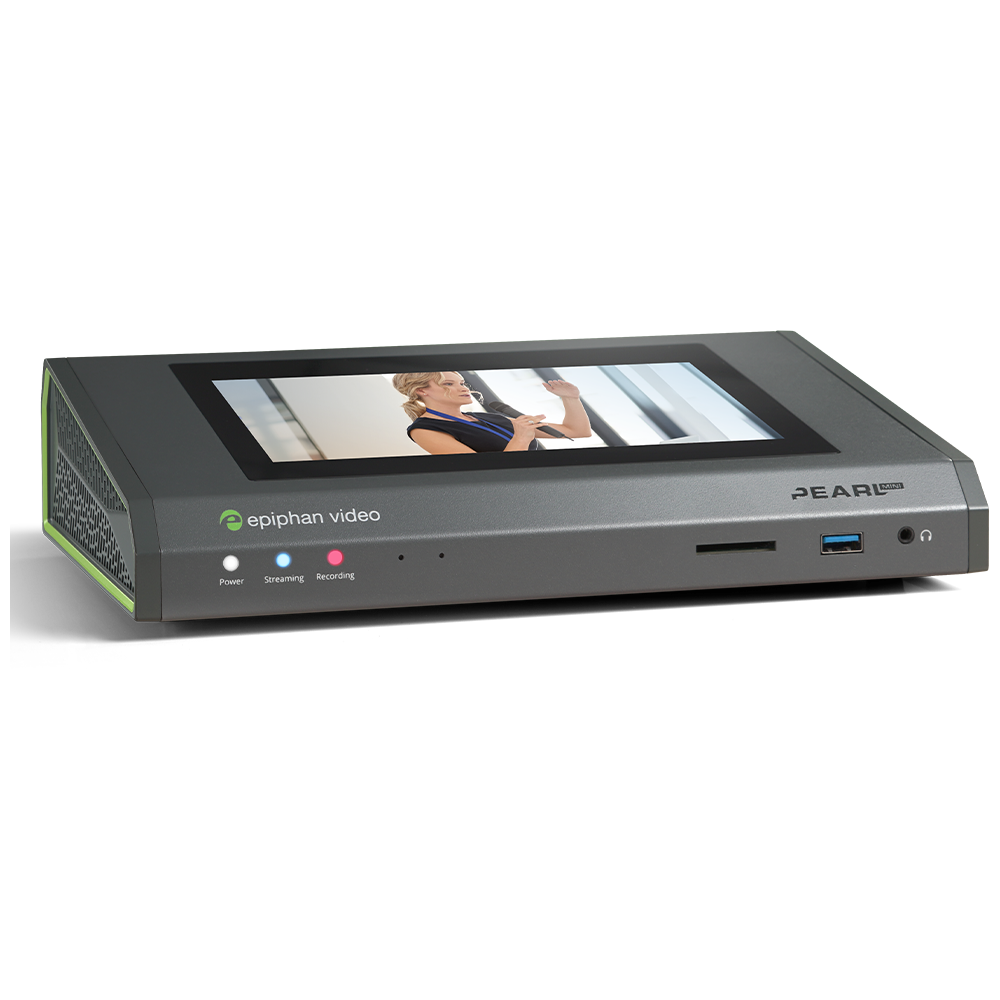

Epiphan Pearl Mini Live Production System
The Epiphan Pearl Mini is an all-in-one live production system sized for a single operator. It switches, records, and streams up to three HD sources across HDMI, 3G-SDI, USB, and DVI inputs, and also accepts network video over NDI|HX, SRT, and RTSP, handling standard and custom resolutions up to 1920x1200. A 7-inch built-in touchscreen gives confidence monitoring and hands-on control without a laptop, and the same system can be driven from a browser or from anywhere through Epiphan Edge.
Audio is built for real production, with two XLR/TRS mic inputs that supply phantom power, a 3.5mm microphone input, and stereo RCA line inputs. Encoding is hardware-accelerated and happens in real time, so streaming and recording run together, with recordings saved to the SD card slot. An HDMI output provides a confidence monitor or multiview feed.
| Video Inputs | HDMI, 3G-SDI, USB, DVI; plus NDI|HX, SRT, RTSP |
|---|---|
| Source Capacity | Up to 3 HD sources |
| Max Resolution | Up to 1920 x 1200 |
| Control | 7-inch touchscreen, web UI, Epiphan Edge |
| Audio Inputs | 2x XLR/TRS with phantom power, 3.5mm mic, stereo RCA |
| Encoding | Hardware-accelerated, real-time |
| Recording | SD card slot |
| Output | HDMI confidence monitor / multiview |
