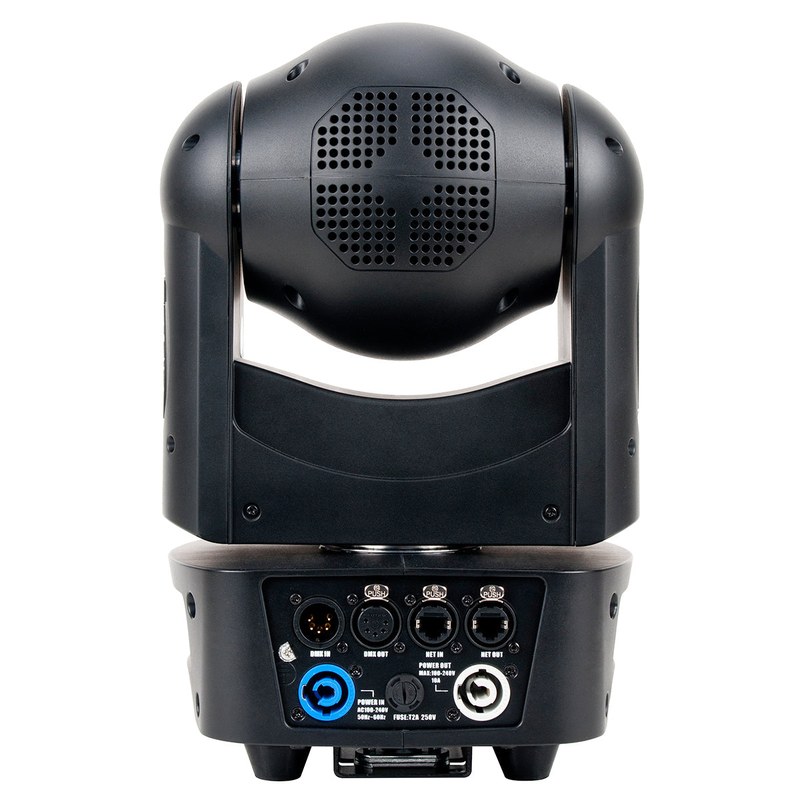

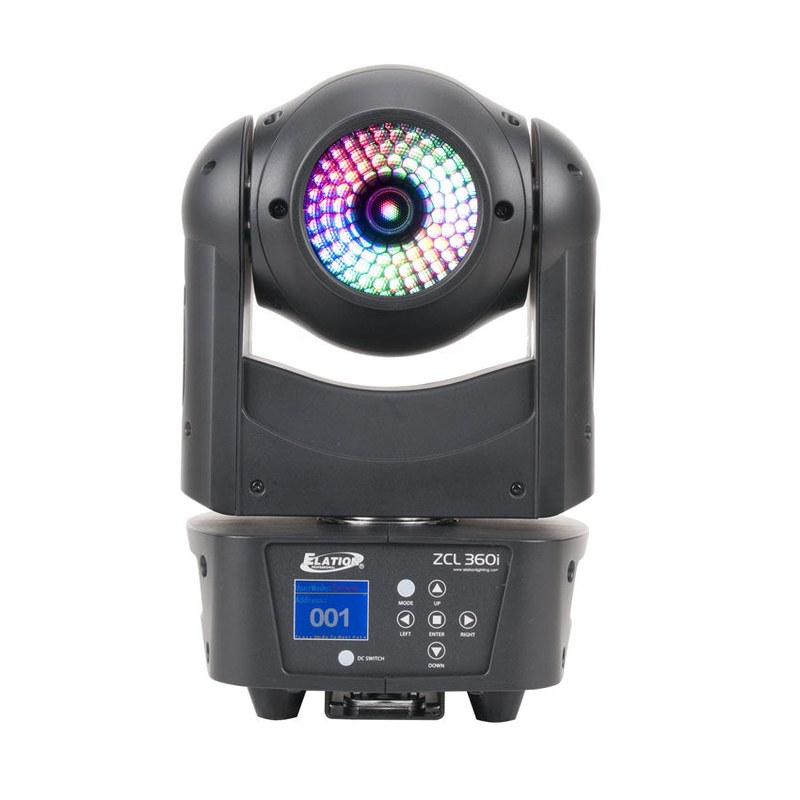

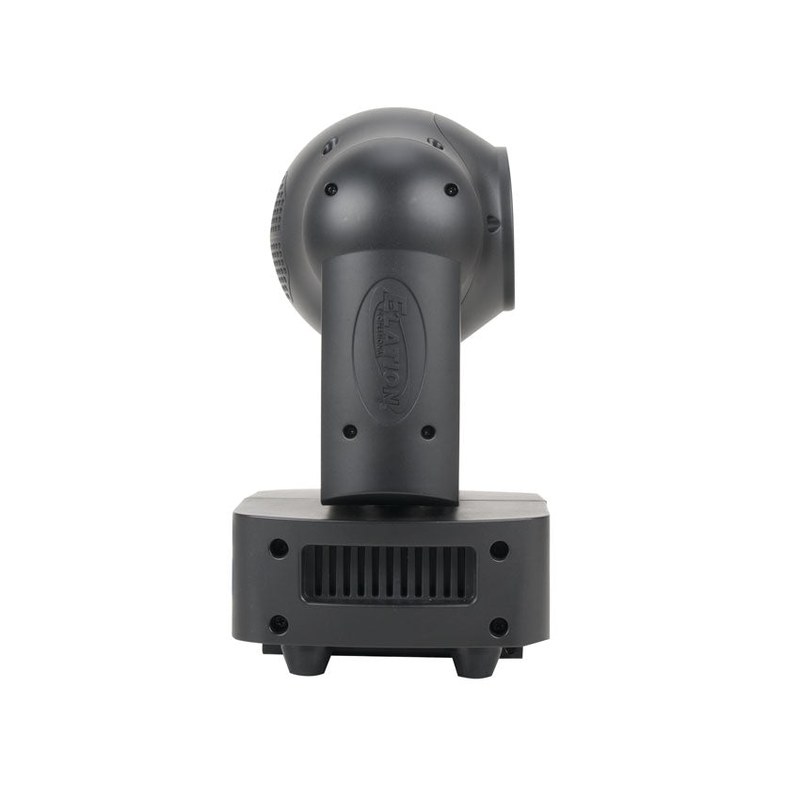

Elation ZCL 360i LED Lighting Fixture

The Elation ZCL 360i is an LED lighting fixture from Elation. Elation lists the source as 90W RGBW 4-in-1 LED, 100,000 Hour Average LED Life. Published photometric data: 11,123 LUX 1,033 FC @9.8' (3m) (4 deg Min Zoom) Full ON, 483 LUX 45 FC @9.8' (3m) (44 deg Max Zoom) Full ON.

Control / connections covers (3) DMX Channel Modes (21 Total Channels), RDM (Remote Device Management), (7) Button Touch Control Panel. Listed length: 8.74" (222.1mm). Ordering code ZCL360I.

Source90W RGBW 4-in-1 LED, 100,000 Hour Average LED Life
Photometric Data11,123 LUX 1,033 FC @9.8' (3m) (4 deg Min Zoom) Full ON, 483 LUX 45 FC @9.8' (3m) (44 deg Max Zoom) Full ON
EffectsRGBW Color Mixing, 4 deg - 44 deg Beam Zoom Range, Variable Dimming Curves, Electronic Strobe and Dimming (0% - 100%), 64 Color Presets and 14 Unique Color Macros
Control / Connections(3) DMX Channel Modes (21 Total Channels), RDM (Remote Device Management), (7) Button Touch Control Panel, Full Color 180 deg Reversible LCD Menu Display, 8 / 16 Bit Resolution Adjustable...
Length8.74" (222.1mm)
Width7.31" (186mm)
Vertical Height13.22" (336mm)
Weight13 lbs. (5.9 kg)
Elation Professional: ZCL 360i
