Elation SIXBAR 500 LED Bar Fixture

The Elation SIXBAR 500 is an LED bar from Elation. Elation lists the source as (6) 12W 6-in-1 RGBAW+UV LEDs, 100,000 Hour Average LED Life. Published photometric data: 6,500 LUX 604 FC @3.3' (1m) (30 deg Full ON), 1,934 LUX 180 FC @6.6' (2m) (30 deg Full ON), 901 LUX 84 FC @9.8' (3m) (30 deg Full ON).

Control / connections covers 8 DMX Channel Modes (6 / 7 / 11 / 13 / 18 / 36 / 39 / 43), 4 Button Control Panel and LCD Menu Display, ArtNet + KlingNET Protocol Support. Listed length: 17.7" (450mm). Ordering code SIX BAR 500.

Source	(6) 12W 6-in-1 RGBAW+UV LEDs, 100,000 Hour Average LED Life
Photometric Data	6,500 LUX 604 FC @3.3' (1m) (30 deg Full ON), 1,934 LUX 180 FC @6.6' (2m) (30 deg Full ON), 901 LUX 84 FC @9.8' (3m) (30 deg Full ON), 508 LUX 47 FC @13.1' (4m) (30 deg Full ON), 318 LUX...
Effects	Strobe and Chase Effects, Individual LED Control, Variable and Selectable Dimming Curves

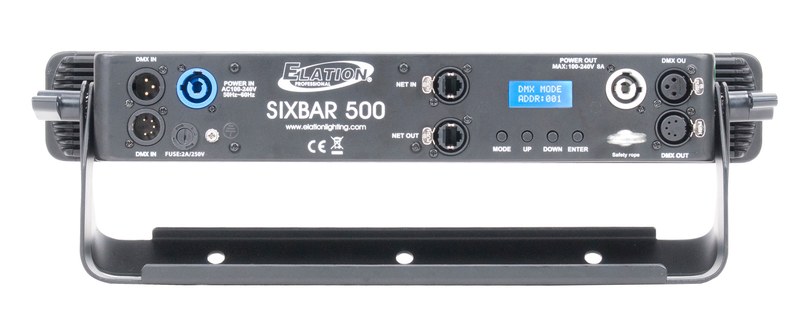

Control / Connections	8 DMX Channel Modes (6 / 7 / 11 / 13 / 18 / 36 / 39 / 43), 4 Button Control Panel and LCD Menu Display, ArtNet + KlingNET Protocol Support, RDM (Remote Device Management), (2) ethernet Po...
Length	17.7" (450mm)
Width	8.1" (206.4mm) *with included glare shield
Vertical Height	6.1" (155mm)
Weight	9.0 lbs. (4.1 kg)
