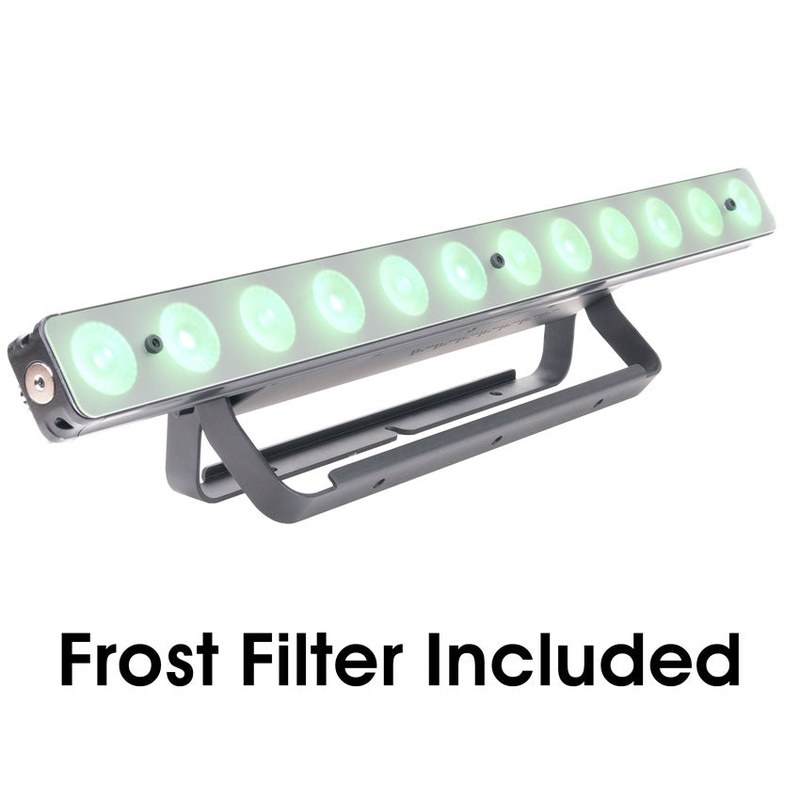

Elation SIXBAR 1000 LED Bar Fixture

The Elation SIXBAR 1000 is an LED bar from Elation. Elation lists the source as (12) 12W 6-in-1 RGBAW+UV LEDs, 100,000 Hour Average LED Life. Published photometric data: 8,500 LUX 790 FC @3.3' (1m) (30 deg Full ON), 3,660 LUX 340 FC @6.6' (2m) (30 deg Full ON), 2,040 LUX 190 FC @9.8' (3m) (30 deg Full ON).

Control / connections covers 8 DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79), 4 Button Control Panel and LCD Menu Display, ArtNet + KlingNET Protocol Support. Listed length: 35.4" (900mm). Ordering code SIX BAR 1000.

Source	(12) 12W 6-in-1 RGBAW+UV LEDs, 100,000 Hour Average LED Life
Photometric Data	8,500 LUX 790 FC @3.3' (1m) (30 deg Full ON), 3,660 LUX 340 FC @6.6' (2m) (30 deg Full ON), 2,040 LUX 190 FC @9.8' (3m) (30 deg Full ON), 1,290 LUX 120 FC @13.1' (4m) (30 deg Full ON), 87...
Effects	Strobe and Chase Effects, Individual LED Control, Variable and Selectable Dimming Curves
Control / Connections	8 DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79), 4 Button Control Panel and LCD Menu Display, ArtNet + KlingNET Protocol Support, RDM (Remote Device Management), (2) ethernet Po...
Length	35.4" (900mm)

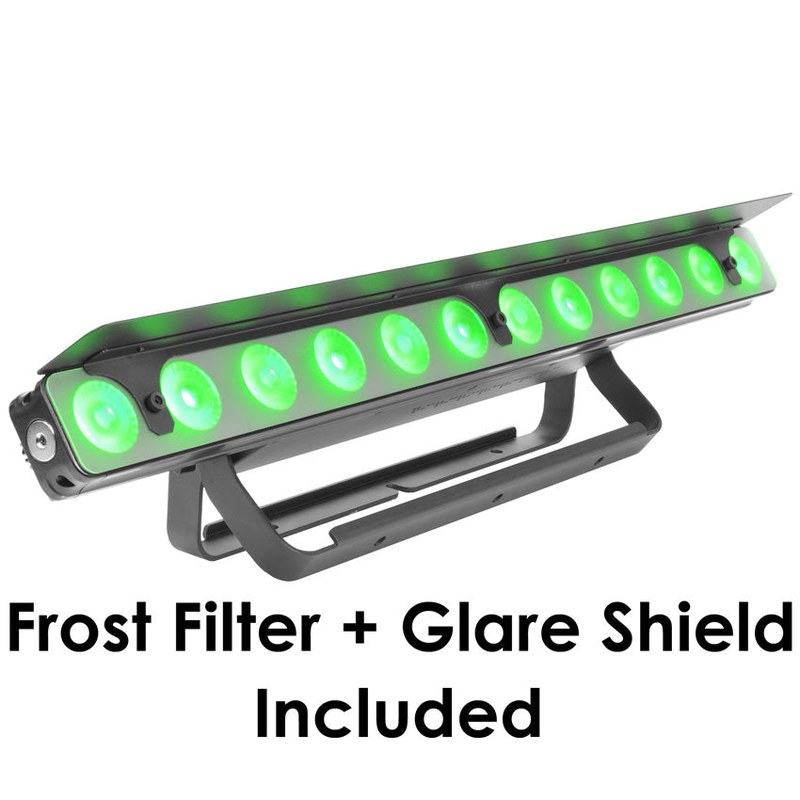

Width	8.1" (206.4mm) *with included glare shield
Vertical Height	6.1" (155mm)
Weight	16.0 lbs. (7.3 kg)
