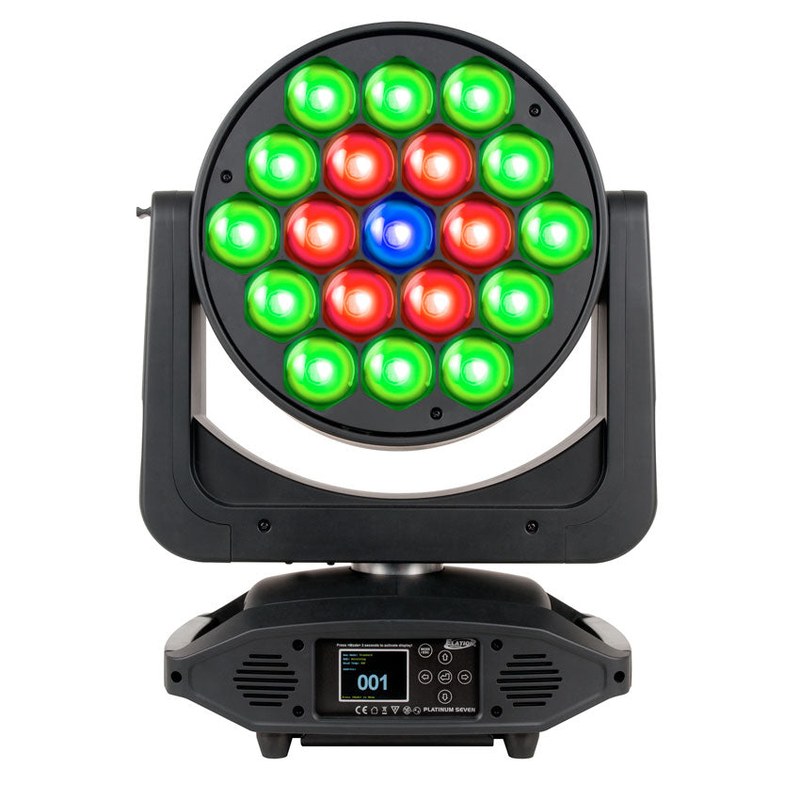

Elation Platinum Seven LED Lighting Fixture
The Elation Platinum Seven is an LED lighting fixture from Elation. Elation lists the source as (19) 25W Multi-Chip LEDs, 50,000 Hour Average LED Life. Published photometric data: 38,500 LUX 3,577 FC @3.3' (1m) (5 deg Min Zoom) Full ON, 6,670 LUX 620 FC @3.3' (1m) (50 deg Max Zoom) Full ON.
Control / connections covers (3) DMX Channel Modes (24 / 31 / 40), Adjustable LED Refresh Frequency, Adjustable LED Gamma Brightness, Silent Mode, RDM (Remote Device Management). Listed length: 16.5" (418.1mm). Ordering code PLATINUM SEVEN.
| Source | (19) 25W Multi-Chip LEDs, 50,000 Hour Average LED Life |
|---|---|
| Photometric Data | 38,500 LUX 3,577 FC @3.3' (1m) (5 deg Min Zoom) Full ON, 6,670 LUX 620 FC @3.3' (1m) (50 deg Max Zoom) Full ON |
| Effects | 5 deg - 50 deg Beam Angle Zoom, (3) Zone Ring Control, Color-Pixel Ring and Color Preset Macros, CRI Presets (85, 90, 95), Linear Color Temperature Presets (2,700 - 8,000K), Electronic St... |
| Color | RGBW + AMBER + CYAN + UV (7 Colors), Even and Smooth Color Mixing |
| Control / Connections | (3) DMX Channel Modes (24 / 31 / 40), Adjustable LED Refresh Frequency, Adjustable LED Gamma Brightness, Silent Mode, RDM (Remote Device Management), 6 Button Touch Control Panel, Full Co... |
| Length | 16.5" (418.1mm) |
| Width | 11.2" (284.4mm) |
| Vertical Height | 22.0" (558.9mm) |
