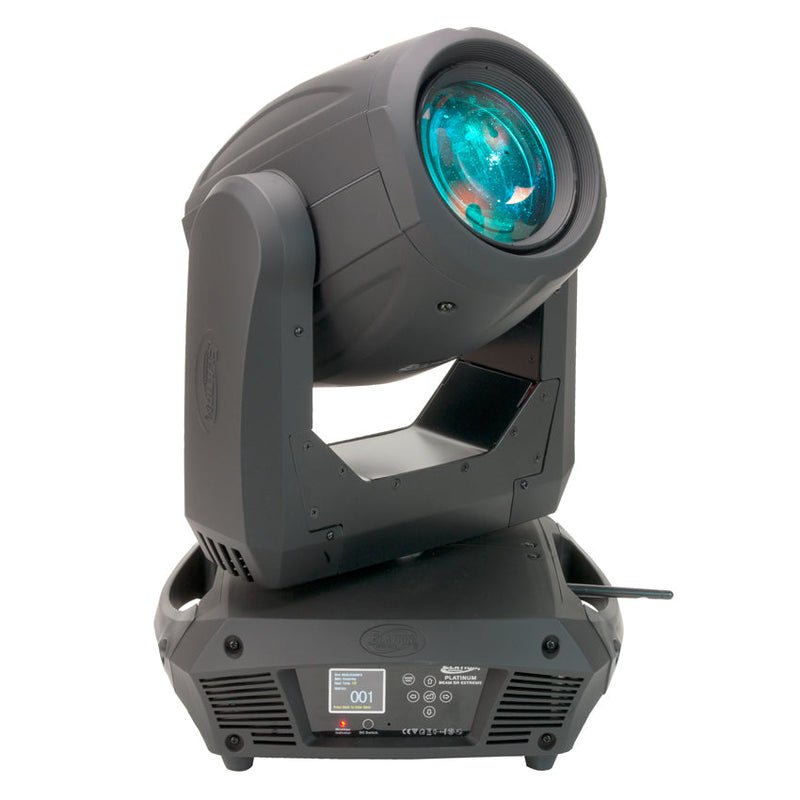

Elation Platinum Beam 5R EXTREME Moving Head
The Elation Platinum Beam 5R EXTREME is a moving head beam fixture from Elation. Elation lists the source as Philips 189W Platinum 5R Lamp, 3,000 Hour Average Life.
Control / connections covers (3) DMX Channel Modes (12 / 14 / 18), Remote Device Management. Listed length: 13.9" (352mm). Ordering code PLATINUM BEAM 5R EXT.
| Source | Philips 189W Platinum 5R Lamp, 3,000 Hour Average Life |
|---|---|
| Effects | Frost, Motorized Focus, Strobe (1-18 fps) |
| Electronic Dimming | 0% - 100% |
| Color | (11) Colors Including UV, CTO, and CTB |
| Gobos | (8) Metal Rotating, Indexing, Interchangeable Gobos |

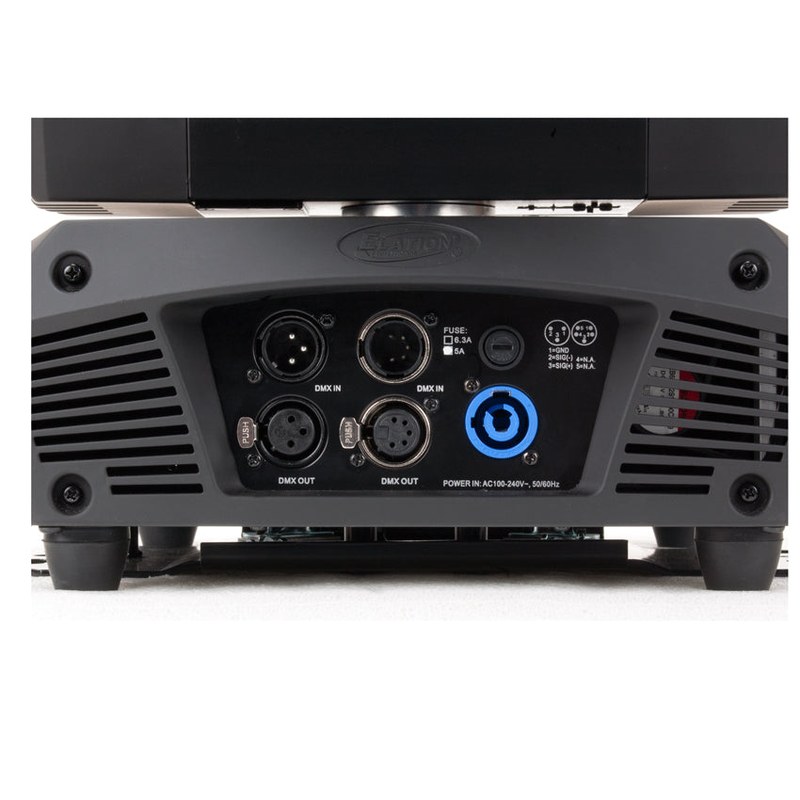

| Control / Connections | (3) DMX Channel Modes (12 / 14 / 18), Remote Device Management |
| Pan Movement | 540 deg/630 deg / Tilt Movement: 270 deg |
| Length | 13.9" (352mm) |
