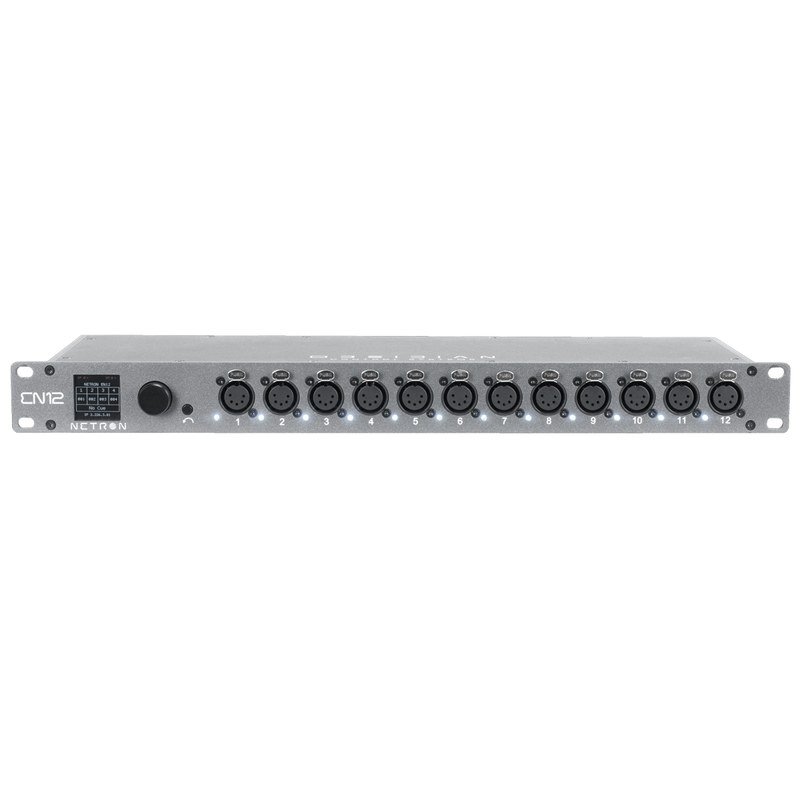

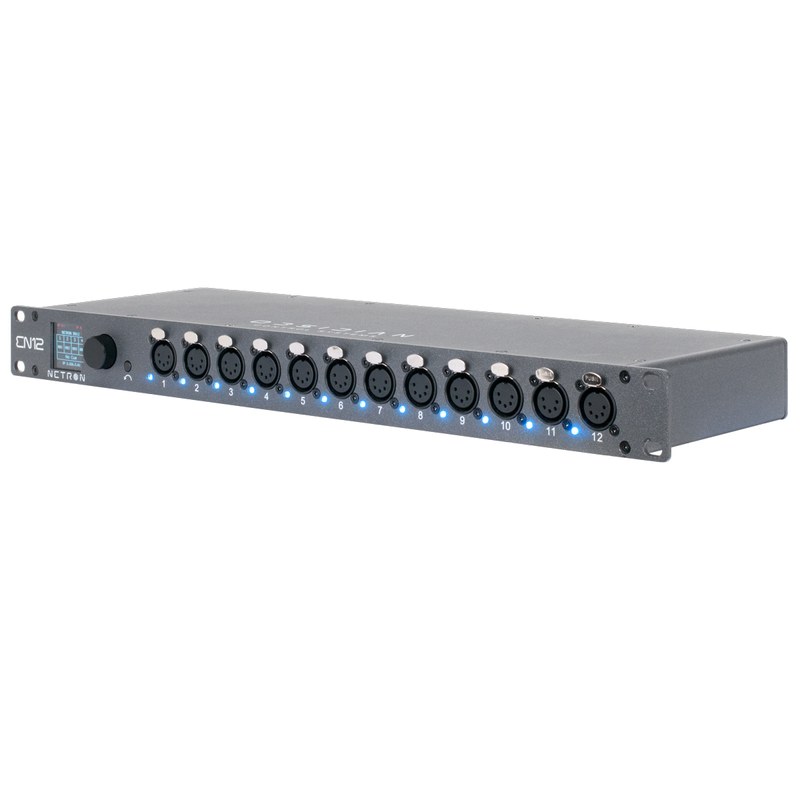

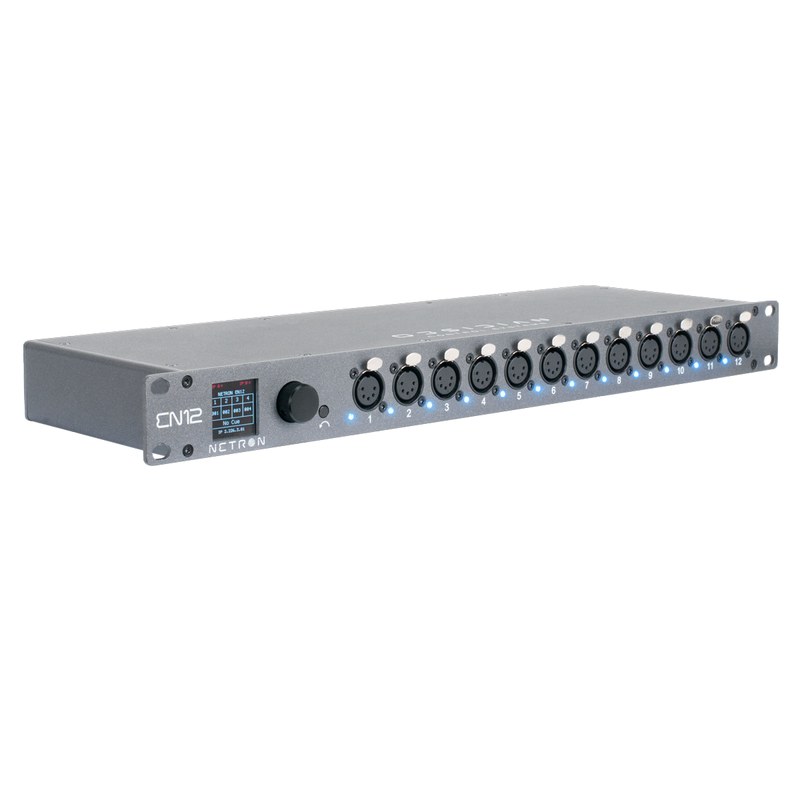

Elation EN12 DMX Data Distribution Node

The Elation EN12 is a DMX data distribution node from Elation. Rated rdm e1.20: Ethernet Features, Ethernet Port Speed 10/100/1000Mbps, MDI / MDIX Port Sensing, HTTP Remote Commands (Post, Get), HTML Web Remote, Physical. Rated width: 146 mm (5.7 in.).

Listed length: 482.5 mm (19 in.). Height: 44 mm (1.7 in.). Weight: 1.82 kg (4 lbs). Features: Rackmount; Connections; (12) 5pin DMX/RDM ports; Optical and galvanic isolation; Bidirectional for DMX In and Output; Full color OLED display. Ordering code EN12.

Rdm E1.20	Ethernet Features, Ethernet Port Speed 10/100/1000Mbps, MDI / MDIX Port Sensing, HTTP Remote Commands (Post, Get), HTML Web Remote, Physical
Length	482.5 mm (19 in.)
Width	146 mm (5.7 in.)
Height	44 mm (1.7 in.)
Weight	1.82 kg (4 lbs)
Features	Rackmount; Connections; (12) 5pin DMX/RDM ports; Optical and galvanic isolation; Bidirectional for DMX In and Output; Full color OLED display
