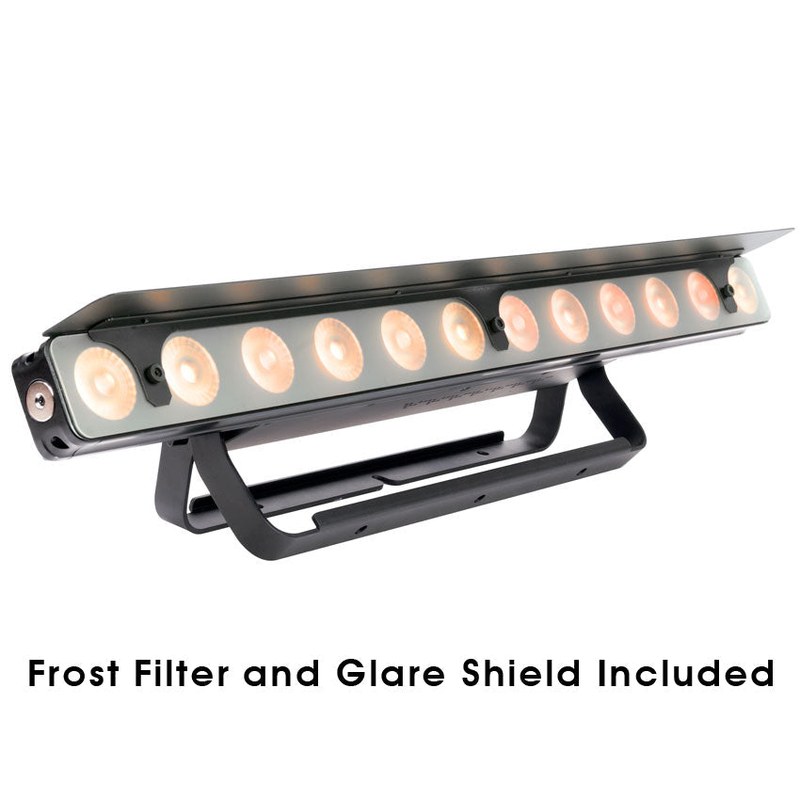

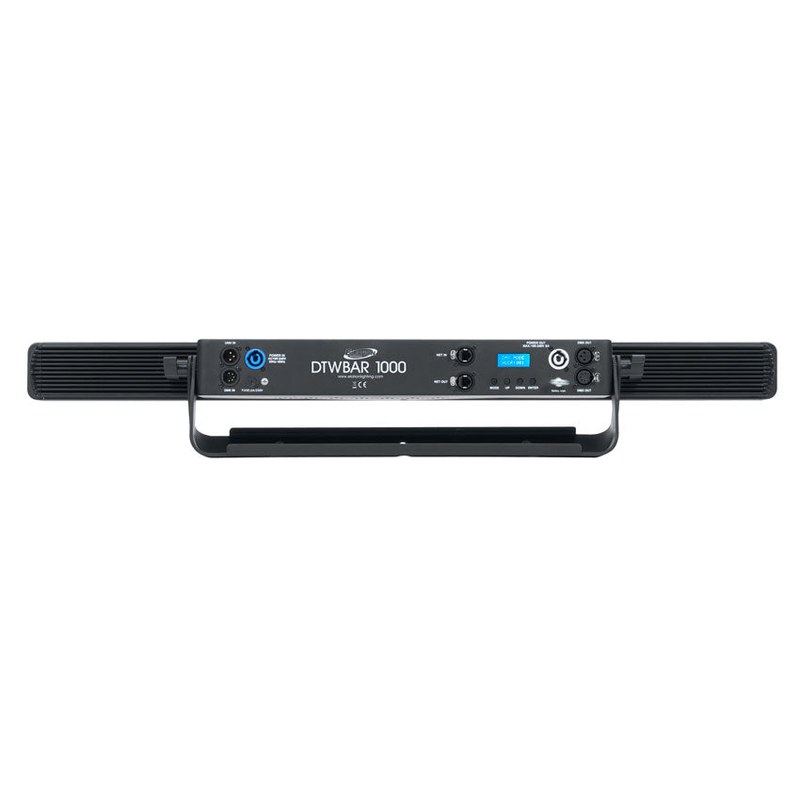

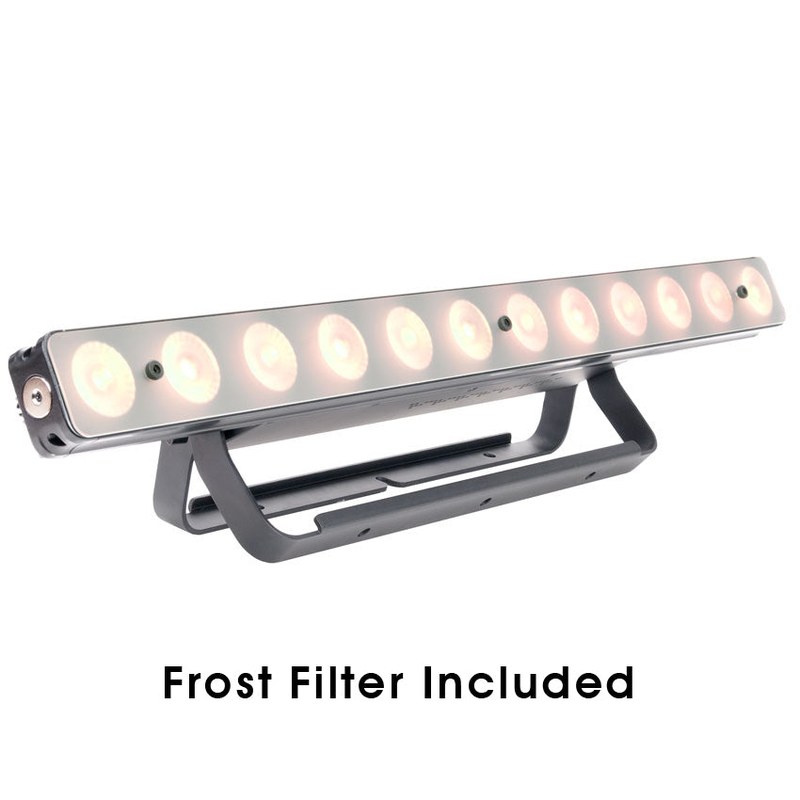

Elation DTW BAR 1000 LED Bar Fixture
The Elation DTW BAR 1000 is an LED bar from Elation. Elation lists the source as (12) 10W Multi-Chip CW / WW / Amber LEDs, 100,000 Hour Average LED Life. Published photometric data: 2,900+ Total Output Lumens, 17,878 LUX 1,661 FC @3.3' (1m) (Full ON), 9,467 LUX 879 FC @3.3' (1m) (Warm White).
Control / connections covers (14) DMX Channel Modes (72 total channels), 4 Button Control Panel and LCD Menu Display, RDM (Remote Device Management). Listed length: 35.4" (900mm). Ordering code DTW BAR 1000.
| Source | (12) 10W Multi-Chip CW / WW / Amber LEDs, 100,000 Hour Average LED Life |
|---|---|
| Photometric Data | 2,900+ Total Output Lumens, 17,878 LUX 1,661 FC @3.3' (1m) (Full ON), 9,467 LUX 879 FC @3.3' (1m) (Warm White), 9,177 LUX 853 FC @3.3' (1m) (Cool White) |
| Effects | Selectable Dim-to-Warm Control, Cool White, Warm White, Amber Color Mixing, Full Pixel + Color Temperature Control (1,600K - 6,500K), Variable 16-bit Dimming Curve Modes, Selectable Color... |
| Control / Connections | (14) DMX Channel Modes (72 total channels), 4 Button Control Panel and LCD Menu Display, RDM (Remote Device Management), ArtNet + KlingNET Protocol Support, (2) ethernet RJ45 In/Out, 3pin... |
| Length | 35.4" (900mm) |
| Width | 8.1" (206.4mm) *with included glare shield |
| Vertical Height | 6.1" (155mm) |
| Weight | 14.0 lbs. (6.4 kg) |
