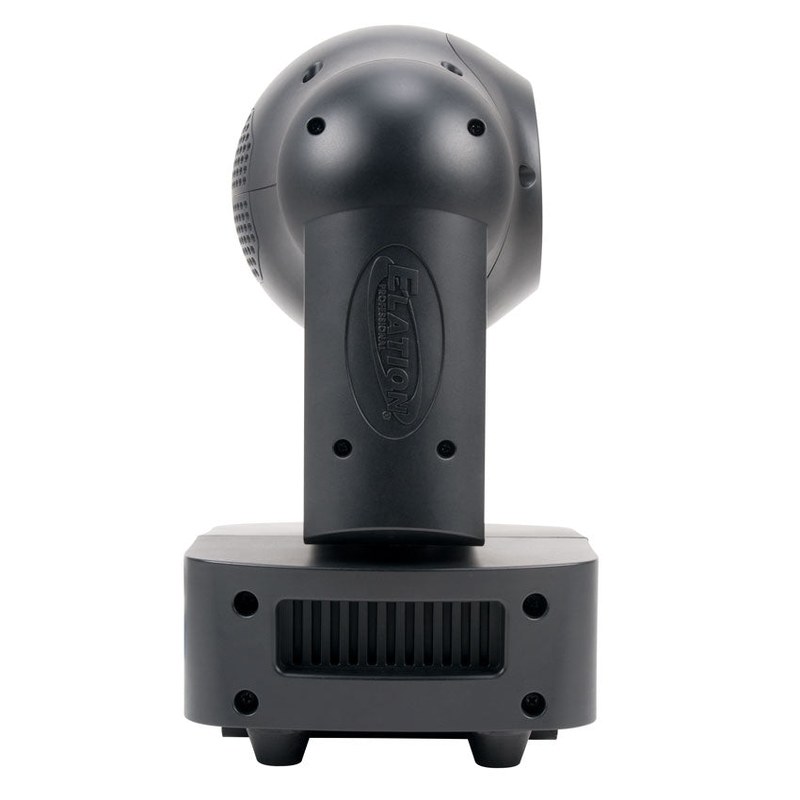

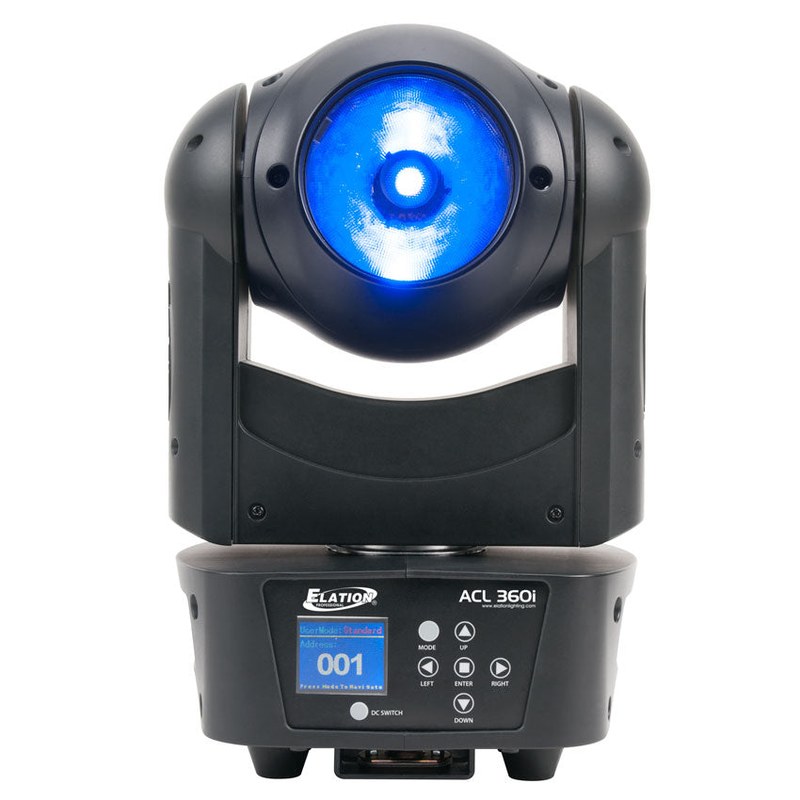

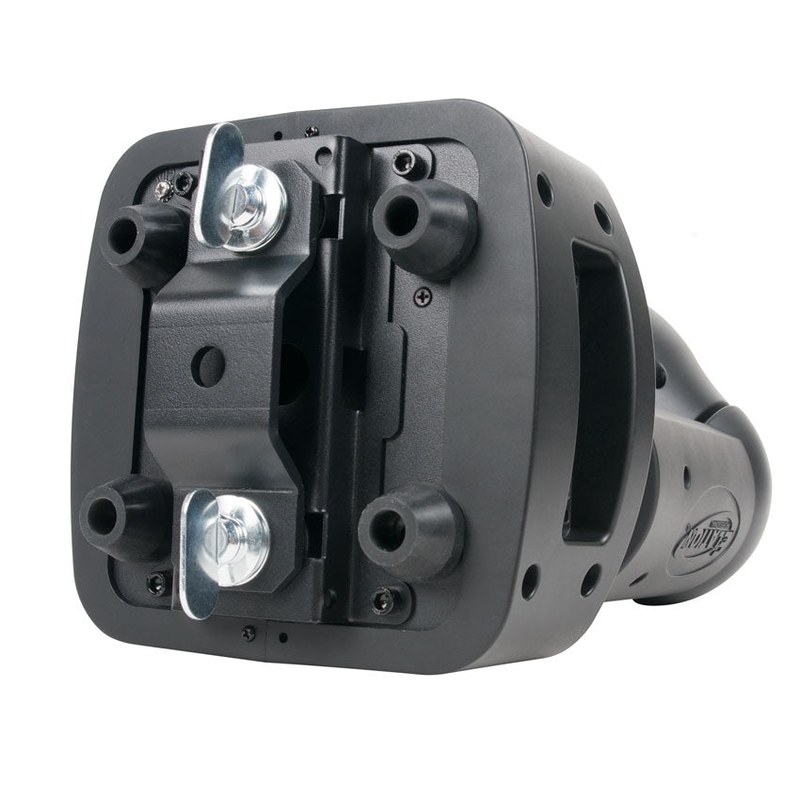

Elation ACL 360i LED Lighting Fixture
The Elation ACL 360i is an LED lighting fixture from Elation. Elation lists the source as 60W RGBW 4-in-1 LED, 100,000 Hour Average LED Life. Published photometric data: 30,601 LUX 2,843 FC @6.6' (2m), 12,955 LUX 1,204 FC @9.8' (3m), 7,687 LUX 714 FC @13.1' (4m), 5,112 LUX 475 FC @16.4' (5m).
Control / connections covers (3) DMX Channel Modes (16 / 18 / 20), RDM (Remote Device Management), 6 Button Touch Control Panel, Full Color 180 deg Reversible LCD Menu Display. Listed length: 8.7" (222mm). Ordering code ACL 360I.
| Source | 60W RGBW 4-in-1 LED, 100,000 Hour Average LED Life |
|---|---|
| Photometric Data | 30,601 LUX 2,843 FC @6.6' (2m), 12,955 LUX 1,204 FC @9.8' (3m), 7,687 LUX 714 FC @13.1' (4m), 5,112 LUX 475 FC @16.4' (5m) |
| Effects | Strobe and Selectable Dimming Curves, Color Macros |
| Control / Connections | (3) DMX Channel Modes (16 / 18 / 20), RDM (Remote Device Management), 6 Button Touch Control Panel, Full Color 180 deg Reversible LCD Menu Display, 8 / 16 Bit Resolution Adjustable Moveme... |
| Length | 8.7" (222mm) |
| Width | 7.3" (186mm) |
| Vertical Height | 13.0" (330mm) |
| Weight | 11.5 lbs. (5.2 kg) |
