Dynacord TPC-1 5.7 in Touch Panel Controller

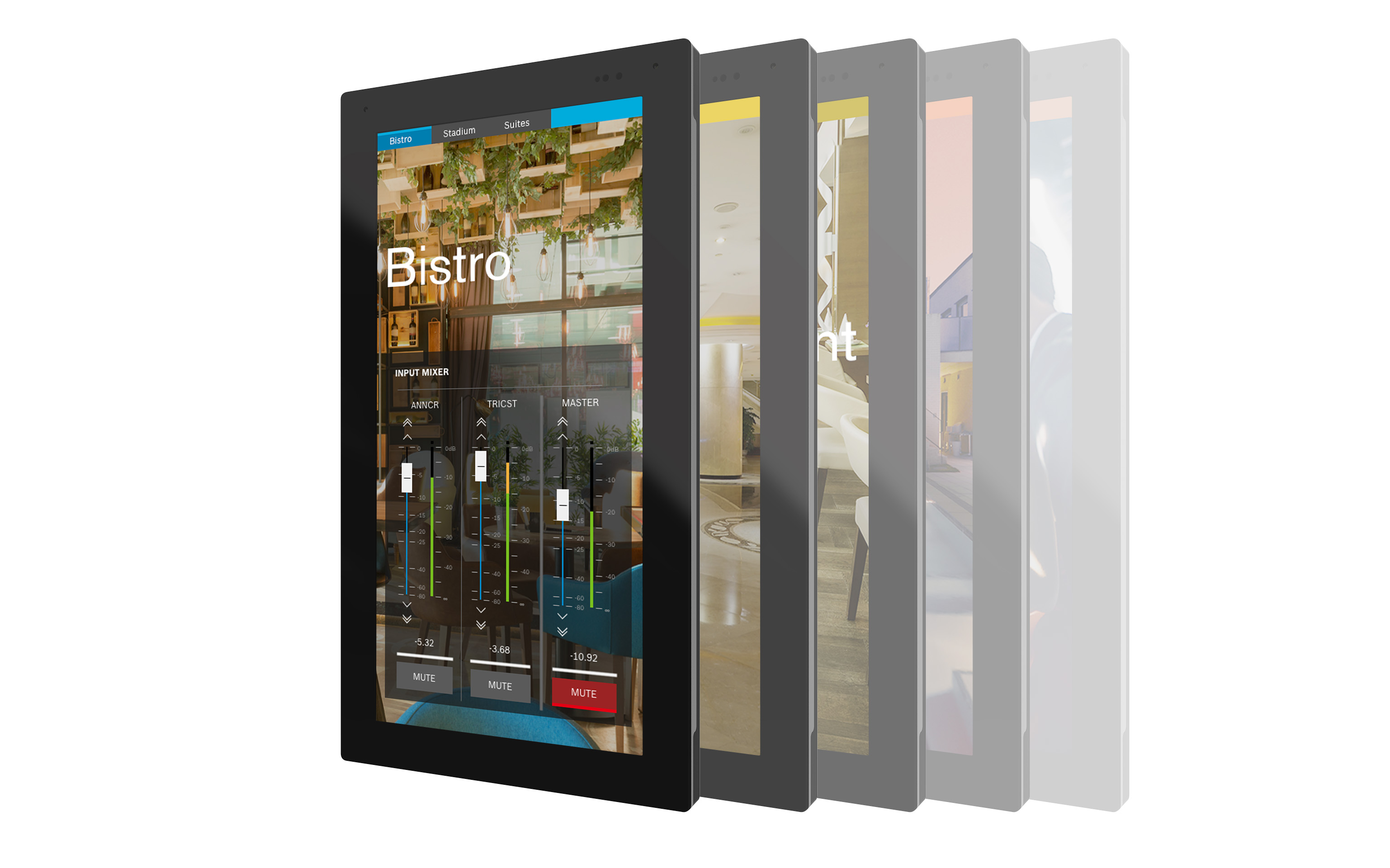

The TPC-1 is the in-wall touch panel for Dynacord's MXE series audio matrices. The interface is built in SONICUE sound system software (1.2 or higher), so an integrator hands the client a set of controls that match the room, with custom images and text in local languages rather than a generic device menu.

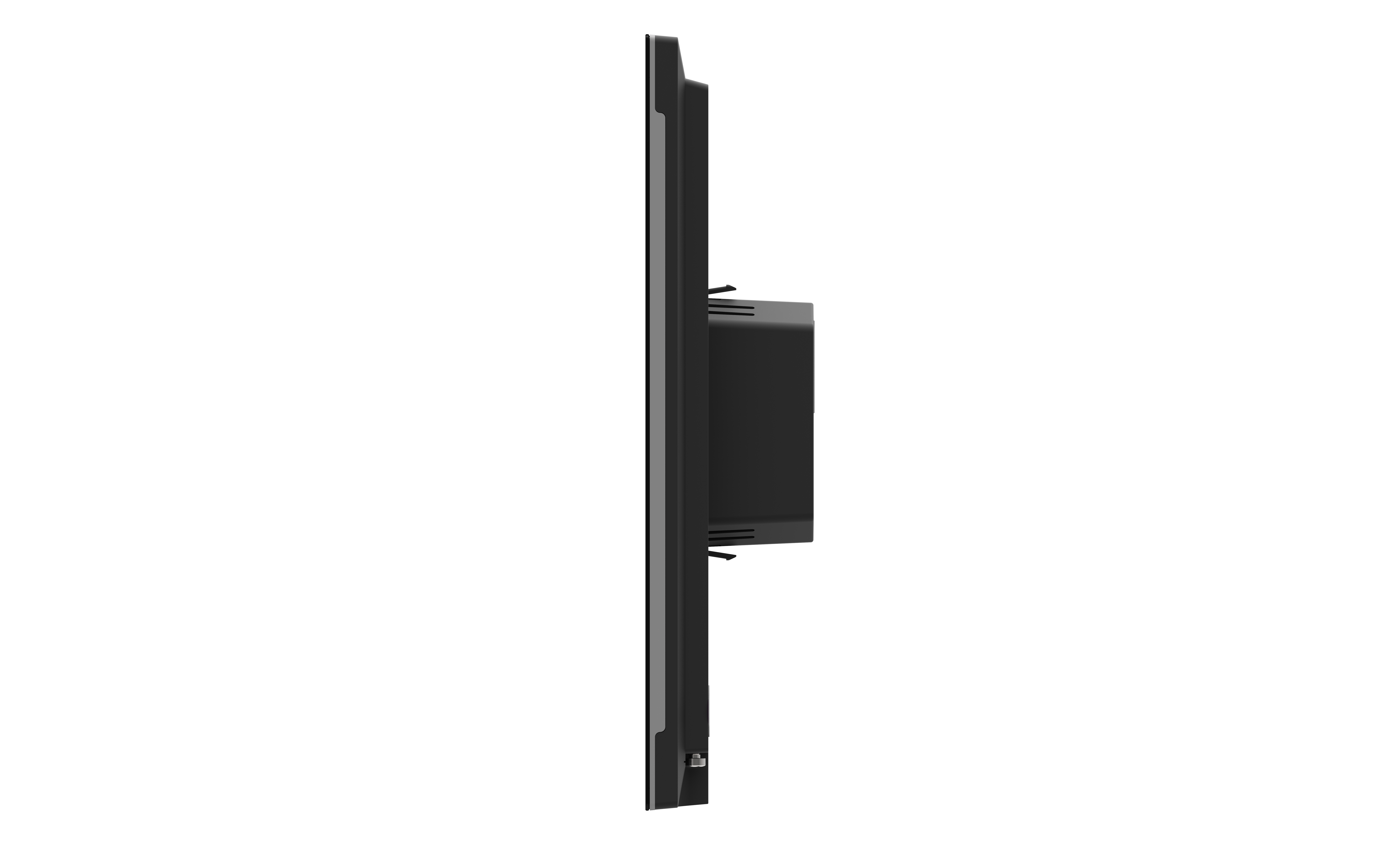

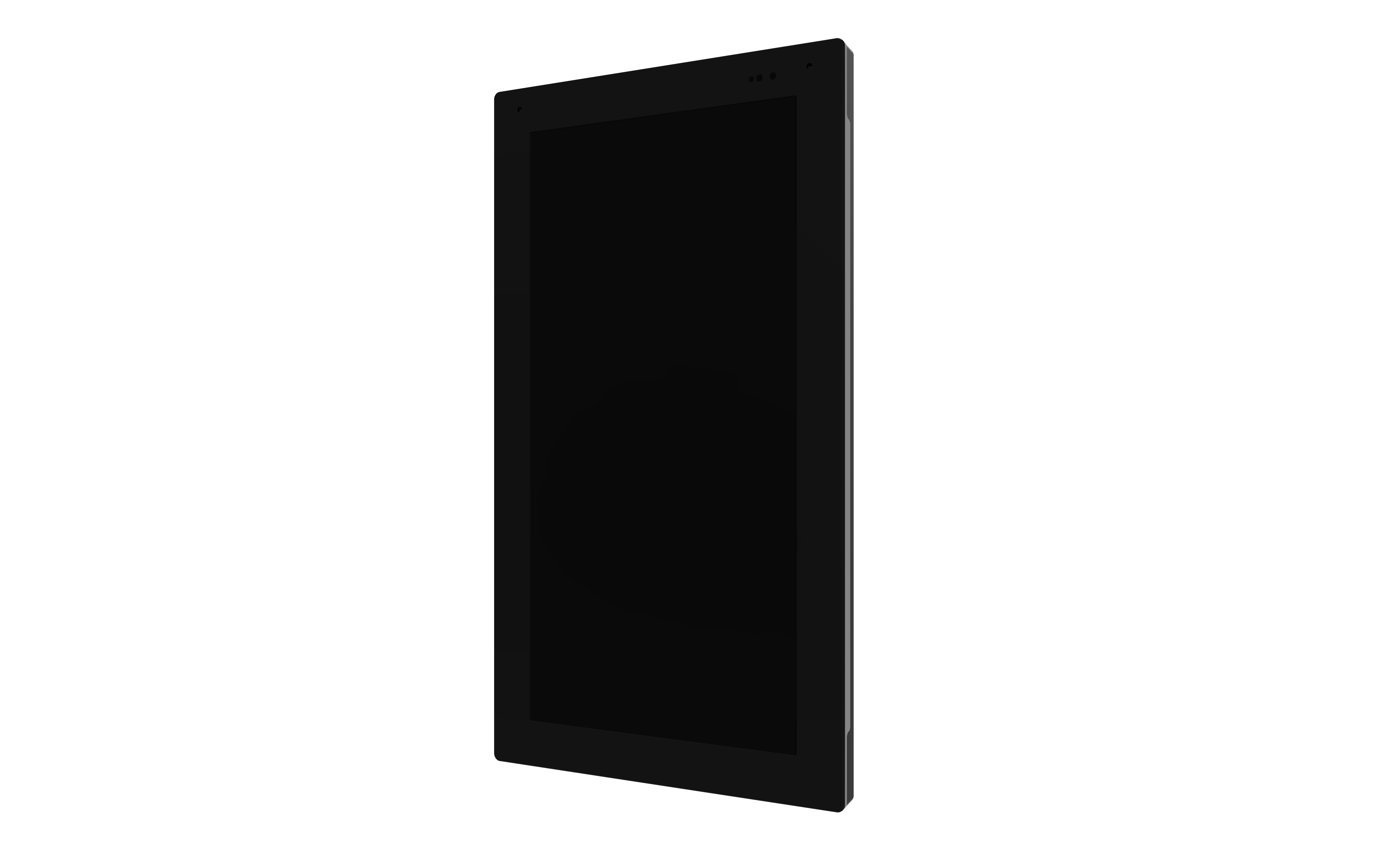

The display is a high definition 720 x 1440 IPS panel at 5.7 inches with 450 nits of brightness. Power comes over Ethernet, and universal mounting suits US single-gang, EU and UK wall boxes at only 25.4 mm (1 inch) of installation depth, which is what makes it fit shallow walls that would reject a deeper panel. A secured mounting plate provides theft protection.

Display	IPS 5.7"
Resolution	720 x 1440 px
Power over Ethernet (POE)	IEEE PoE 802.3af compliant via LAN port
Aux Power	+24 V DC (connector 5.5/2.5/12 mm), power supply not included
Power Consumption	Typical 6 W, Maximum 8 W
Dimensions (W x H x D inside/outside wall)	85.5 x 150.3 x 12.2 / 20.5 mm
Color	16.7 million
Brightness	450 nits
