Elgato Stream Deck Studio

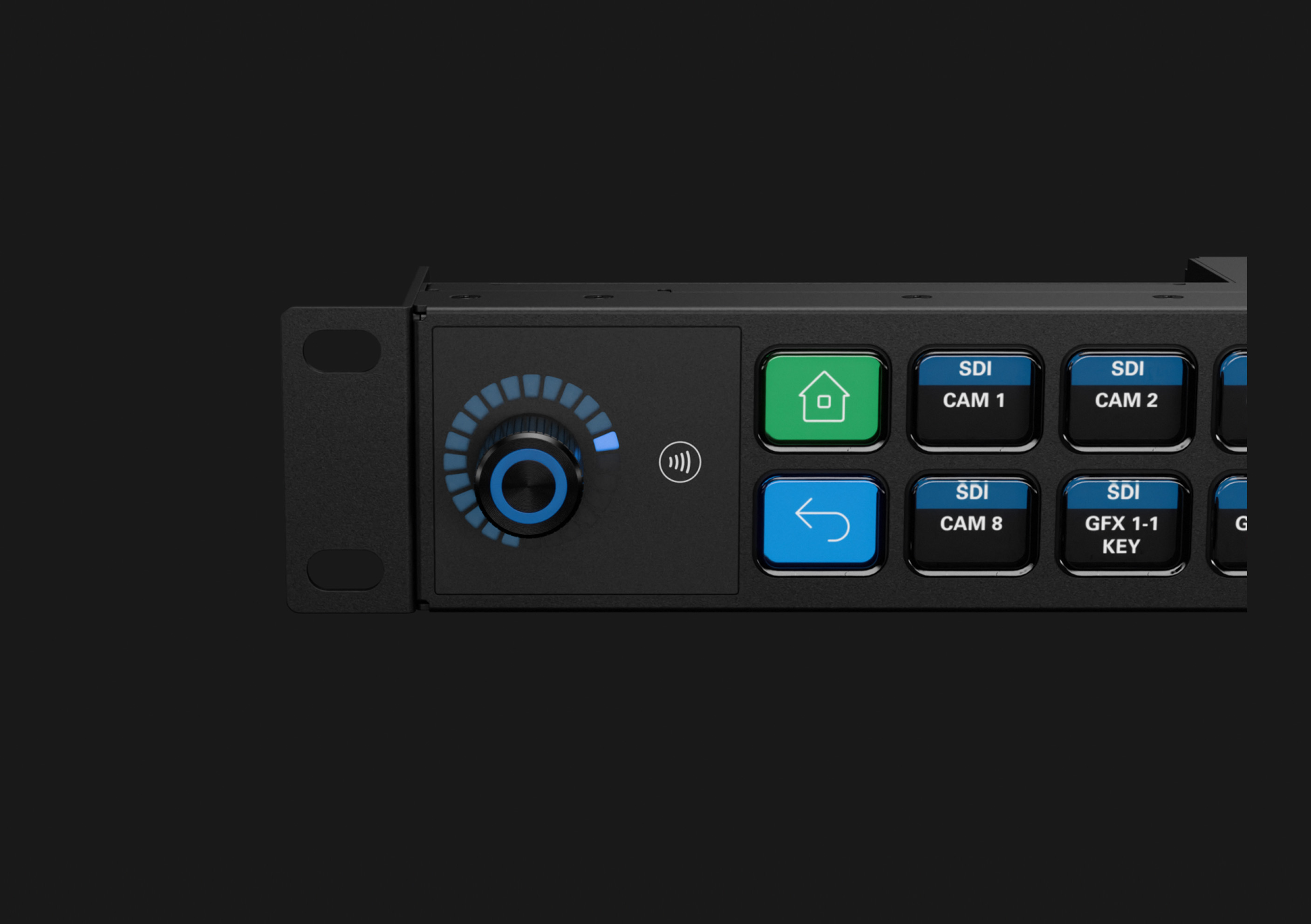

Stream Deck Studio moves the Stream Deck concept into a rack-ready broadcast panel: 32 customizable LCD keys and two 360-degree push encoders with LED rings, run through Bitfocus Companion to drive complex switcher, router, and production workflows from a single surface. Crosspoint routing, tally management, and NMOS/ST 2110 support put it in the same conversation as dedicated broadcast control panels rather than a desktop streaming accessory.

It is powered and networked over a single RJ45 PoE+ (802.3at Class 4, 100 Mb/s) connection, or over USB-C PD 3.0 when PoE is not available, drawing up to 15W. SNMP monitoring, API access, NFC authentication, and device stacking round it out for control rooms running more than one panel.

  • Dimensions447 x 80 x 44 mm (17.6 x 3.1 x 1.7 in)
  • ConnectionRJ45 Ethernet PoE+ (100 Mb/s) or USB-C
  • PowerPoE+ 802.3at Class 4, or USB-C PD 3.0 (9V, 3A); up to 15 W
  • Weight895 g (2 lb)
  • OS CompatibilityWindows 11+, macOS 13+
Keys32 customizable LCD keys
Encoders2, 360 deg with push function, LED indicator ring
ConnectionRJ45 Ethernet + (100 Mb/s) or USB-C
PowerPoE+ 802.3at Class 4, or USB-C PD 3.0 (9V, 3A); up to 15 W
Dimensions447 x 80 x 44 mm (17.6 x 3.1 x 1.7 in)
Weight895 g (2 lb)
ProtocolsNMOS/ST 2110, SNMP monitoring, API access
OS CompatibilityWindows 11+, macOS 13+
Control SoftwareBitfocus Companion
