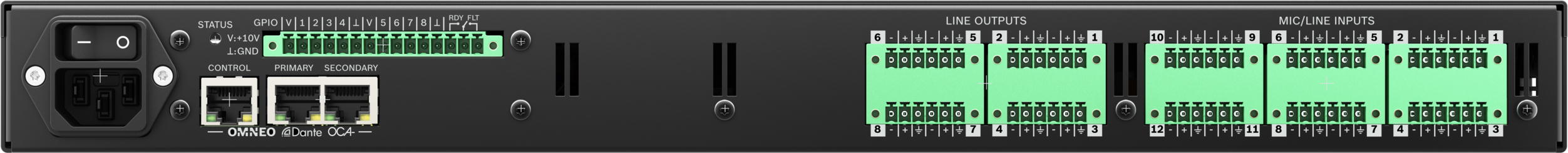

Dynacord MXE5-64 Matrix Mix Engine

The MXE5-64 is a performance audio matrix built for fixed-installation projects that need a control center and communications hub in one frame, running at 48 or 96 kHz with SONICUE Sound System Software for setup and supervision. Twelve mic/line analog inputs with switchable 48V phantom power and eight line outputs sit alongside 64x64 channels of Dante audio (64 Flows) at either sample rate, and eight GPIO ports handle digital in/out and analog control for contact-closure integration.

Inside, the matrix is flexible up to 3,860 cross-points across 256 signal paths, processed at 32/40-bit floating point for better than 118 dB signal-to-noise and under 0.002 percent THD+N. Latency stays under 0.22 ms at 96 kHz or 0.45 ms at 48 kHz, with a maximum I/O level of +22 dBu, and the whole engine fits a single rack space.
