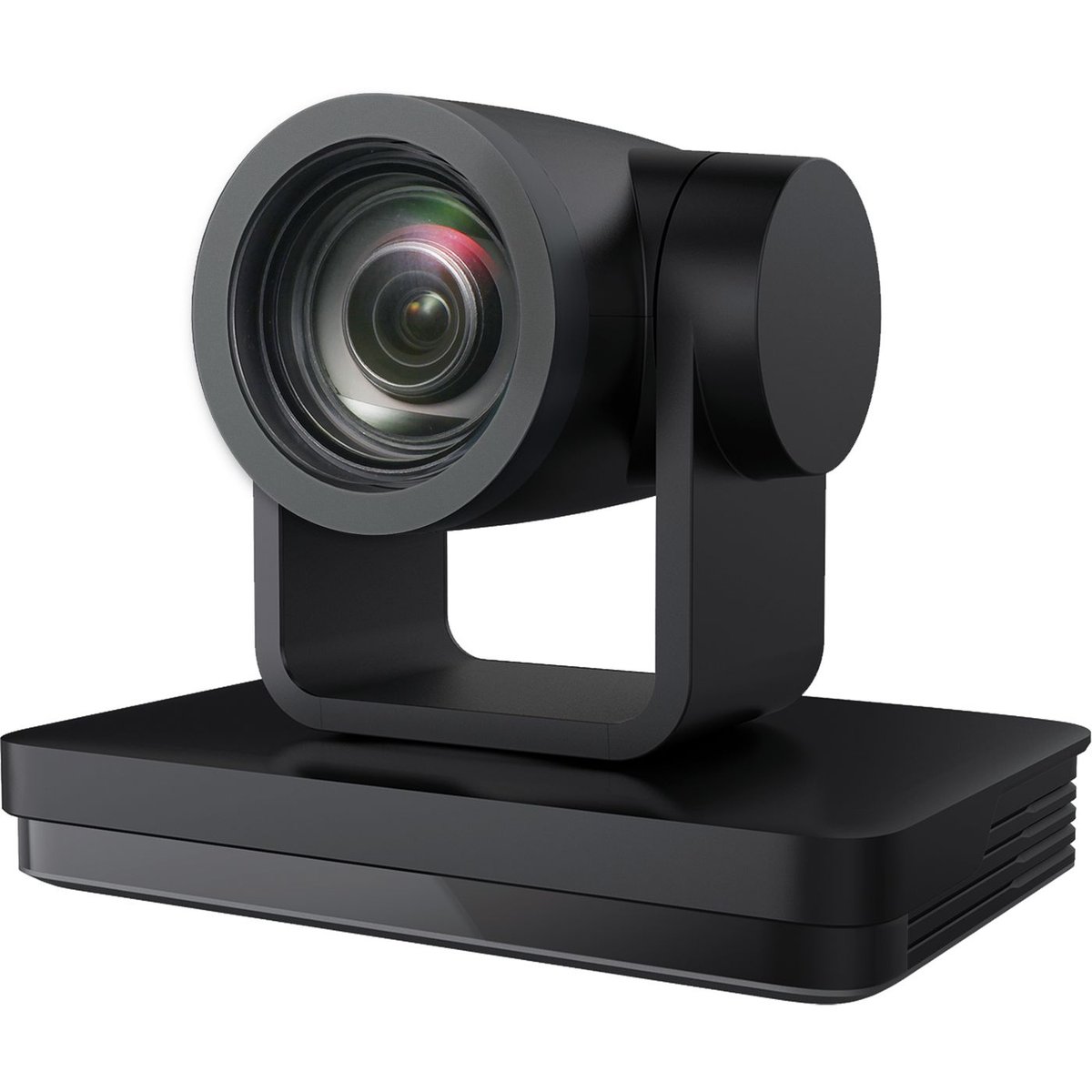

DVDO C4-1 Full HD PTZ Camera with HDMI/IP/3G-SDI/USB & AI Auto Tracking
The C4-1 is DVDO's Full HD PTZ Camera with HDMI/IP/3G-SDI/USB & AI Auto Tracking, from the cameras line. Full HD Resolution: 1/2.8 inch high quality CMOS sensor. Resolution up to 1920x1080 with frame rate up to 60 fps.
Lens: 20x optical zoom lens; 3.2 deg (N) / 56 deg (W) FOV; Auto Focus. Low Noise: Advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity. Video output interfaces: HDMI, SDI, USB3.0, LAN. Simultaneously output: audio and video signal via HDMI, SDI and LAN. LAN interface support POE. Audio/Video Compression Standards: H.264/H.265 video compression, up to 1920 x 1080 resolution 60 fps.
| Video | Full HD Resolution: 1/2.8 inch high quality CMOS sensor. Resolution up to 1920x1080 with frame rate up to 60 fps |
|---|---|
| Optics | Lens: 20x optical zoom lens; 3.2 deg (N) / 56 deg (W) FOV; Auto Focus |
| Feature | Low Noise: Advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity |

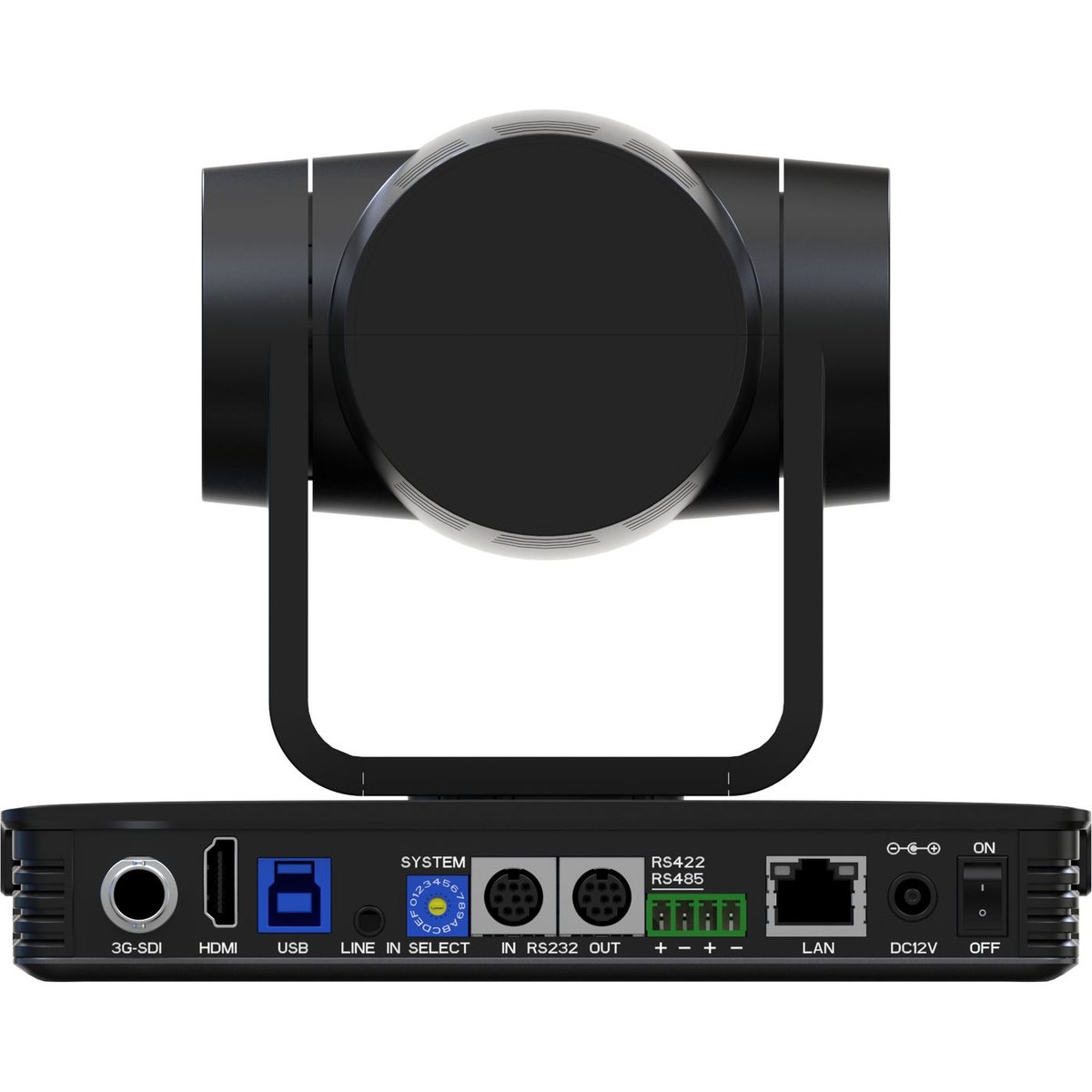

| Connectivity | Video output interfaces: HDMI, SDI, USB3.0, LAN |
| Audio | Simultaneously output: audio and video signal via HDMI, SDI and LAN. LAN interface support POE |
| Performance | Audio/Video Compression Standards: H.264/H.265 video compression, up to 1920 x 1080 resolution 60 fps |
| Networking | USB3.0 Support Dual Coding Stream: main, sub & simultaneous output; YUY2, MJPEG, H.264, NV12 & H.265 video coding format |
| Also | Built-in Gravity Sensor: PTZ auto-flip function and easy installation |
| Control | Control Interface: RS422 is compatible with RS485, RS232-IN, RS232-OUT, and the RS232 interface supports cascading |
| Product Category | Cameras |
| Part Number | DVDO-C4-1-B |
