Datavideo TPC-700P Touch Panel Controller with PoE

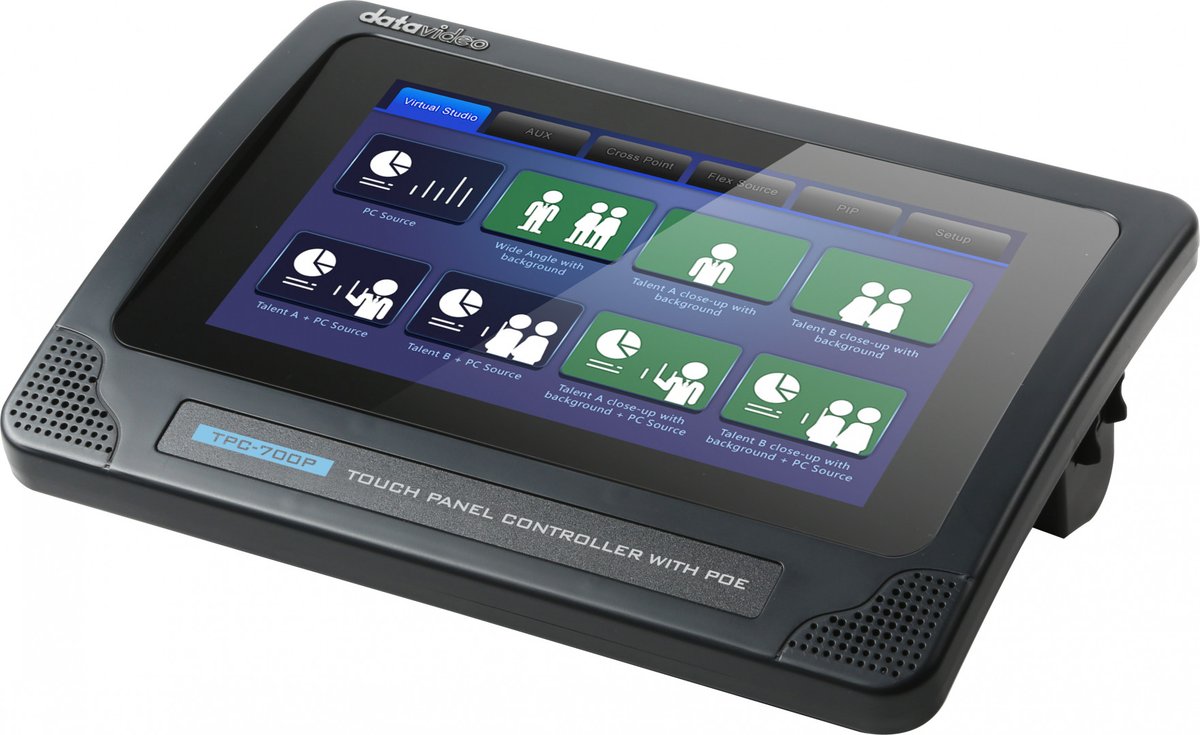

The TPC-700P puts switching, recording and streaming controls on a 7 inch capacitive touch screen instead of a laptop. It ships with apps for the SE-3200, VGB-2000 and TVS-2000A that carry presets for the operations those systems are used for, so a volunteer operator gets a short list of large buttons rather than a full control surface.

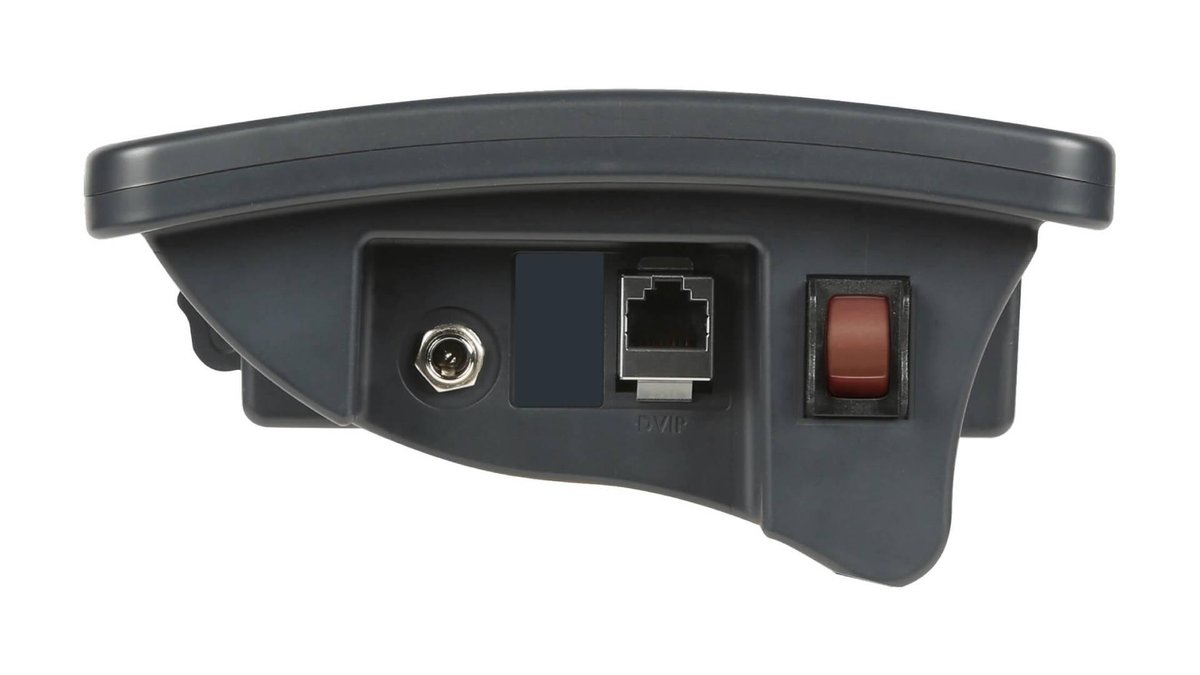

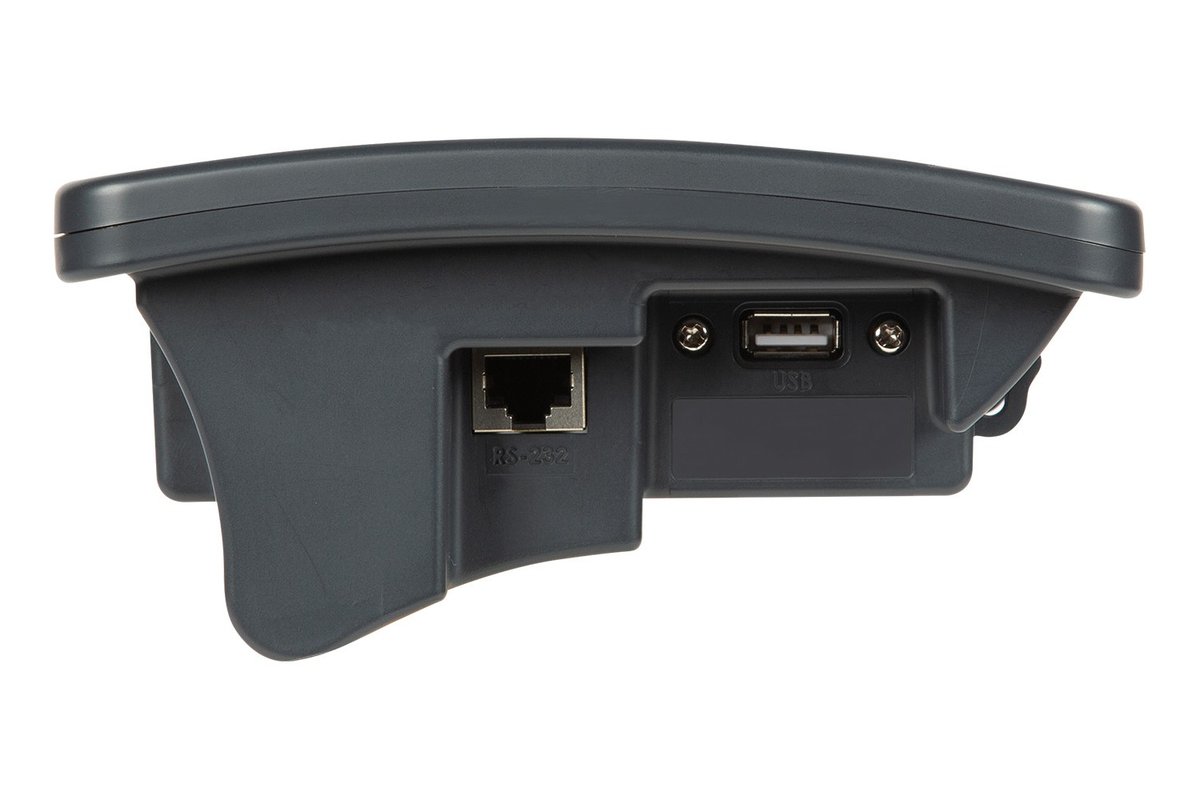

It also drives the iCast 10NDI all-in-one streaming switcher, the VGB-4000 Pro presentation system and the DVK-400 4K chromakey unit. Control is RS-232 on an RJ-45, power is 802.3af PoE or 12V DC at 10W, and firmware updates run over USB 2.0. The panel is 220 x 152 x 79 mm and 0.85 kg.
