Datavideo PTC-140TW

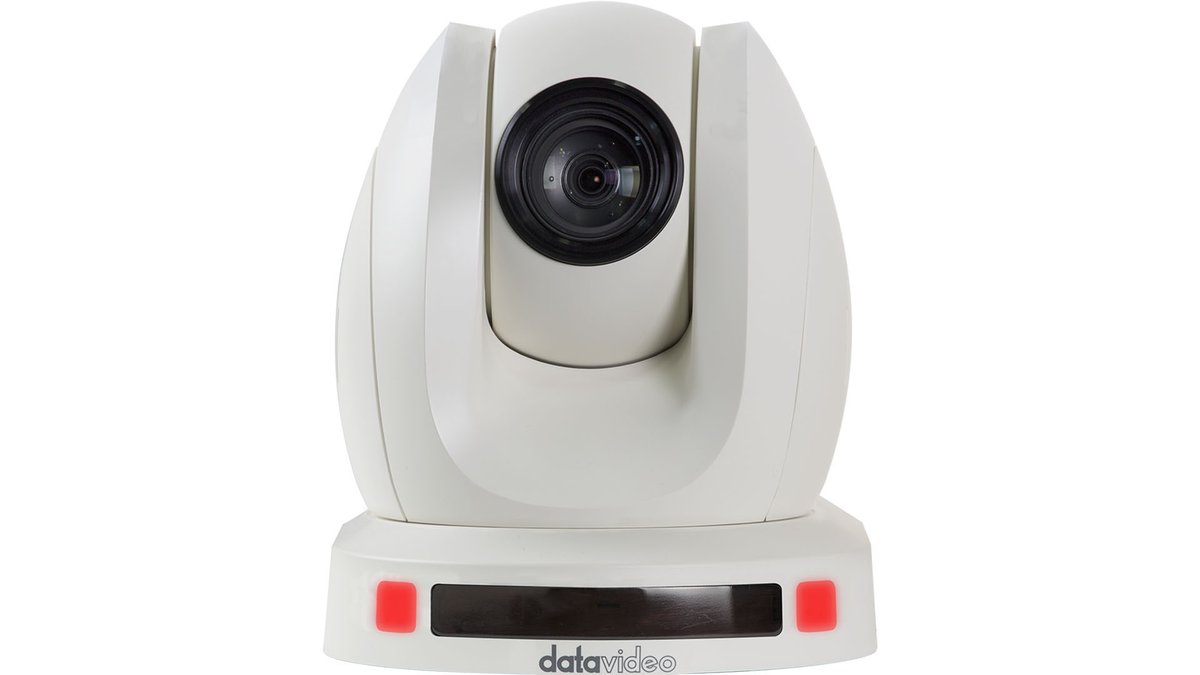

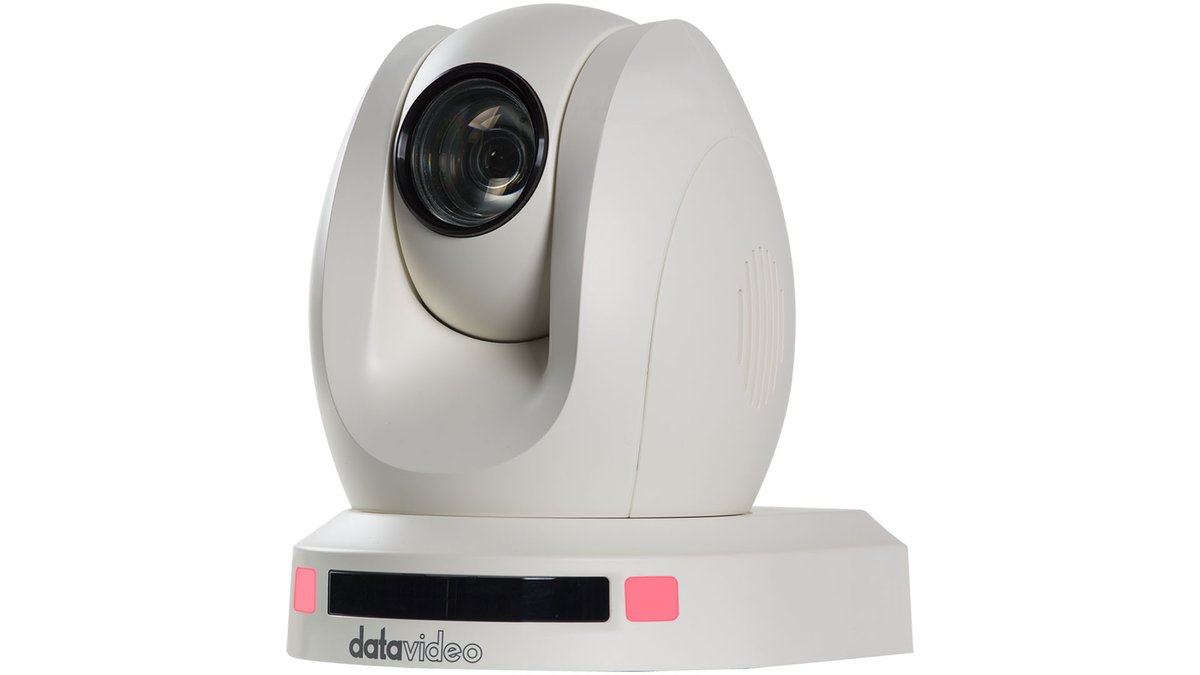

The PTC-140TW is the white-finish HDBaseT version of Datavideo's 20x HD PTZ camera, built to pair with the HS-1500T and HS-1600T portable studios. Its 1/2.8 inch CMOS sensor shoots 1080p, 1080i, or 720p, and a 20x optical zoom (plus 10x digital) reaches across a room or a sanctuary to frame a tight shot from the back wall. The white body blends into a house of worship or corporate set where a black camera would stand out.
The HDBaseT design is the point: video, power, and control all travel over a single CAT6 run up to 100 meters back to the switcher, so one cable ties the camera to the studio. This model ships without the HDBaseT receiver box and power supply because those live in the HS-1500T and HS-1600T, so it is meant to be used only with those systems. It carries 255 presets, a tally light, and accepts DVIP-over-LAN, RS-232, and IR control, and a wireless remote is included.
| Type | HDBaseT PTZ camera, white finish |
|---|---|
| Sensor | 1/2.8 inch CMOS, 1920x1080 |
| Zoom | 20x optical, 10x digital |
| Video Formats | 1080p, 1080i, 720p |
| Camera Outputs | 3G-SDI and HDMI (over HDBaseT) |
| Transmission | HDBaseT single CAT6 up to 100 m |
| Compatibility | HS-1500T / HS-1600T only (no receiver box or PSU included) |
| Control | DVIP over LAN, RS-232, IR; 255 presets, tally, wireless remote |
