Draper Acumen E 133" (65 x 116) 16:9 Surface-Mounted Electric Projection Screen

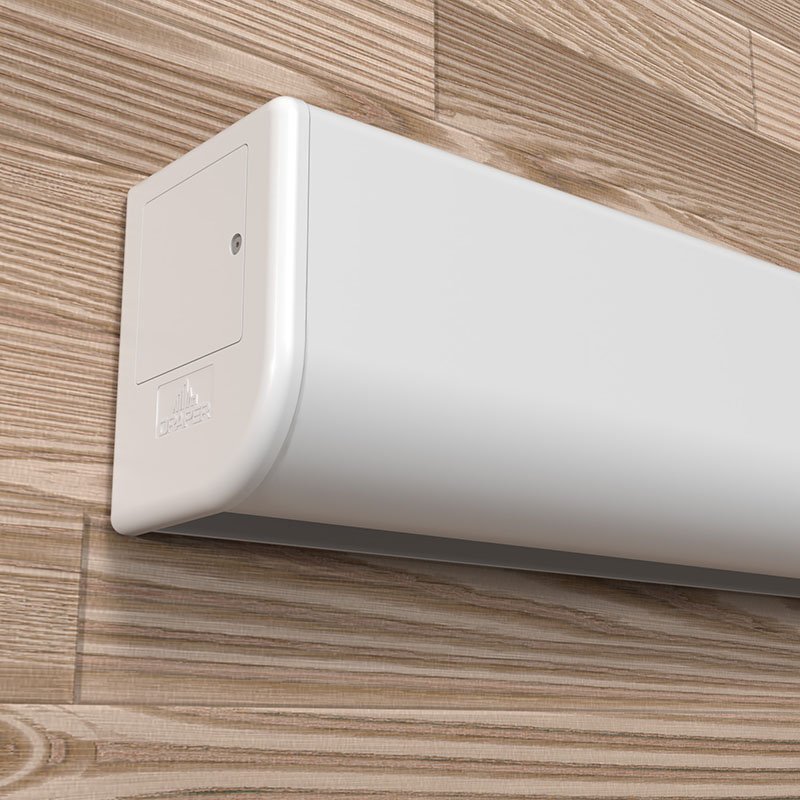

Acumen E hangs free on a wall or ceiling in a contoured extruded aluminum case that is meant to be seen, which is the point in a room with no ceiling void to recess into. This one gives you 65 x 116 inches of viewable image in Draper's 16:9 format, 133 inches on the diagonal, and the case runs 134 3/4 inches end to end. It ships with a built-in low-voltage controller rather than a bare motor and switch.

This size is built on Matt White XT1000E as the base fabric, with 2 alternate surfaces also available: Contrast Grey XH800E, ClearSound White Weave XT900E. A quiet motor can be specified on any surface. The screen weighs 93 pounds and ships at 133 pounds. Both floating mounting brackets and ceiling suspension brackets are in the box.

Viewable Image133 in diagonal, 65 x 116 in
Aspect Ratio16:9 (HDTV format)
Base SurfaceMatt White XT1000E
Surface OptionsMatt White XT1000E, Contrast Grey XH800E, ClearSound White Weave XT900E
Voltage110V
Case Length134 3/4 in
Product Weight93 pounds
Shipping Weight133 pounds
