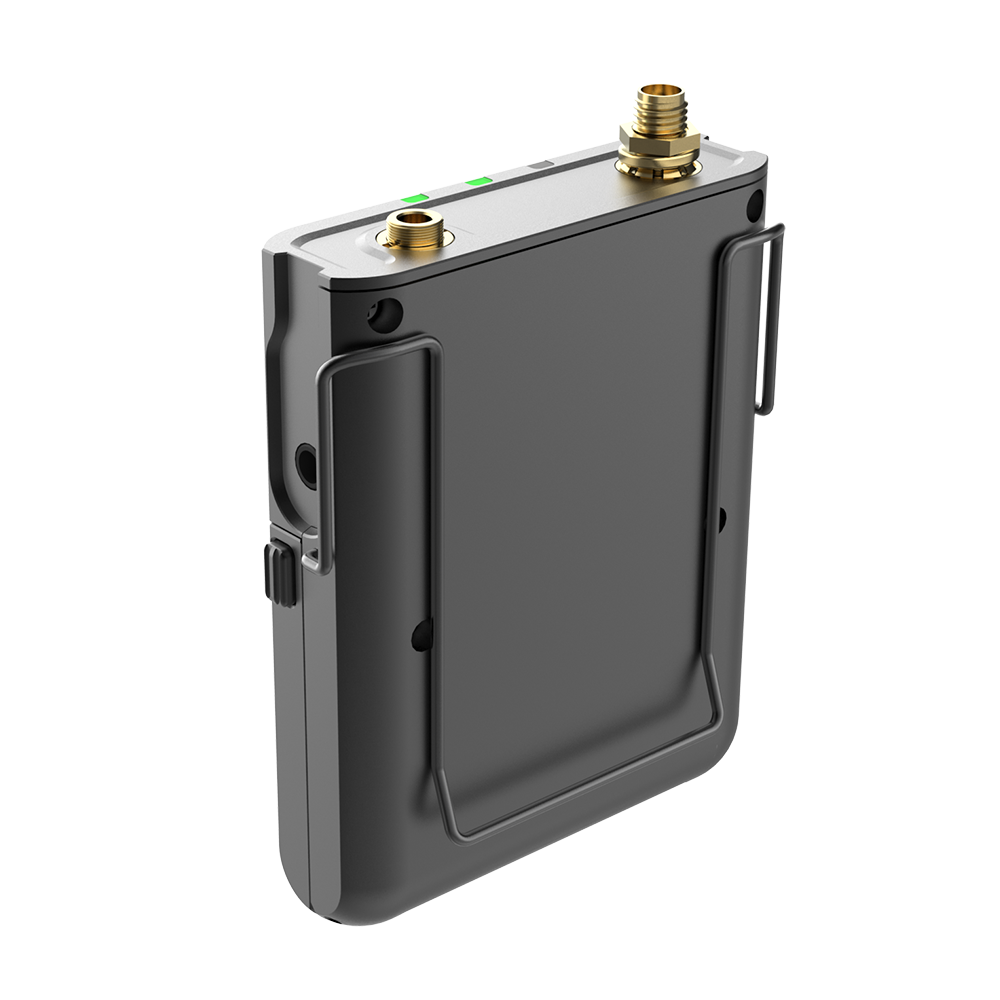

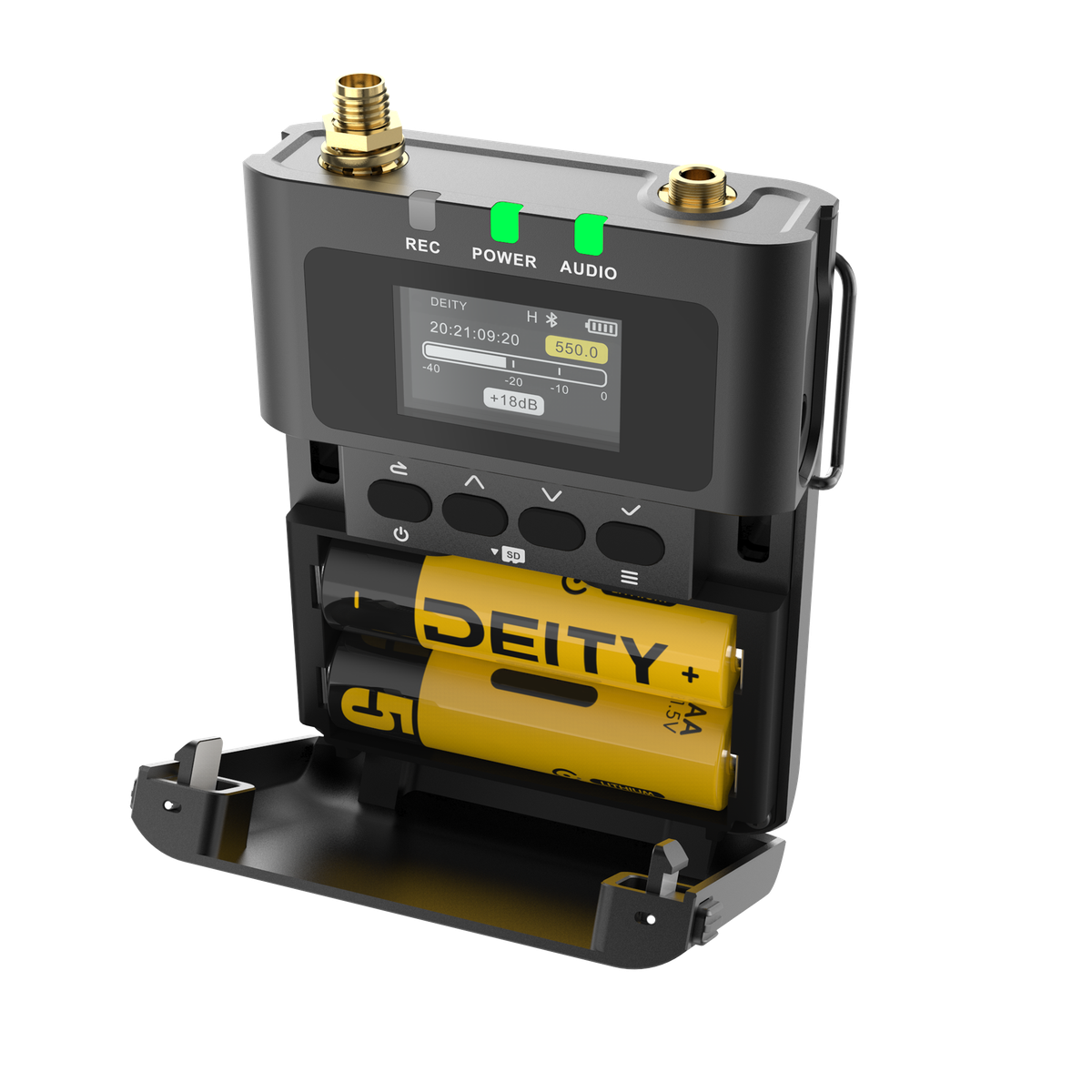

Deity THEOS DBTX Digital Wireless Bodypack Transmitter

The DBTX works across a 550 to 960 MHz spectrum rather than the crowded 2.4 GHz band, with 100 kHz frequency steps, 700 kHz spacing and switchable RF power from 10 to 100 mW into an SMA antenna port. Because the antenna is removable, it can be tuned for a band or replaced when it takes a knock, and it packs flatter in a case.

It also records. A microSD card up to 128 GB takes 24-bit or 32-bit float BWF WAV as an isolated backup of the same input the receiver hears, and the transmitter jams timecode wirelessly from a Deity TC-1 or over its 3.5 mm jack from a third-party generator, so that backup lands in sync in post. Gain, low cut and the rest are reachable from the Sidus Audio app without touching the pack on a subject. Input is a 3.5 mm TRS with 3 V or 5 V bias or line level.

RF Spectrum550 - 960 MHz (subject to local regulation)
RF Power10 / 25 / 50 / 100 mW
RF Frequency Step / Spacing100 kHz / 700 kHz
Antenna Connector50 Ohm SMA
Dynamic Range123 dB
Frequency Response20 Hz - 20 kHz
Microphone Input3.5 mm TRS, MIC-3V / MIC-5V / line, 0 to +30 dBV gain
Internal RecordingmicroSD, BWF WAV, 24-bit or 32-bit float
TimecodeLTC (SMPTE), 0.15 ppm, 23.98 - 30DF
Dimensions88.45 x 65 x 17.8 mm
