Deity Active Antenna RF Distribution Kit (SRD-Mini + 2x SF1)

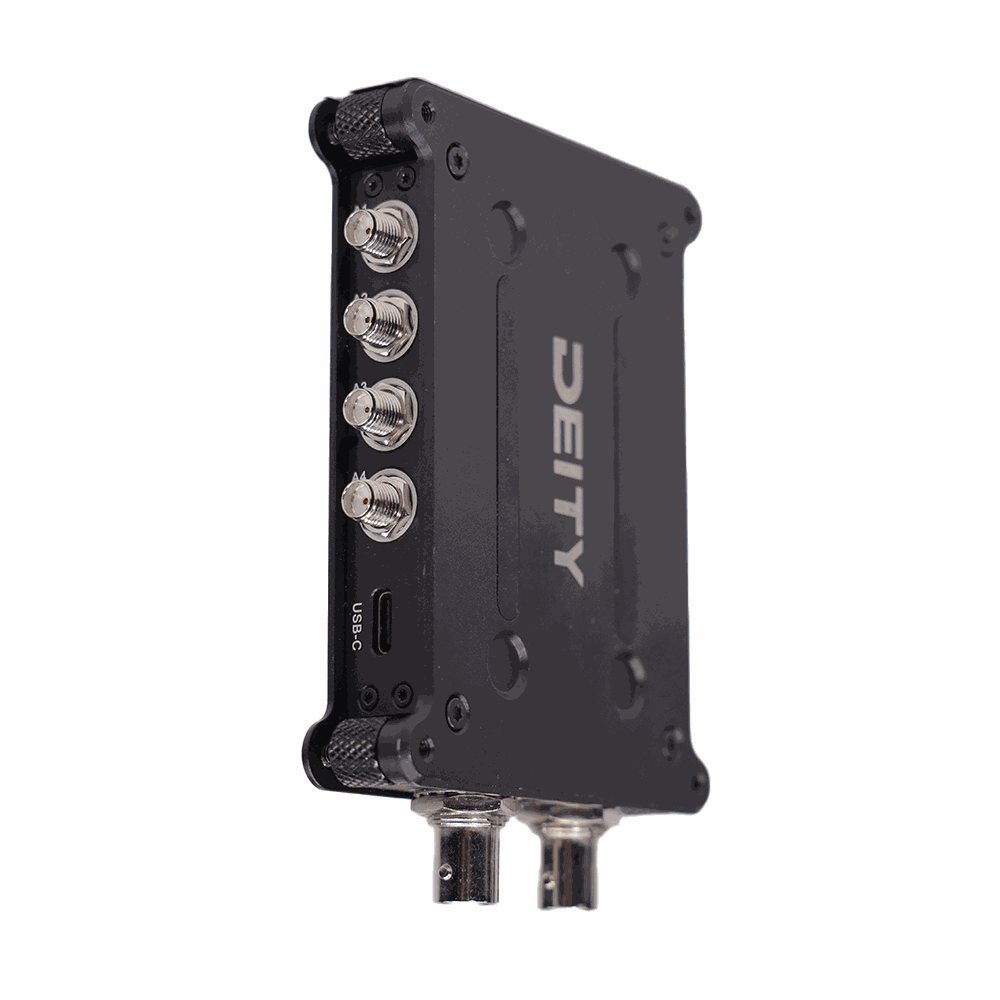

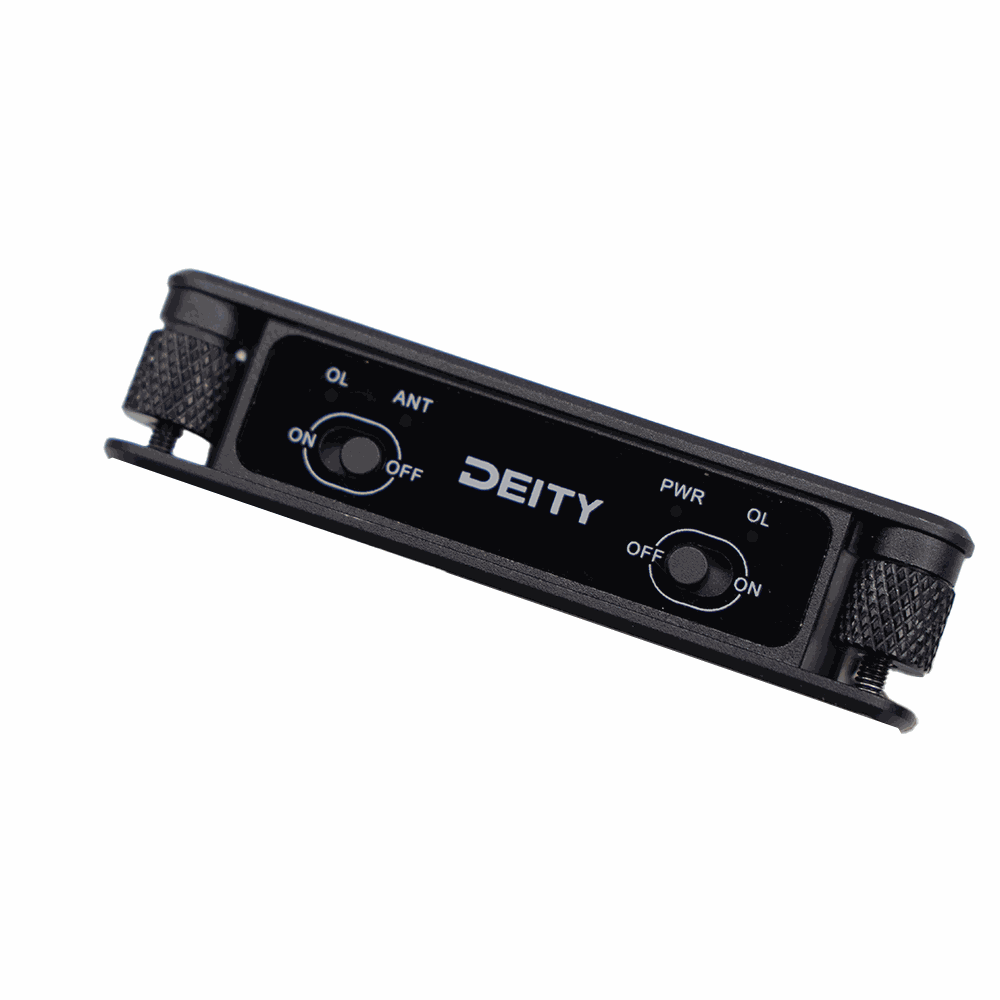

This kit pairs the SRD-Mini active antenna splitter with two SF1 directional antennas, covering antenna reception for a full cart of wireless receivers in one purchase. The SRD-Mini takes two antenna inputs and splits each across four outputs, a 2-into-8 distribution that feeds eight receivers off two well-placed antennas instead of a forest of whips, and its active design compensates for the line loss a passive splitter would otherwise cost each output.

The two SF1s point reception at the stage or set rather than picking it up from every direction, which cuts down the RF noise a receiver has to fight through in a crowded venue. Each SF1 carries an integrated amplifier for -9 to +21 dB of gain in 1 dB steps, or about 6 dBi passively if left unpowered. Both antenna types work across the 470 MHz to 1 GHz range the SRD-Mini splits, so the kit covers a UHF wireless system without hunting for compatible parts separately.
