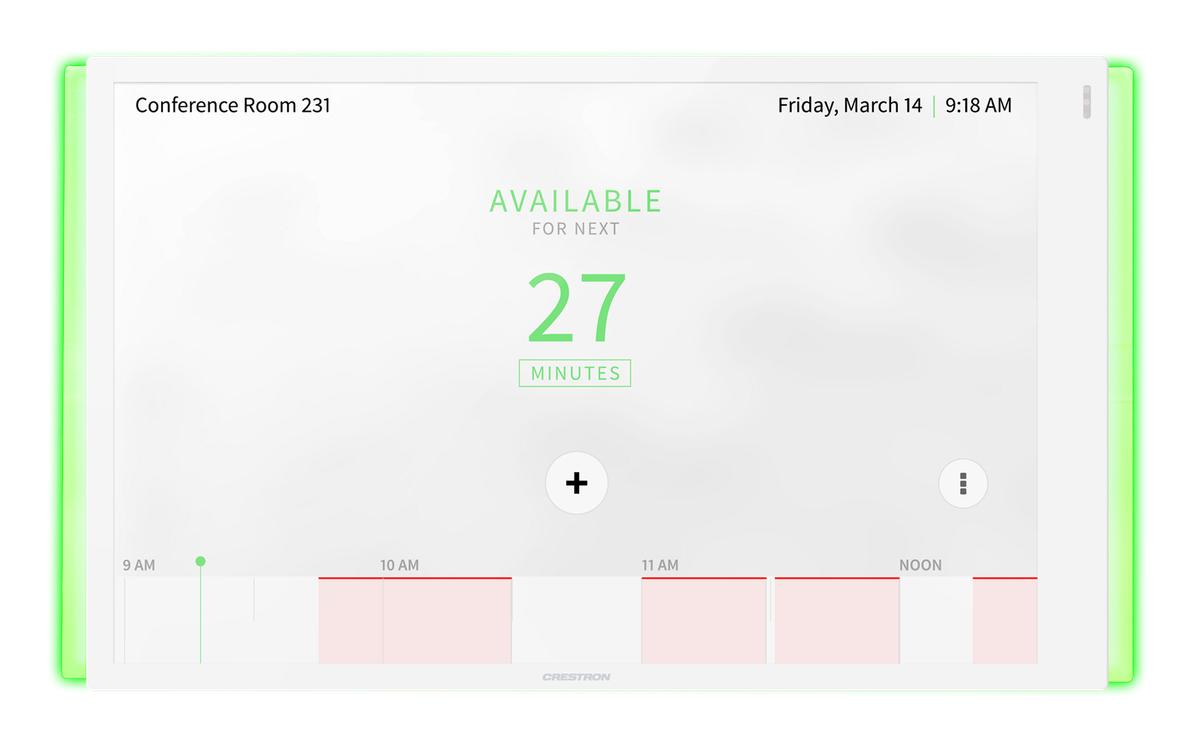

Crestron TSS-1070-LB KIT 10.1 in. Room Scheduling Touch Screen with Light Bar

This kit pairs the 10.1 in. TSS-1070 room scheduling panel with the matching TSW-1070-LB room availability light bar in one order. The light bar sits between the panel and the wall and casts 180 degrees of colour into the corridor, green for free and red for booked, which is what makes a room readable from down the hall rather than only at the door.

The panel connects straight to Crestron Fusion, Microsoft Exchange and 365, Google Calendar, CollegeNET 25Live, or Ad Astra, is set up in a browser, and is managed through XiO Cloud, so no control system is involved. A single Ethernet run carries data and PoE+ power for panel and light bar together; Crestron requires a PoE+ source whenever a light bar is fitted. Buying the kit keeps the black or white finishes matched across both parts.

Display	10.1 in. (257 mm) TFT active matrix color LCD, 1920 x 1200 WUXGA
Included	TSS-1070 scheduling touch screen and one TSW-1070-LB room availability light bar
Light Bar	RGB LED, alternating red and green availability indication, 180 degree visibility
Scheduling	Crestron Fusion, Microsoft Exchange and 365, Google Calendar, 25Live, Ad Astra
Network	100 Mbps Ethernet with PoE+, IEEE 802.11a/b/g/n/ac Wi-Fi
USB	(2) USB 2.0 Type-A host ports for scheduling accessories
Mounting	Surface mount over 2 or 3 gang US, 2 gang DIN 49073, or 2 gang BS 4662 box
Dimensions	5.87 in. H x 10.18 in. W x 2.28 in. D (149 x 259 x 58 mm)
