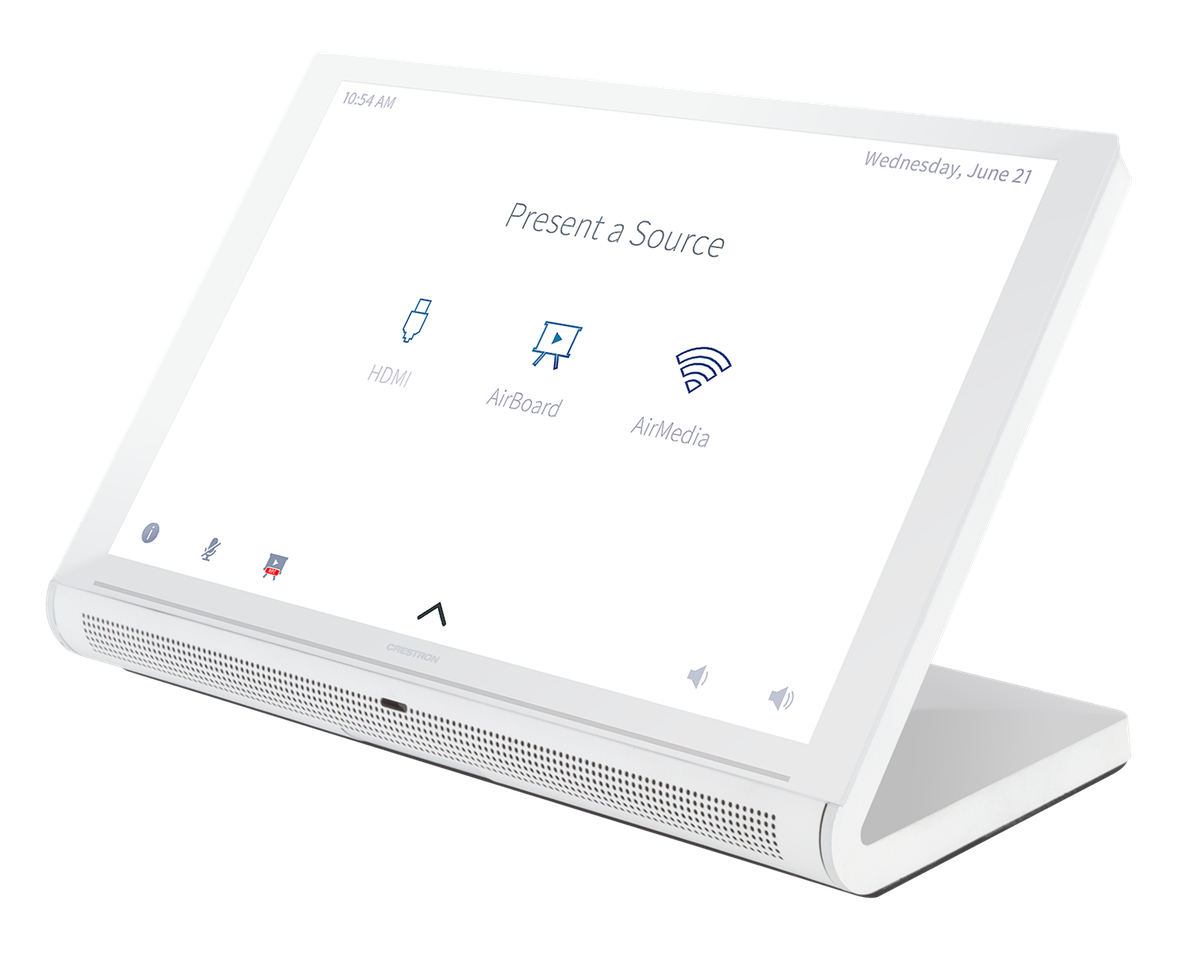

Crestron TS-1070 10.1 in. Tabletop Touch Screen
The TS-1070 is the 10.1 in. member of the TS-70 tabletop family, and the extra screen area is what you buy it for: a 1920 x 1200 WUXGA capacitive display at 400 nits with room for a full Smart Graphics or HTML5 page plus a scaled streaming video window. A built-in microphone drives multilanguage voice recognition and Rava SIP intercom, and native applications cover room scheduling, Zoom Rooms, Microsoft Teams, and Crestron Home.
Wiring is a single Ethernet run carrying control, PoE+ power, and H.265 or H.264 video from a camera, encoder, or DigitalMedia switcher. Dual-band 802.11ac Wi-Fi covers tables with no floor box, a Crestron Bluetooth beacon handles proximity detection, and a USB 2.0 Type-A host port accepts supported Crestron accessories. Enabling that USB port requires an 802.3at Type 2 PoE+ source.
| Display | 10.1 in. (257 mm) TFT active matrix color LCD |
|---|---|
| Resolution | 1920 x 1200 pixels, 16:10 WUXGA |
| Brightness | 400 nits (cd/m2), 1000:1 contrast |
| Touch Screen | Projected capacitive, 5-point multitouch capable |
| Video | H.265, H.264 (MPEG-4 part 10 AVC), MJPEG streaming decoder |
| Audio | Built-in microphone and speakers, Rava SIP intercom, voice recognition |
| Network | 100 Mbps Ethernet with PoE+, IEEE 802.11a/b/g/n/ac Wi-Fi |
| Power | IEEE 802.3at Type 2 PoE+ PD, 18 W with room scheduling and USB enabled |
| Dimensions | 5.29 in. H x 9.63 in. W x 4.67 in. D (134 x 245 x 119 mm) |
