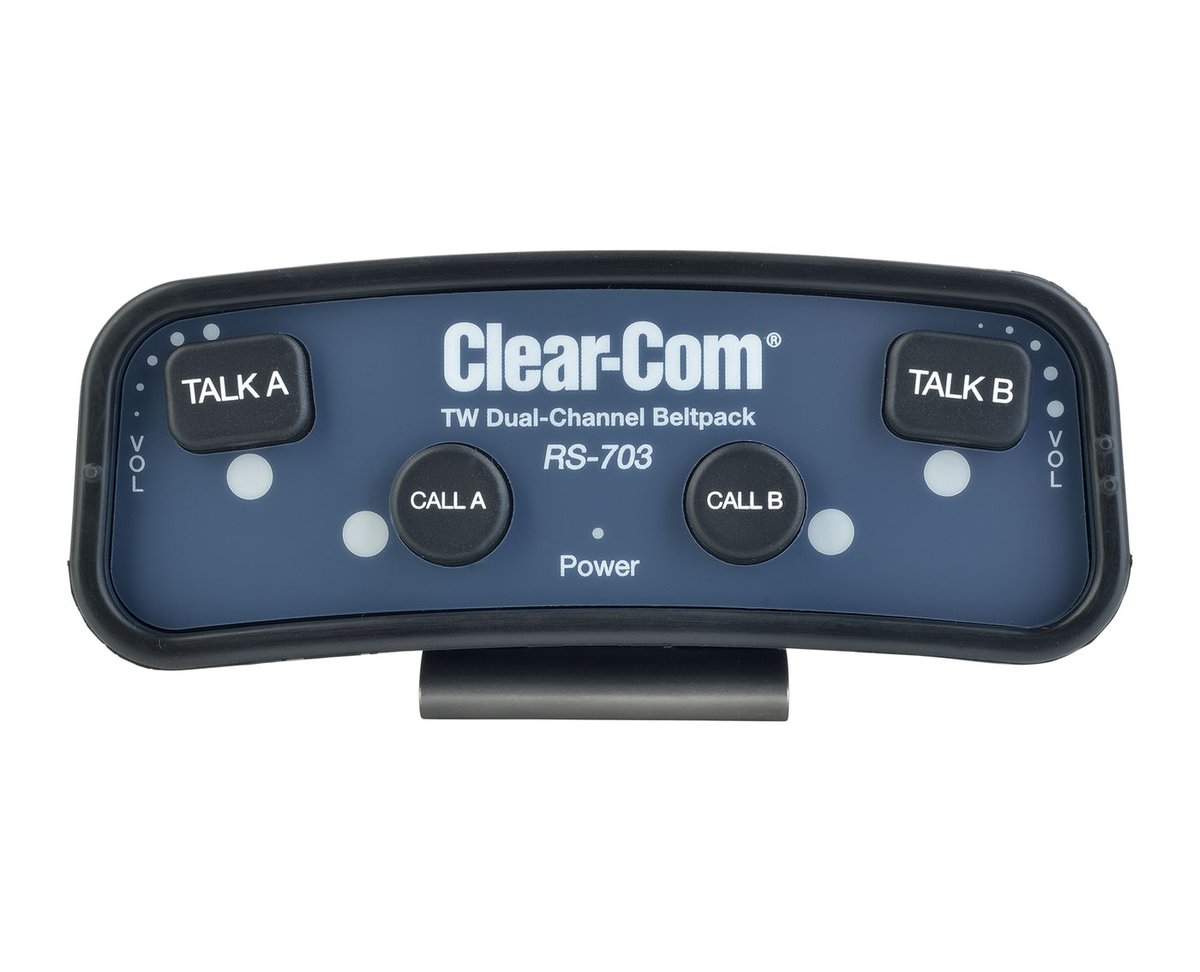

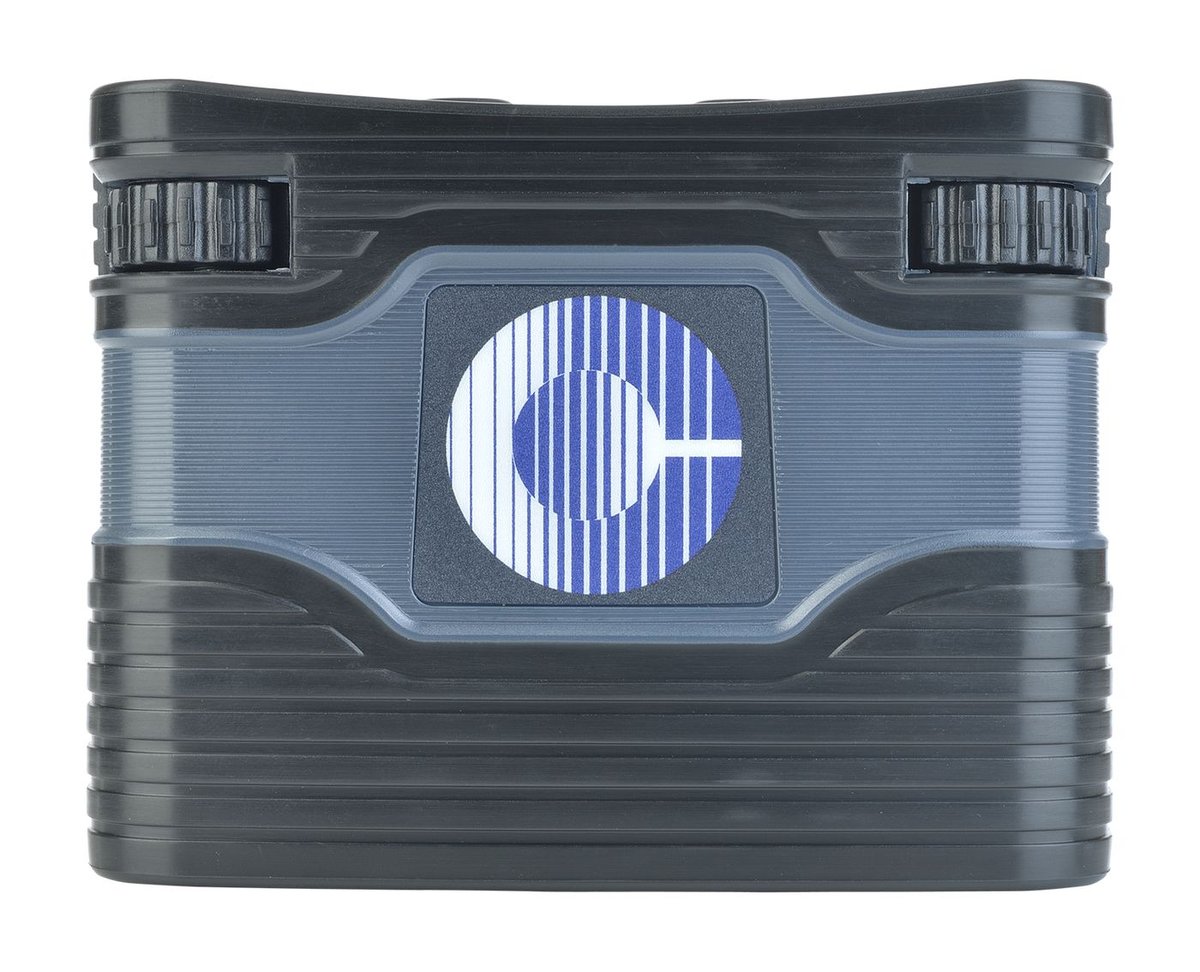

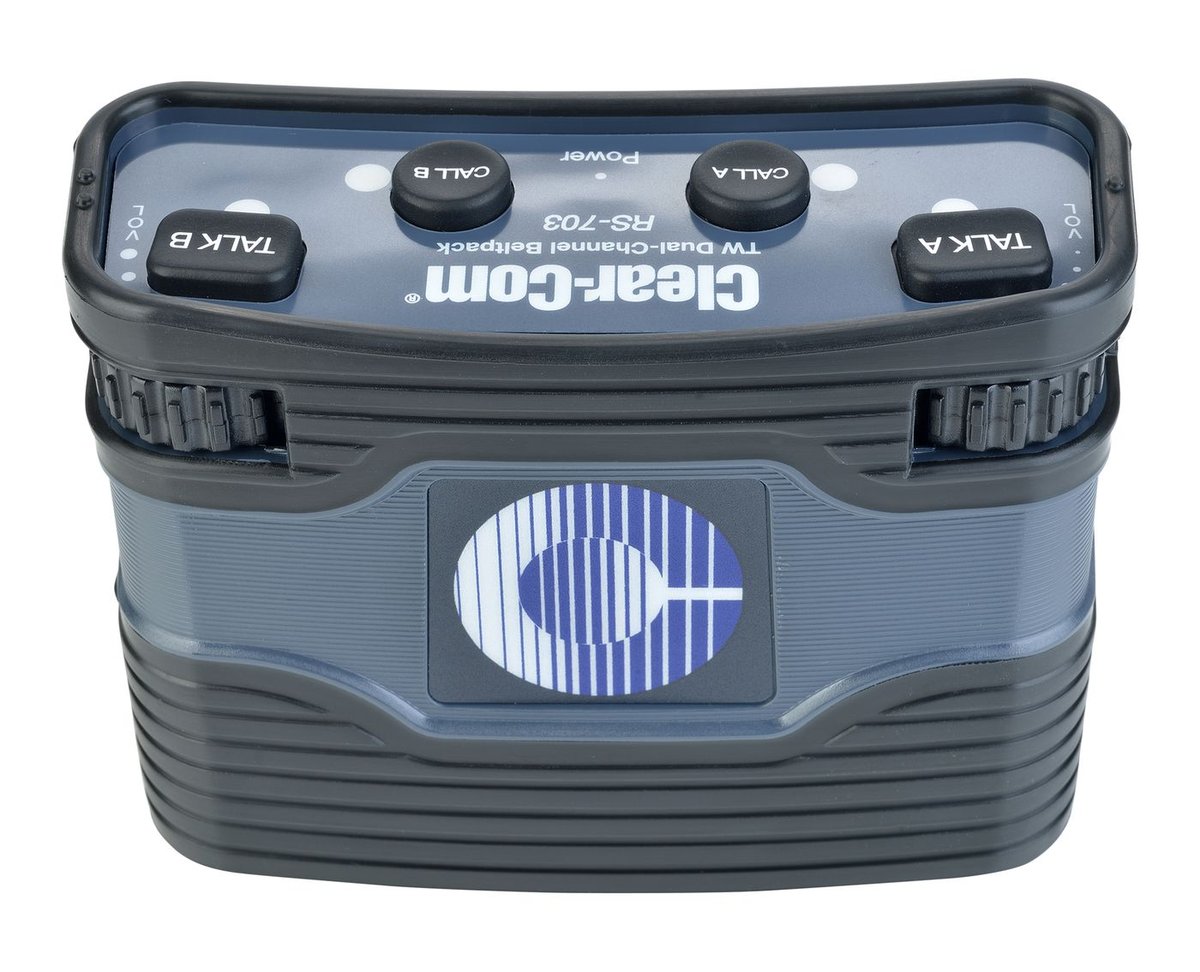

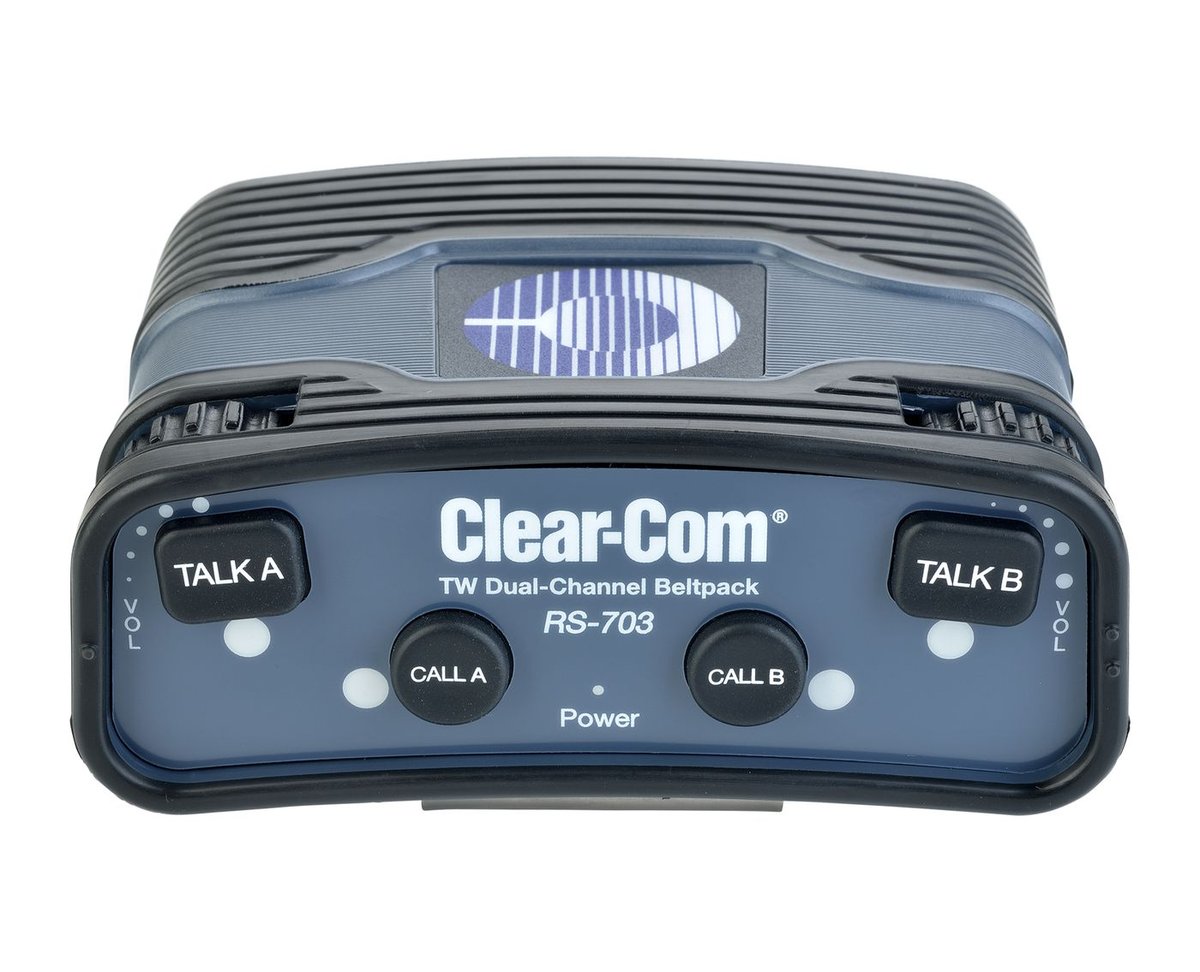

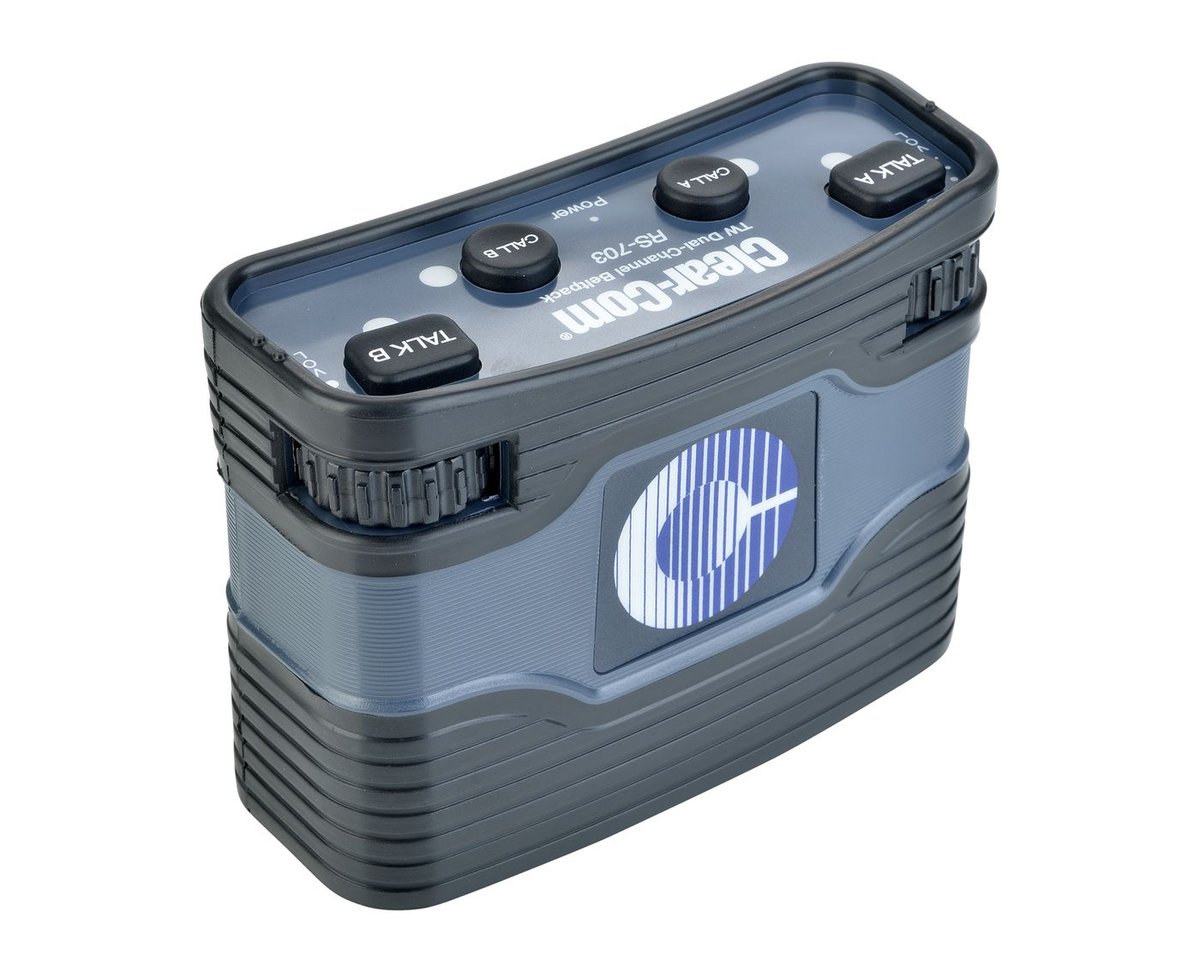

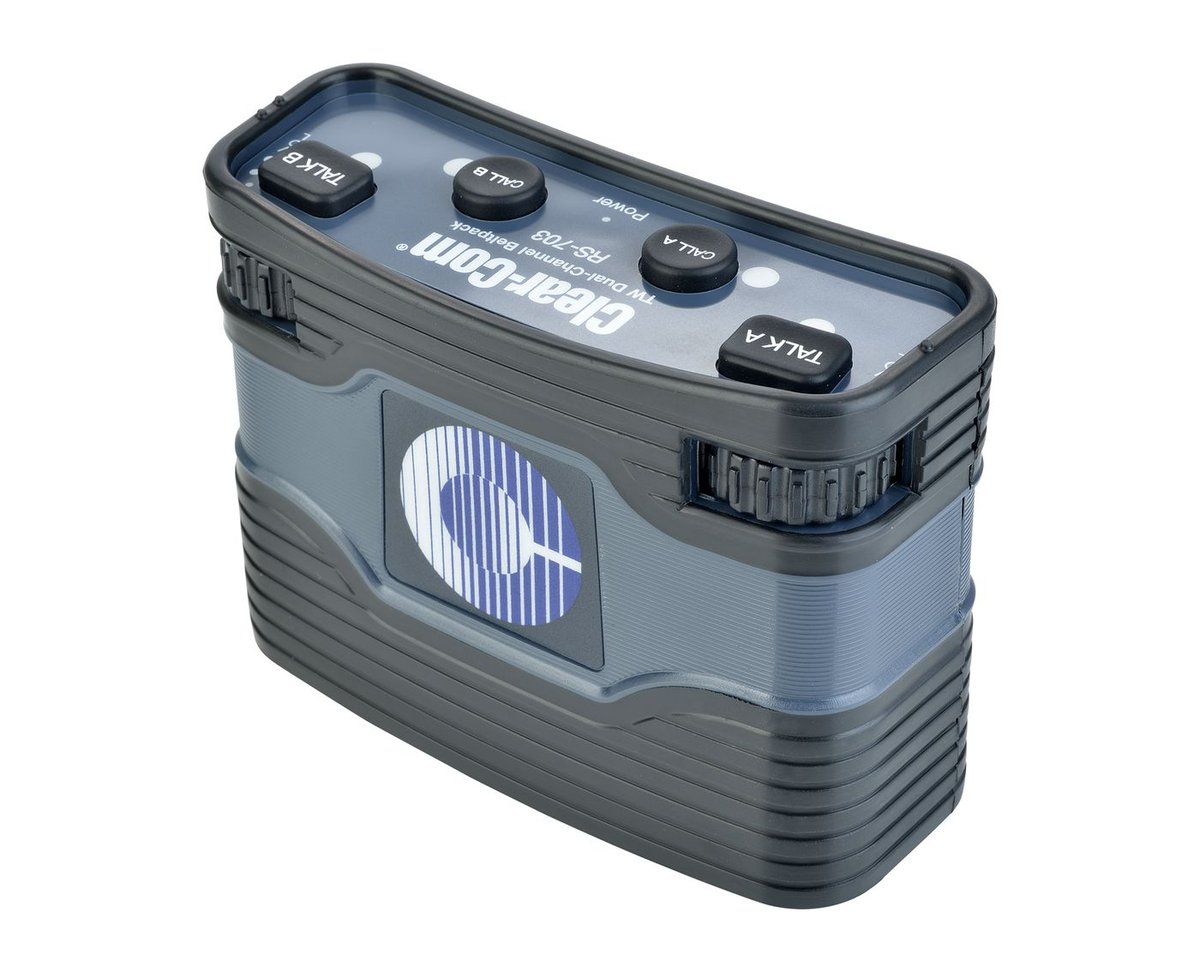

Clear-Com RS-703Two Channel Beltpack

The RS-703 is a two-channel analog beltpack for Clear-Com Encore partylines, carrying both power and audio over a single XLR-3 line connection so a crew member can clip on and go. High headroom, low-noise circuitry and the shaped frequency contour known as the Clear-Com Sound keep voices clear and intelligible even on a busy channel, and each user can talk and listen on either of two channels.

At about two-thirds of a pound, it rides comfortably on a belt through a long shift, and a 4-pin male headset connector accepts any standard Clear-Com headset. It works across Encore partyline products and, through Encore interfaces, ties into PL-Pro and other TW systems, making it a dependable workhorse for stage crew, camera operators, and production runners.

TypeTwo-channel analog partyline beltpack (Encore)
PowerCarried over the XLR-3 intercom line
Microphone Frequency Response280-15,000 Hz +/- 3 dB
Headphone Frequency Response150-20,000 Hz +/- 3 dB

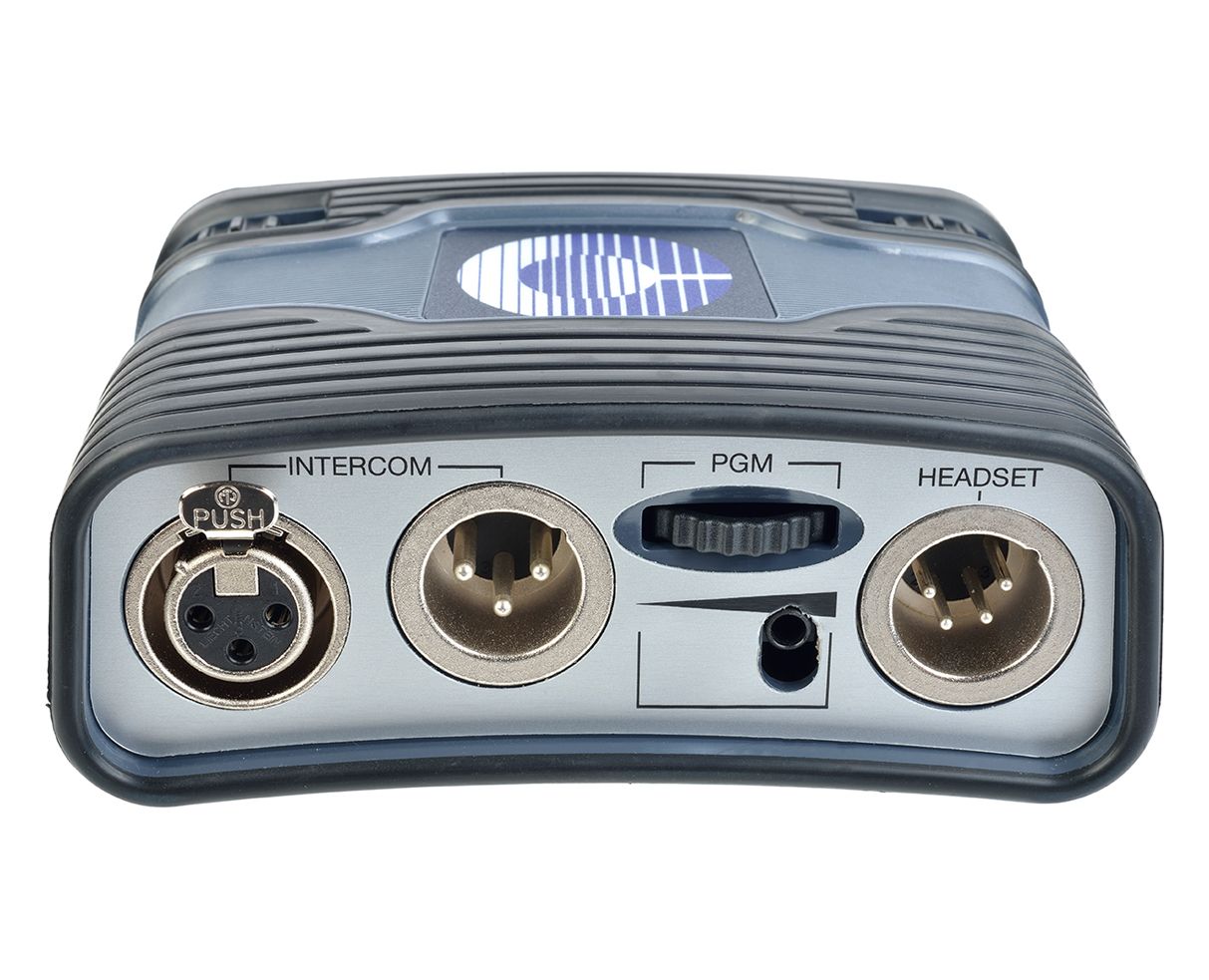

Line ConnectorXLR-3
Headset ConnectorXLR-4M
Signal-to-NoiseGreater than 65 dB, distortion less than 0.1%
Weight0.68 lb (0.31 kg)
Clear-Com Encore Beltpacks Overview (RS-701 / RS-702 / RS-703)
