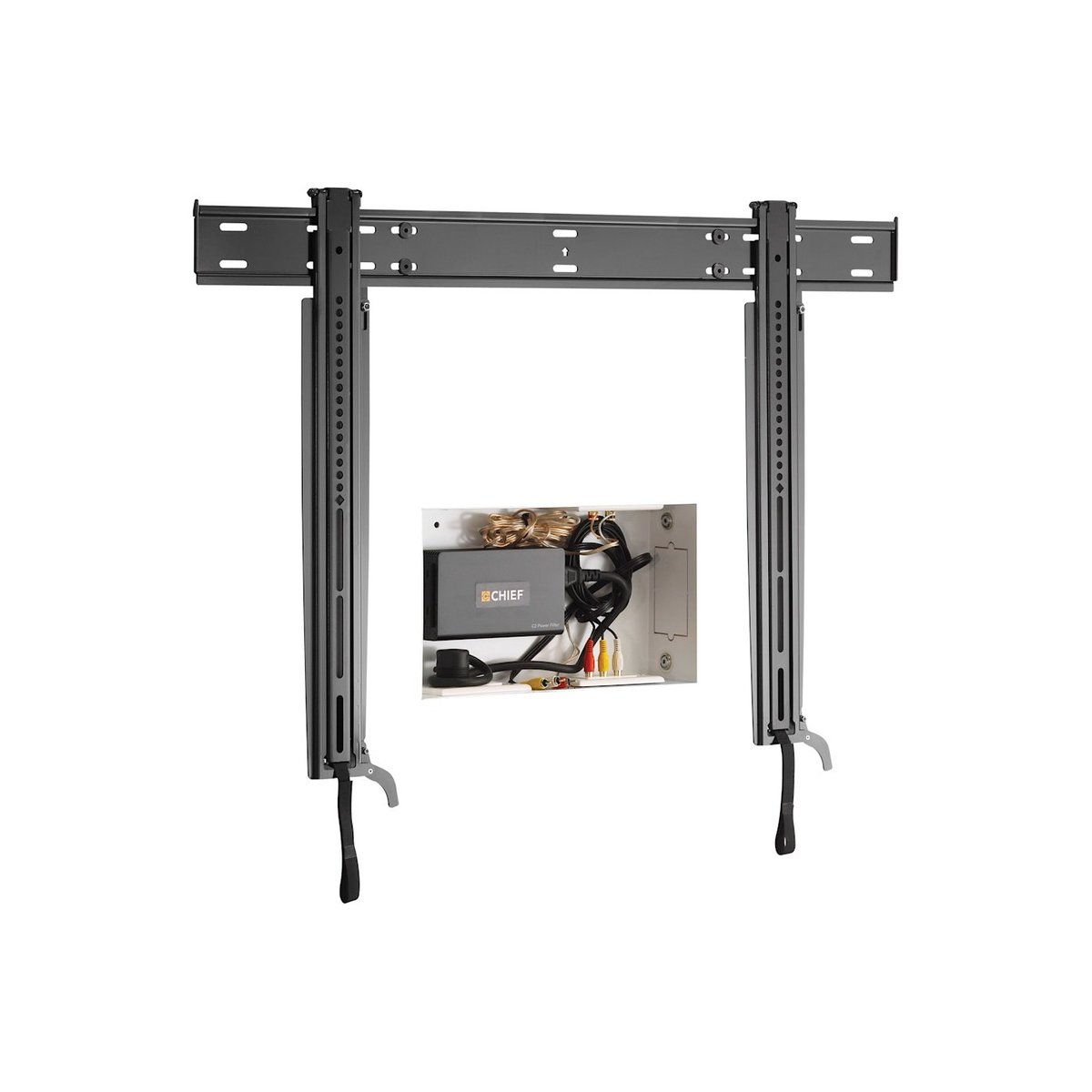

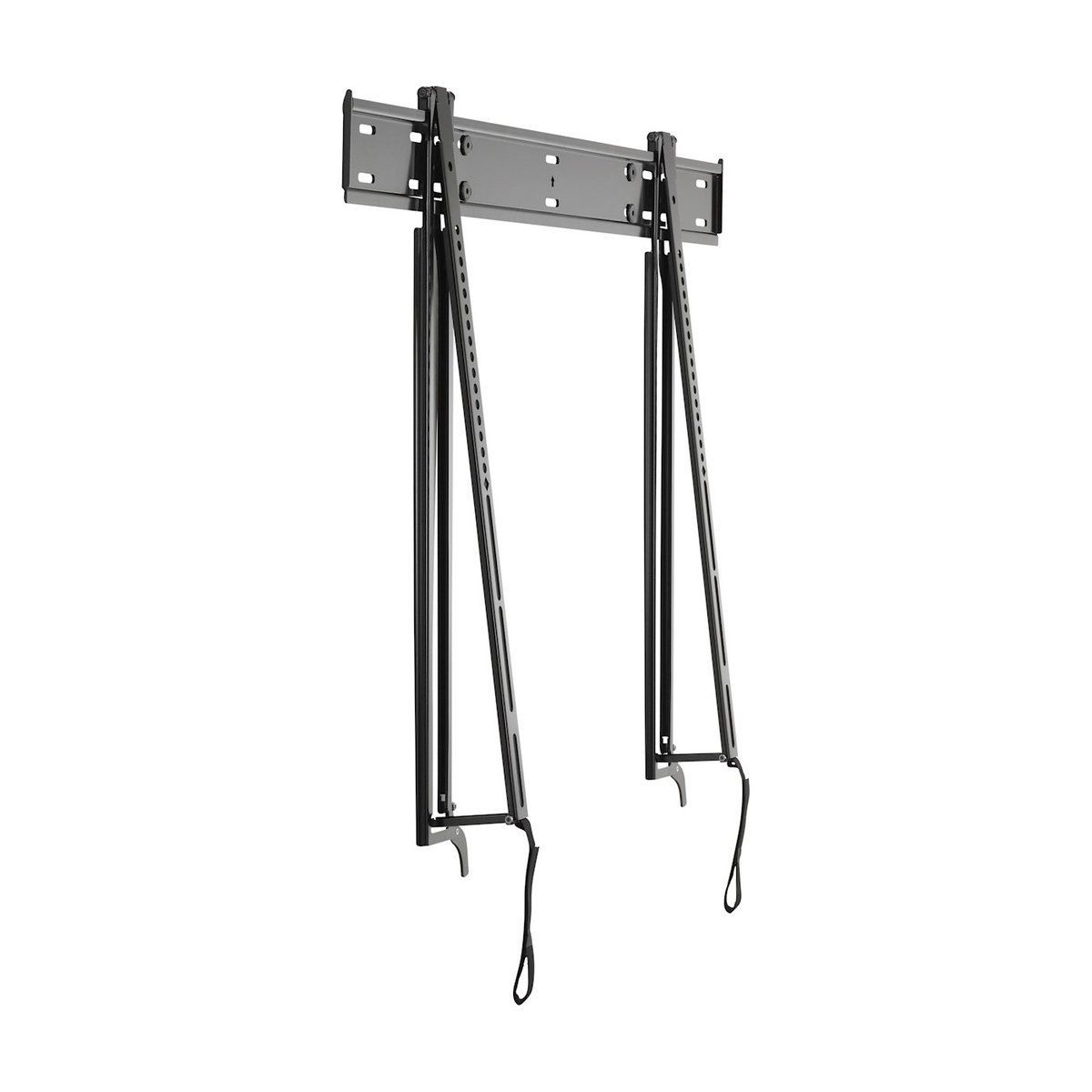

Chief LSTU Large Thinstall Fixed Wall Display Mount

Fixed, and about as close to the wall as a mount gets: 0.39 inches minimum depth - Chief's own comparison is that it is thinner than a penny is wide. It is the mount to use when the brief is a large display that reads as part of the wall rather than as equipment hung on it.

GlideLock latches the display without tools, and lateral shift lets you slide the panel to centre after the plates are fixed (how far depends on the display's hole pattern). A cable stand and bottom pullout keep connectors reachable behind the screen, and open wall plates leave room to place the electrical outlet where it needs to be. Compatible with displays under 5 inches deep, 42 to 86 inches, up to 125 lb. Landscape, UL Listed. An in-wall accessory box is recommended for the outlet.

Display size	42 - 86 in (1067 - 2184 mm)
Weight capacity	125 lb (56.7 kg)
VESA mounting pattern	200 x 200 mm - 800 x 500 mm
Minimum depth	0.39 in (1 cm)
Display depth compatibility	Displays less than 5 in (127 mm) deep
Adjustability	Fixed, with lateral shift
Wall stud compatibility	16 in (406 mm), 20 in (508 mm) or 24 in (610 mm)
Orientation	Landscape only; UL Listed
