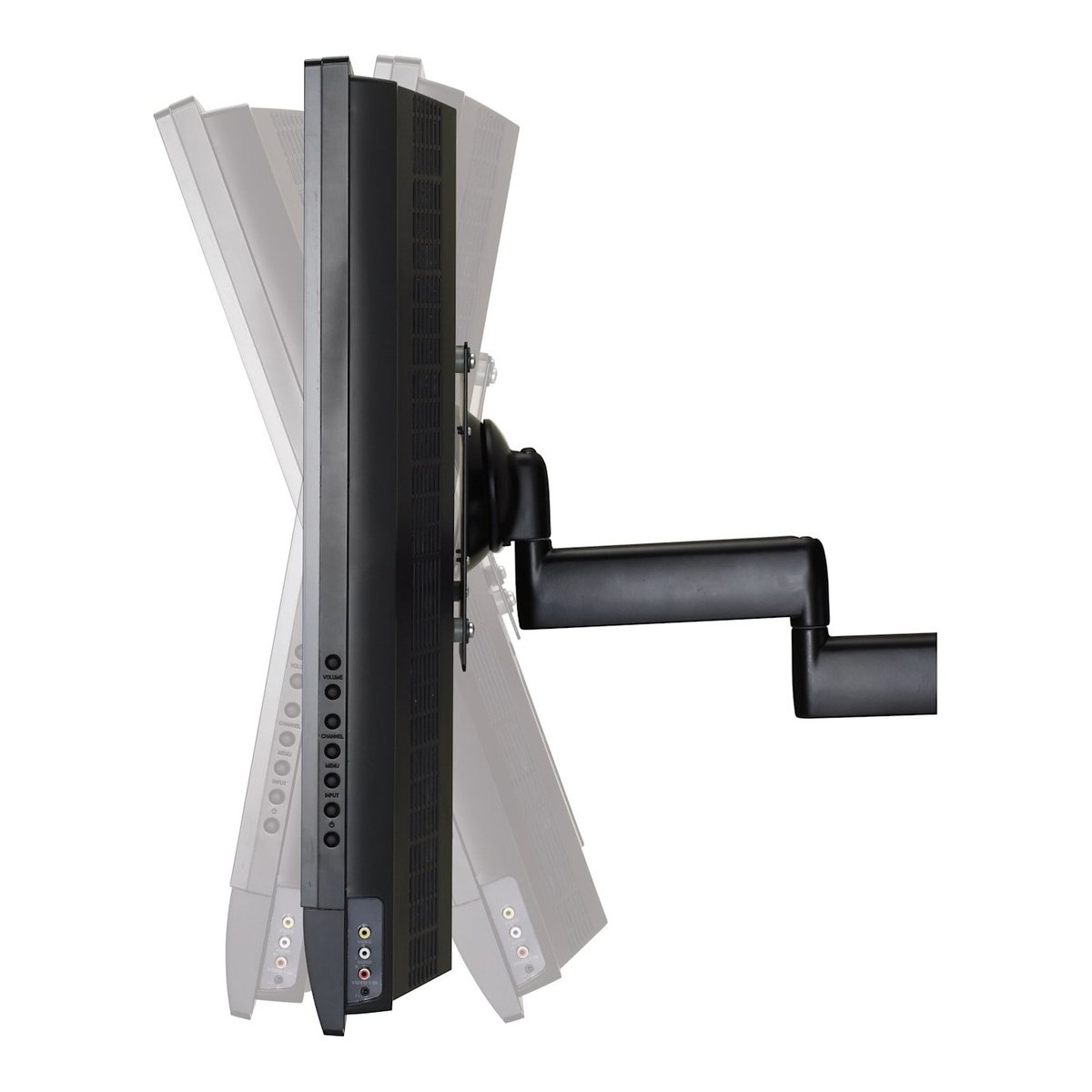

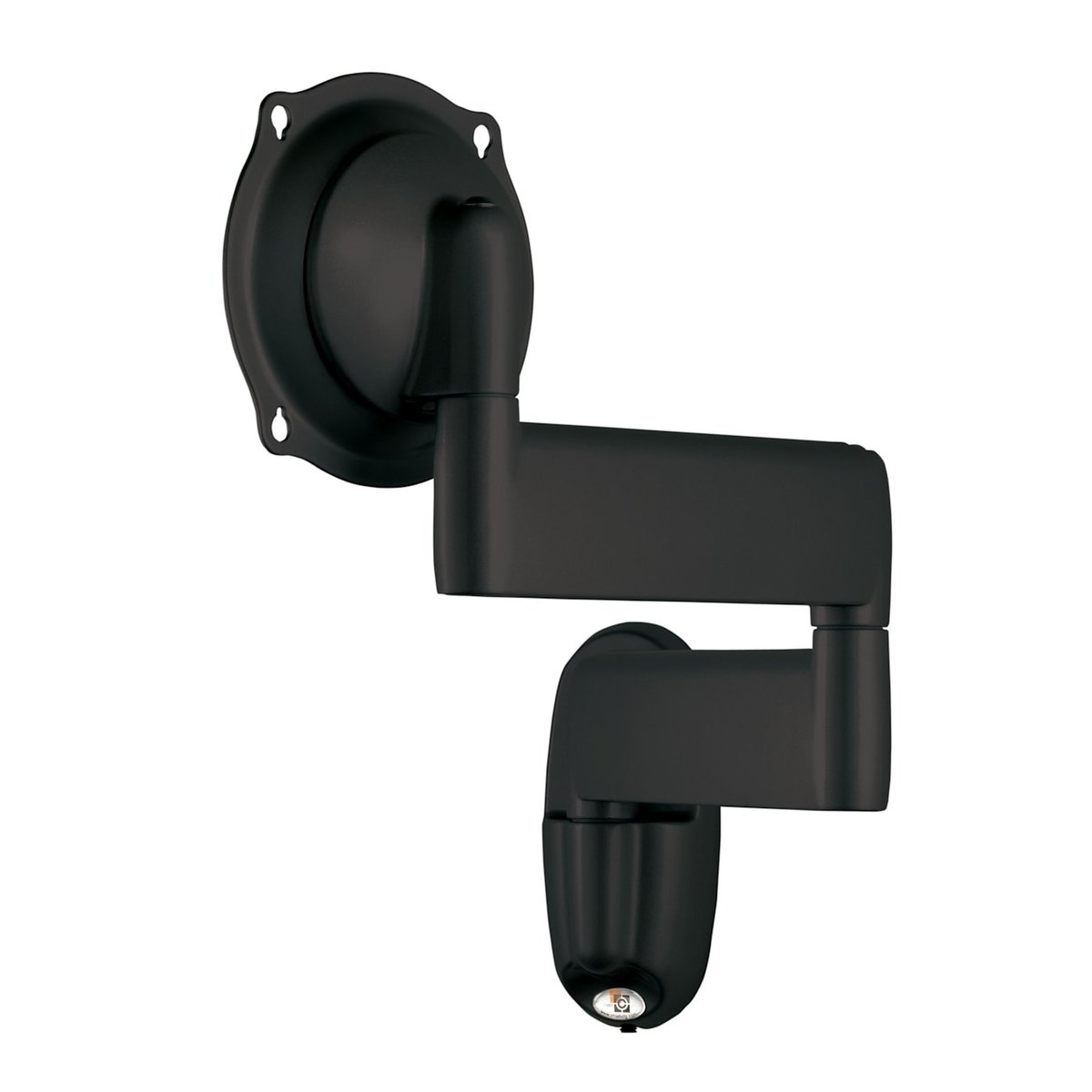

Chief JWDVB Medium Flat Panel Swing Arm Wall Display Mount - 20 Inch Extension
The JWDVB is Chief's Medium Flat Panel Swing Arm Wall Display Mount - 20 Inch Extension, rated to 75 lbs (34 kg) and measuring 14.7" x 12.1" x 2.7" (373 x 308 x 68 mm) overall. It falls under Chief's Display Mount line, built for installers who need mounting hardware that matches the rest of a Chief or Legrand AV system rather than a generic aftermarket bracket.
Chief backs it with the same hardware and finish quality as the rest of the line it belongs to, and it is sold through Legrand AV's Chief catalog under part number JWDVB. Ships free via UPS through G&G.
- Overall14.7" x 12.1" x 2.7"
- Weight Capacity75 lbs
- Interface IncludedYes
- Shipping Weight18 lbs
- Wall Stud CompatibilitySingle Stud
| Weight Capacity | 75 lbs (34 kg) |
|---|---|
| Overall Dimensions | 14.7" x 12.1" x 2.7" (373 x 308 x 68 mm) |
| Category | Display Mount |
| Manufacturer | Chief (a Legrand AV brand) |
| Part Number | JWDVB |
| Minimum Depth | 2.7 in (6.9 cm) |
| Shipping Weight | 18 lbs (8.2 kg) |
| Wall Stud Compatibility | Single Stud |
| Adjustability | Extension, Swivel, Tilt |
| Application | Wall |
| Array Configuration | 1x1 |
| Color | Black |
| Interface Included | Yes |
| Number of Displays | 1 |
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | Yes |
| Tilt | +15° / -15° |
| VESA Mounting Pattern | 100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm |
