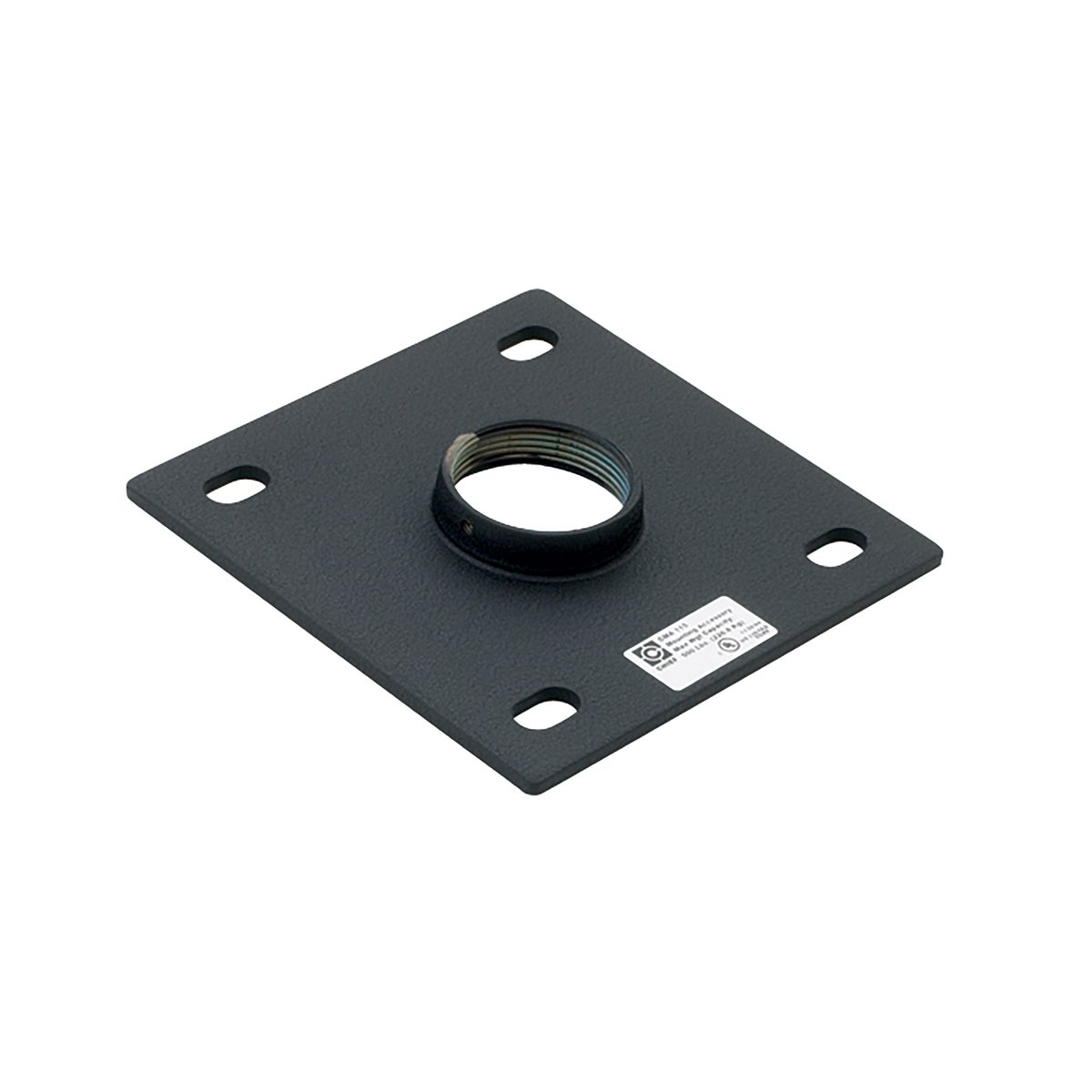

Chief CMA110/CMA115 Flat Ceiling Plate for CMS Extension Columns

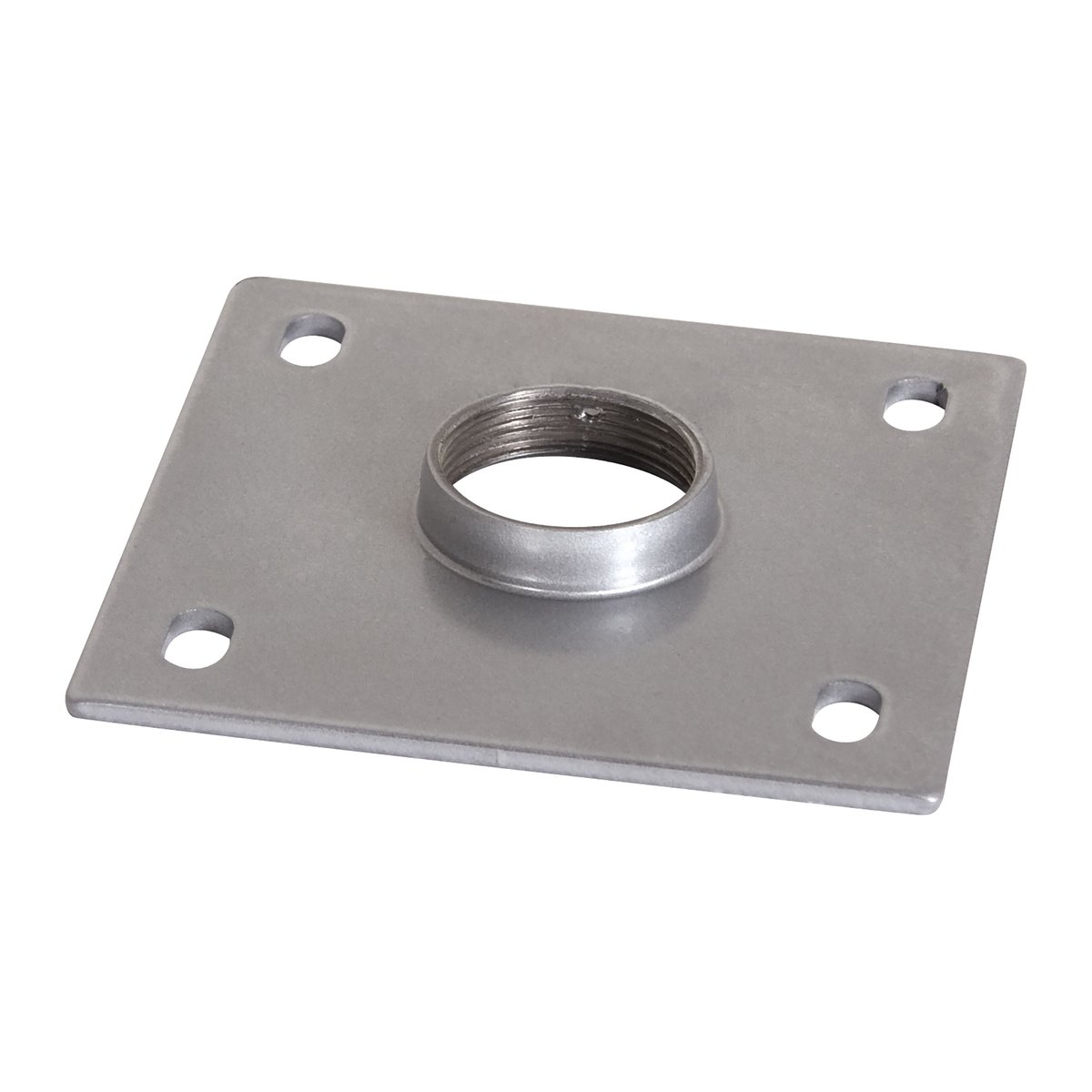

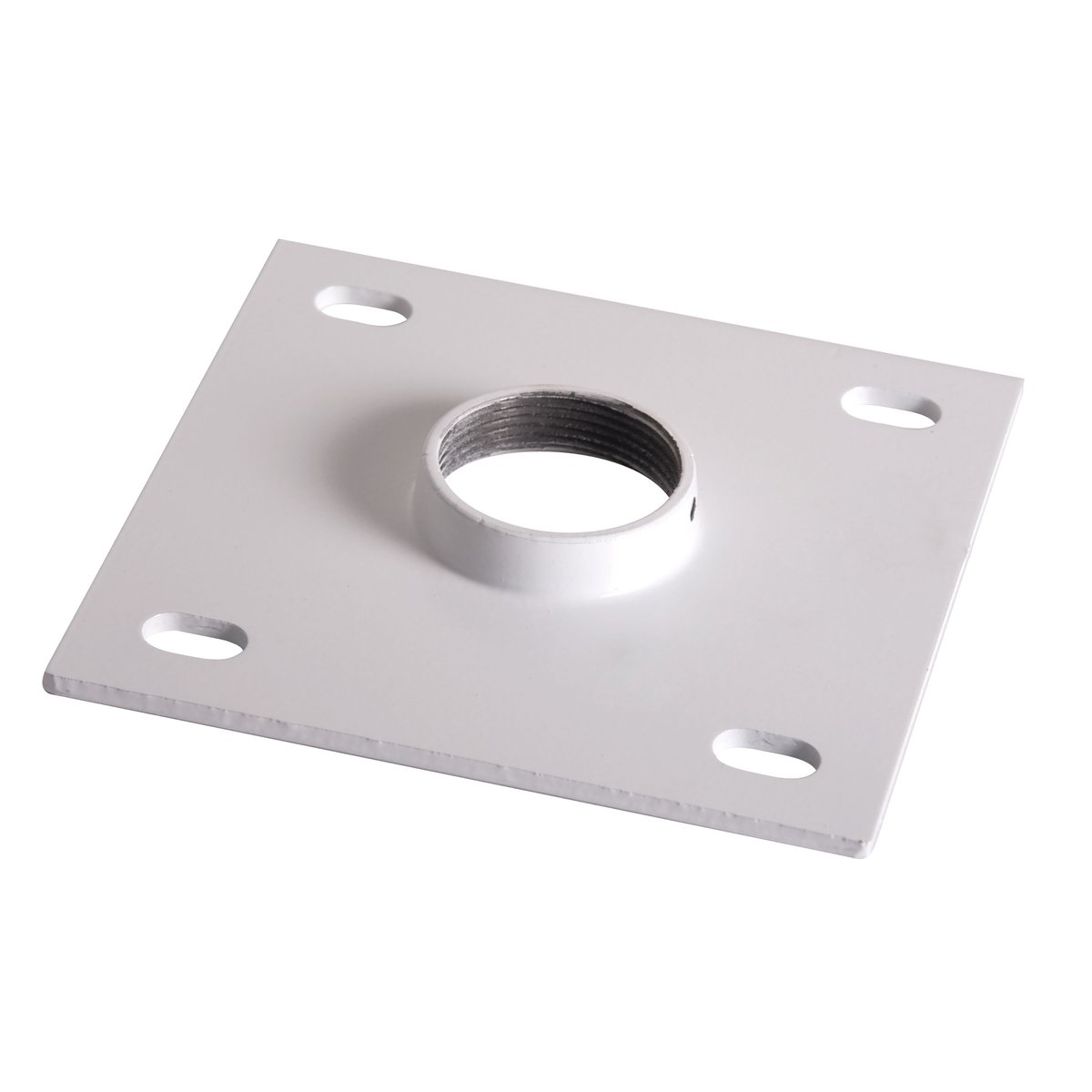

A flat ceiling plate that combines with any Chief CMS fixed or adjustable extension column to start a projector or ceiling-mount drop from a flat ceiling. The CMA110 is the 8 inch version; the 6 inch plate is catalogued under both the CMA115 and CMS115 part numbers, in black, silver or white.
Installation is a set screw rather than a full disassembly, so the plate goes up first and the column threads on once the drop height is confirmed.
- Ceiling Plate Size8 in
- Overall0.7" x 8.0" x 8.0"
- Weight Capacity500 lbs
- Shipping Weight3.35 lbs
- FinishesBlack, silver or white (6 in size)
| Type | Flat ceiling plate for CMS extension columns |
|---|---|
| Sizes | 8 in (CMA110) or 6 in (CMA115 / CMS115) |
| Compatibility | Any Chief CMS fixed or adjustable extension column |
| Installation | Set screw |
| Finishes | Black, silver or white (6 in size) |
| Ceiling Plate Size | 8 in (20.3 cm) |
| Overall Dimensions | 0.7" x 8.0" x 8.0" (17 x 203 x 203 mm) |
| Shipping Weight | 3.35 lbs (1.5 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Accessory Type | Ceiling Plates and Adapters |
| Application | Ceiling |
| Ceiling Plate Type | Flat |
| TAA Compliant | No |
| Certifications | OSHPD, UL Listed |
