Chauvet DJ SlimPAR Pro Pix

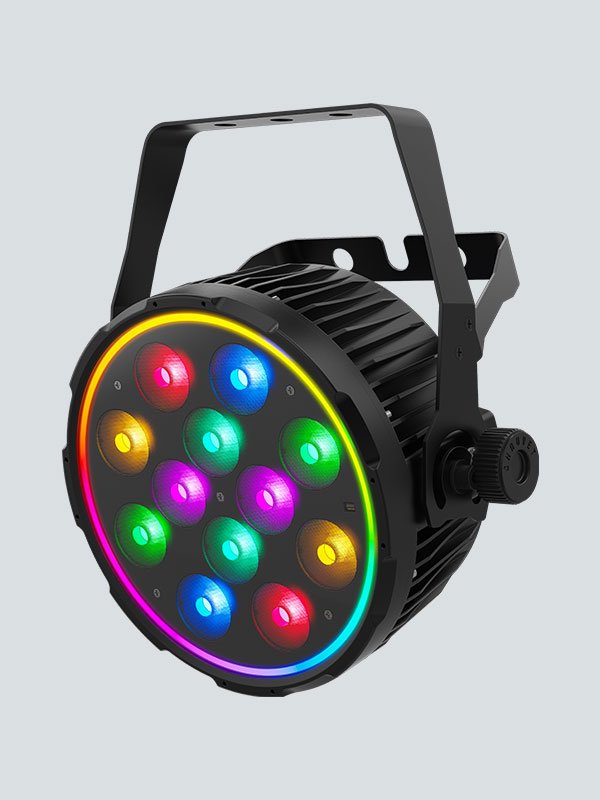

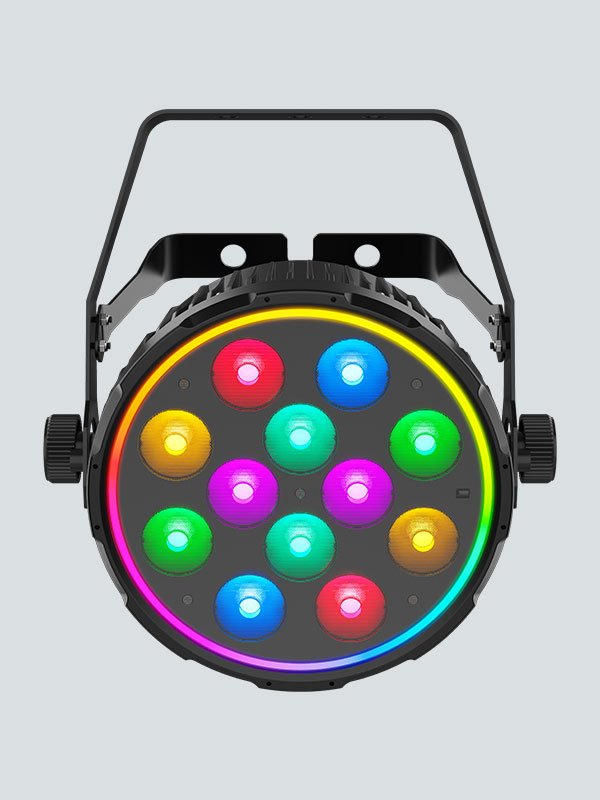

SlimPAR Pro Pix is a hex-color RGBAW+UV wash with a second light source wrapped around it: an outer ring of 57 RGB LEDs that controls independently and pixel-maps. The ring turns the par into an effect fixture, running animations and video content around the perimeter while the center does its job as a wash.

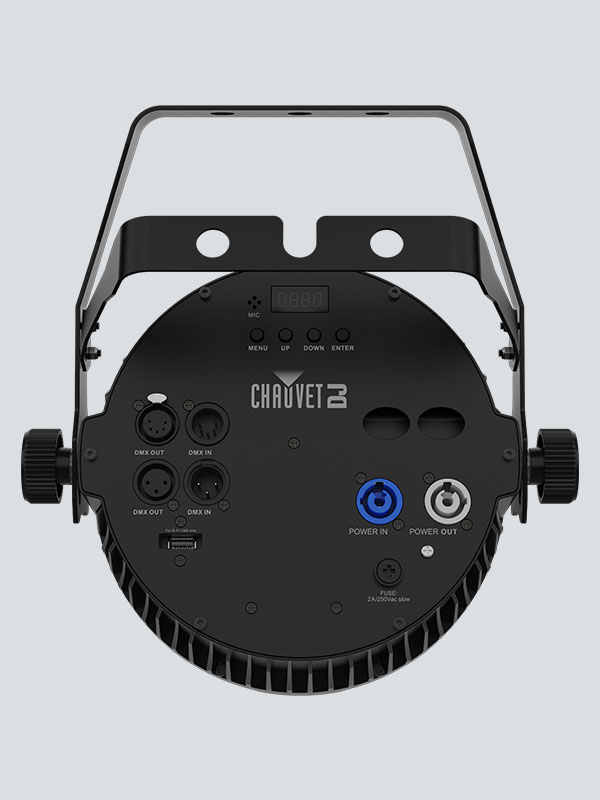

The housing is die-cast aluminum rather than moulded plastic, which is the difference between a fixture that survives a touring case and one that does not. The main array is twelve 10 W hex LEDs producing 2,775 lumens and 3,246 lux at 2 m across a 25 degree beam and 39 degree field. Operation is flicker-free for on-camera use. Control is 12, 26 or 48 channel DMX over 3-pin and 5-pin XLR, with strobe to 20 Hz.

Light Source	12 LEDs (hex-color RGBAW + UV) 10 W, (2.1 A), 50,000 hours life expectancy / (ring): 57 LEDs (RGB) 11 W, (2.2 A), 50,000 hours life expectancy
Lumens	2,775
Illuminance	3,246 lux @ 2 m / 519 lux @ 5 m
Beam Angle	25 degrees
Field Angle	39 degrees
Strobe Rate	0 to 20 Hz
Size	11.4 x 4.3 x 12.3 in (290 x 110 x 313 mm)
Weight	9.8 lb (4.5 kg)
