Chauvet DJ Shocker Panel FX IP

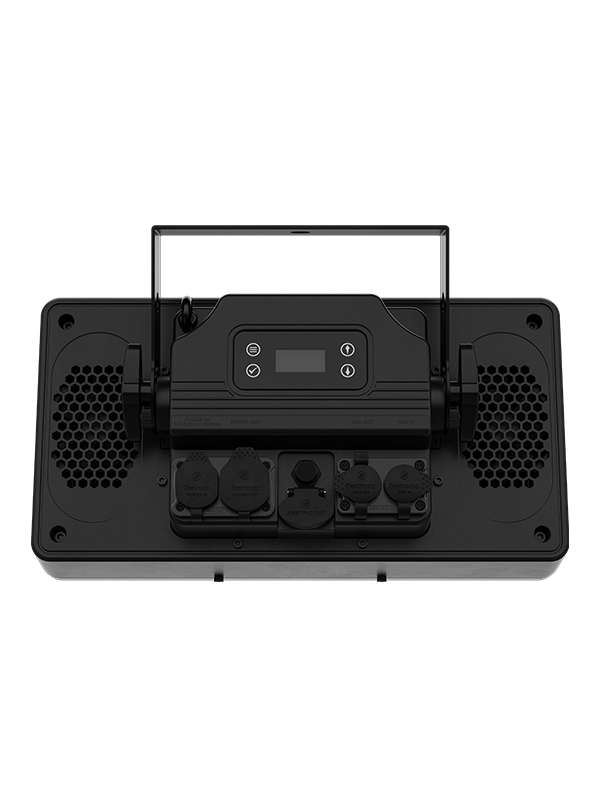

The Shocker Panel FX IP is the weatherproof build of the Shocker Panel FX, rated IP66 - dust-tight and protected against powerful water jets - for festivals, outdoor stages and permanent exterior installs. Neutrik TRUE1 connectors carry power in and out, so a run of fixtures links without breaking the water seal, and the digital display is touch-sensitive and password-protected so a public-facing fixture cannot be reconfigured by a passer-by.

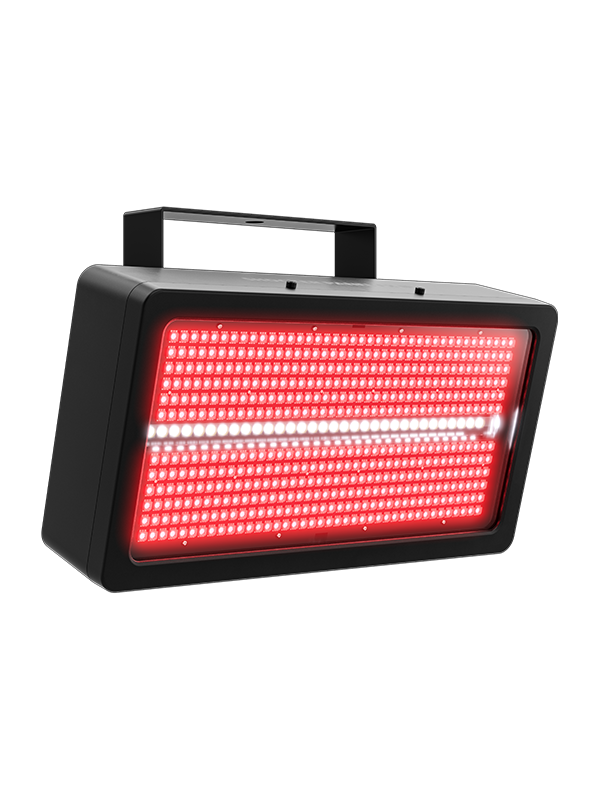

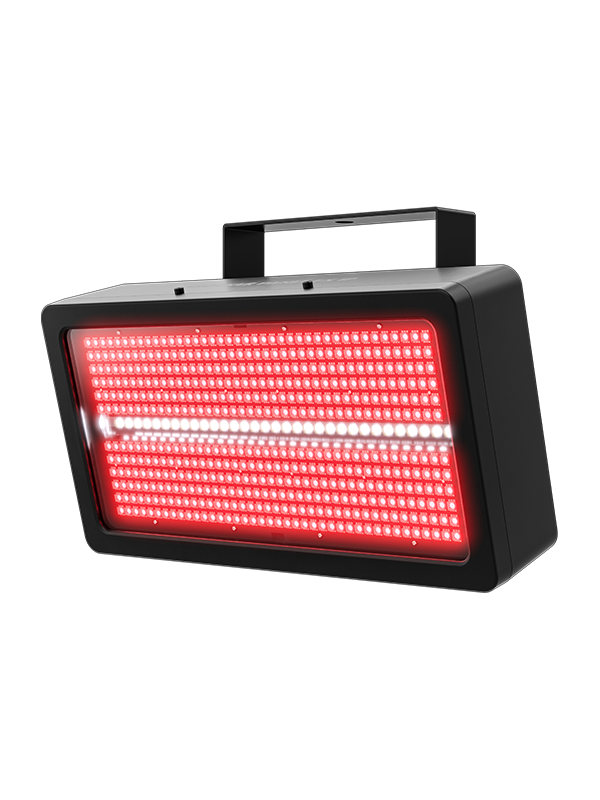

Optically it matches the indoor version: 480 tri-color LEDs and 32 cool white LEDs producing 13,626 lumens over a 119-degree beam and 158-degree field, split into sixteen controllable sections (eight RGB, eight white) with built-in macros. Data is 5-pin XLR at 8, 18, 34 or 47 channels. It starts down to -4°F and operates from -22°F to 113°F, draws 238W at 120V for six units per circuit, and weighs 10.4 lb with a 5-foot power cable.

IP RatingIP66 (dust-tight, protected against powerful water jets)
Power ConnectorsNeutrik TRUE1 in/out
Light Source480 LEDs (tri-color) 2W + 32 LEDs (cool white) 1.8W
Zones16 controllable sections (8 RGB + 8 white)
Lumens / Illuminance13,626 lumens; 1,131 lux @ 2 m
Beam / Field Angle119° / 158°
DMX Channels8, 18, 34 or 47; 5-pin XLR
Temperature / Power / WeightOperating -22°F to 113°F; 238W, 2A @ 120V; 10.4 lb (4.7 kg)
