Chauvet DJ 6SPOT RGBW

6SPOT RGBW is a six-head bar where every head aims independently, so one fixture can cover a dance floor, hit two walls and still put a beam on the DJ booth. The emitters are quad-color RGBW at 9 W each with a tight 10 degree beam, which keeps the individual shafts readable in haze instead of blurring into a wash.

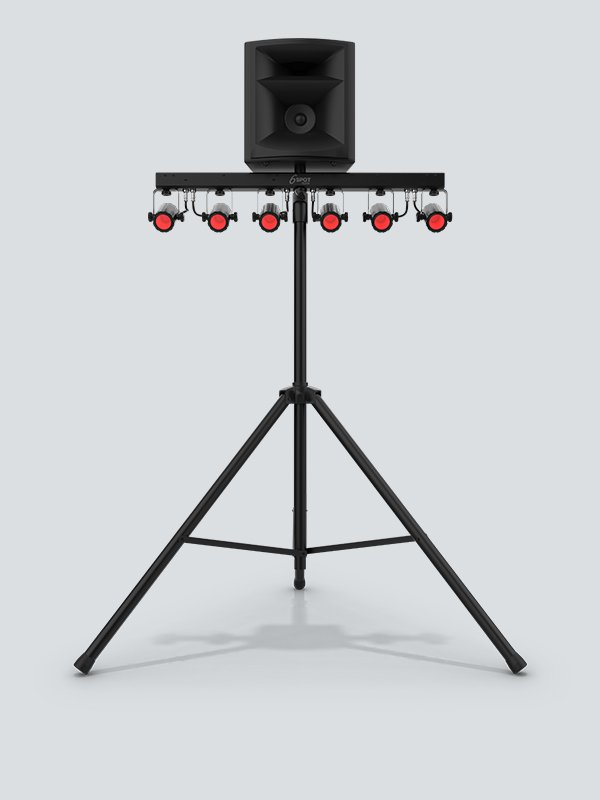

Setup is the point of the design. A pass-through hole fits tripods and speaker stands sized 1 to 1.4 inches with no clamp, and L-brackets are included for floor and truss mounting. It addresses in 3 or 8 channel modes over 3-pin XLR, power links up to 11 units at 120 V, and runs stand-alone from the optional IRC-6 remote. A carrying bag ships in the box.

Light Source6 LEDs (quad-color RGBW) 9 W, (732 mA), 50,000 hours life expectancy
Illuminance437 lux @ 2 m (per pod)
Beam Angle10 degrees
DMX Channels3 or 8
DMX Connectors3-pin XLR
Power Linking11 units @ 120 V; 20 units @ 230 V
Size35.5 x 2.2 x 6.5 in (902 x 56 x 165) mm
Weight8.8 lb (4.1 kg)
