BZBGear BG-UPTZ Live Streaming PTZ Camera

Name: BZBGear BG-UPTZ Live Streaming PTZ Camera
Brand: BZBGear
SKU: BG-UPTZ-12XHSU-B
Availability: InStock

$1,119.20

BG-UPTZ-12XHSU-B

Choose an option

1080p PTZ camera with simultaneous HDMI, 3G-SDI, USB 3.0 and IP output.

The UPTZ is the workhorse of the BZBGear pan-tilt-zoom line: a 1/2.8 inch progressive CMOS head that puts HDMI, 3G-SDI, USB 3.0 and a PoE network stream out at the same time, so one camera can feed a switcher, a laptop and a stream without any of them fighting over it. A line-level audio input embeds sound into the outputs.

Pan travels 340 degrees and tilt runs from -30 to +90, with nine presets on the handset and 255 from a keyboard or PC. Control is RS-232/485 or IP, and the camera answers RTSP, RTMP, ONVIF and GB/T28181. It ships in black, white or silver so it can be made to disappear against most ceilings, and NDI models are available where the video needs to travel as a network source.

Optical zoom (by model)	12X Optical zoom / 20X Optical zoom / 30X Optical zoom
Image sensor	1/2.8" Progressive CMOS
Effective pixels	2.07 Megapixels (16:9)
Output resolutions	1080p@60/50, 1080i@60/50, 1080p@30/25, 720p@60/50

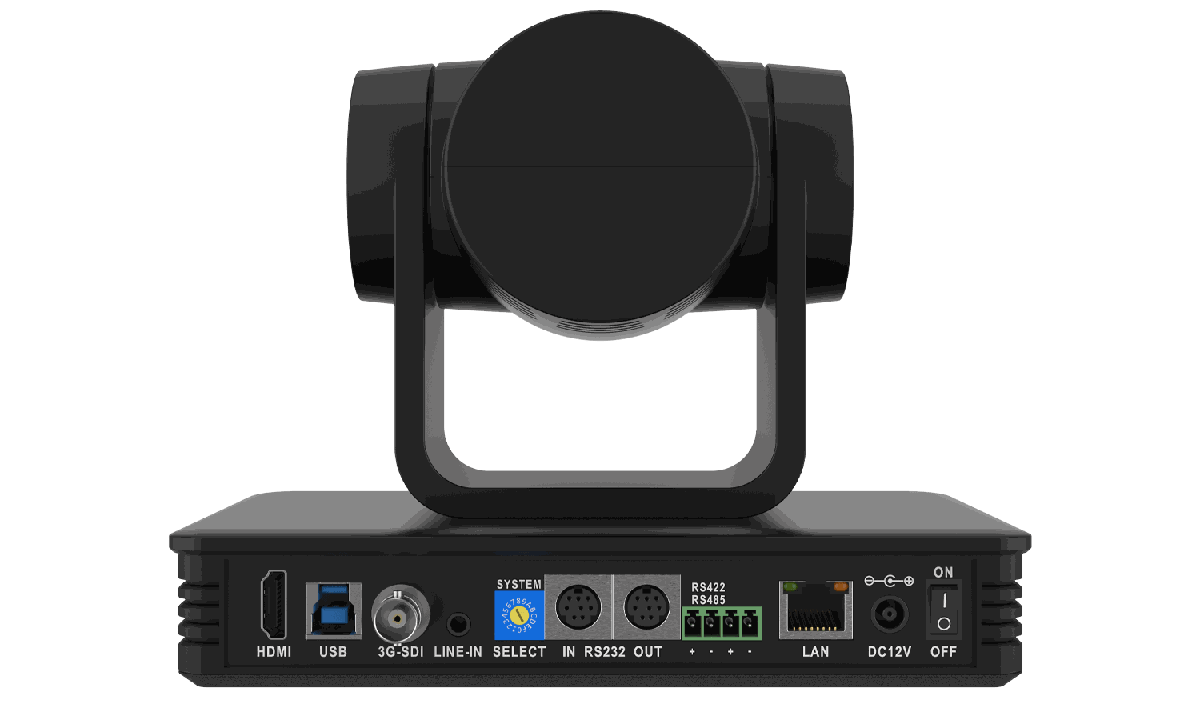

Interfaces	USB 3.0, HDMI, 3G-SDI, LAN(POE), RS232/485, LINE IN
Pan rotation	340 degrees(max. speed: 80 degrees/s)
Tilt rotation	30 degrees to +90 degrees (max. speed: 60 degrees/s)
Presets	9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC
Dimensions	(L)7 x (W)4.5 x (H)5.9in [(L)178 x (W)115.5 x (H)150.9mm]
Weight	3 lbs [1.38KG]
