BZBGear BG-BPTZ-XU Huddle Room PTZ Camera

The BPTZ-XU is the entry point to BZBGear's PTZ line and is aimed squarely at the small meeting room: one USB 2.0 Type A cable carries video to the PC, and the camera appears as a UVC device to Zoom, Teams or anything else that reads a webcam. No capture card, no driver install.

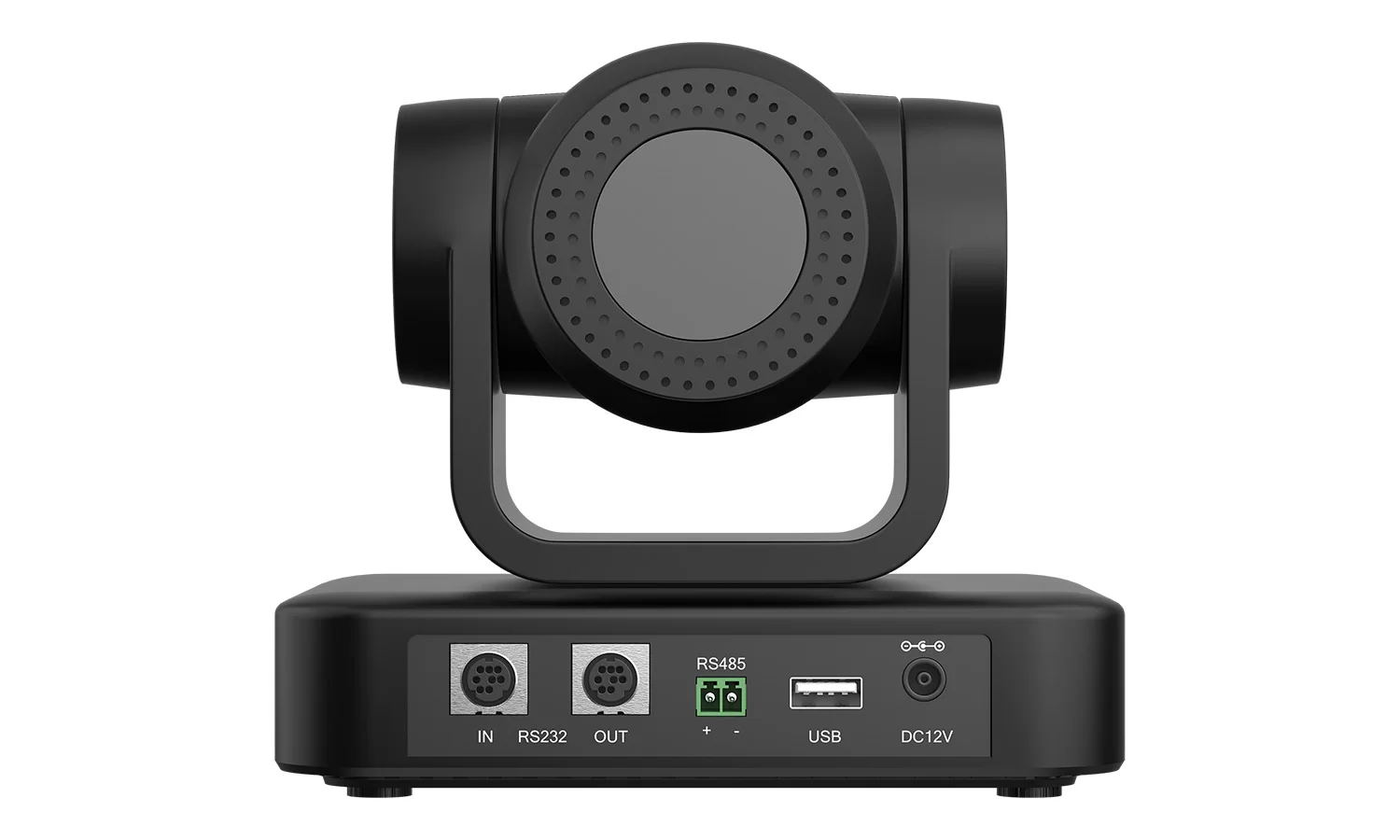

Behind the simple connection is a real motorised head - 170 degrees of pan each way, 30 degrees of tilt, 255 presets and VISCA / Pelco-D / Pelco-P control over RS-232 or RS-485 - so the same camera can be driven from a joystick or a control system when the room grows up. Two lens options cover a huddle table or a longer boardroom.

Image sensor	1/2.9 Inch High Quality CMOS Sensor
Optical zoom (by model)	3X / 10X
Effective pixels	2.07MP, 16:9
View angle (3x / 10x)	34.1 degrees ~ 85 degrees / 8.8 degrees ~ 66 degrees
Video output	USB 2.0, Type A
Pan / tilt rotation	170 degrees ~ +170 degrees / -30 degrees ~ +30 degrees
Presets	255 Presets (10 presets on IR Remote)
Control protocols	VISCA/Pelco-D/Pelco-P
Dimensions	6.2in x 4.4in x 5.5in [156.8mm x 112.6mm x 139.5mm]
Weight	2.2 lbs [1kg]
