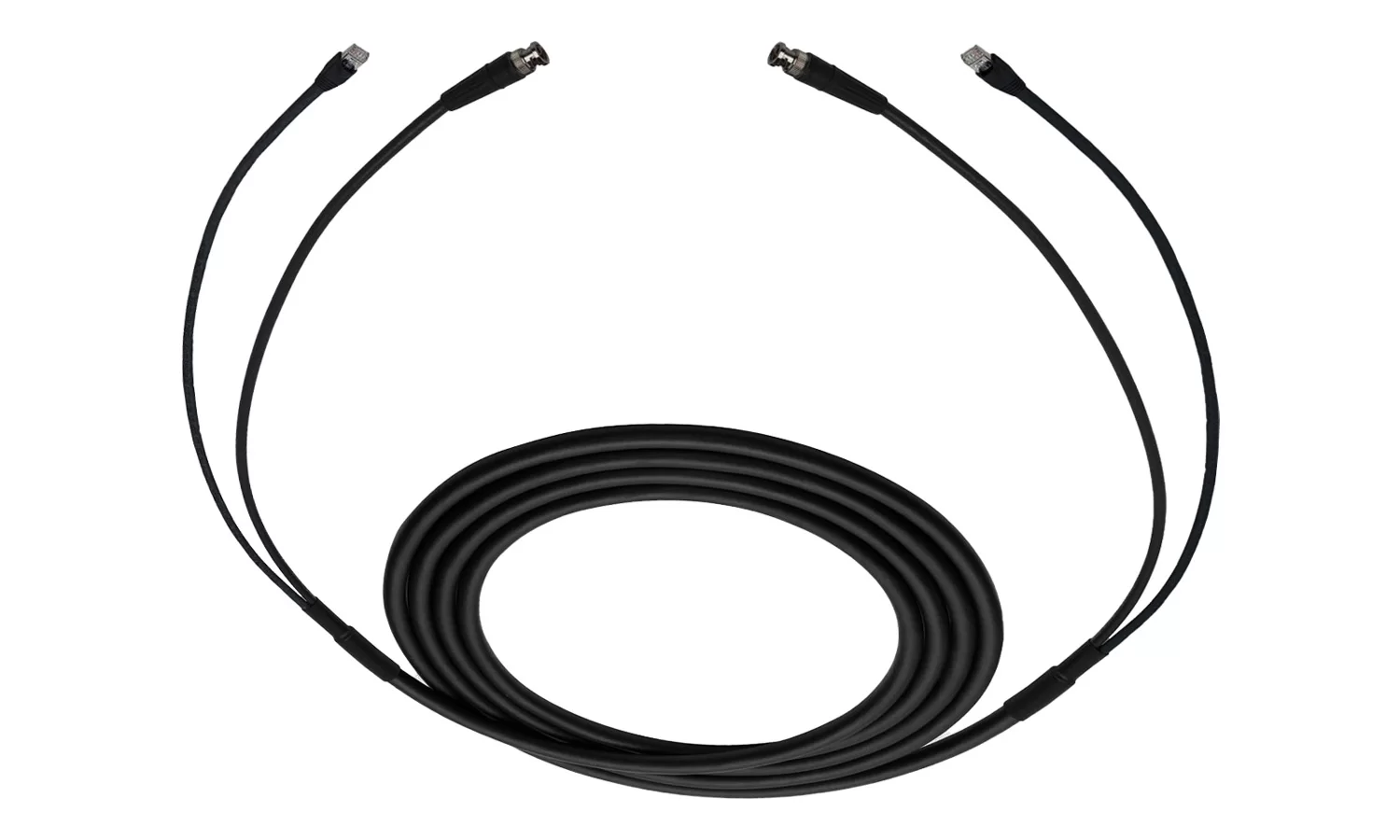

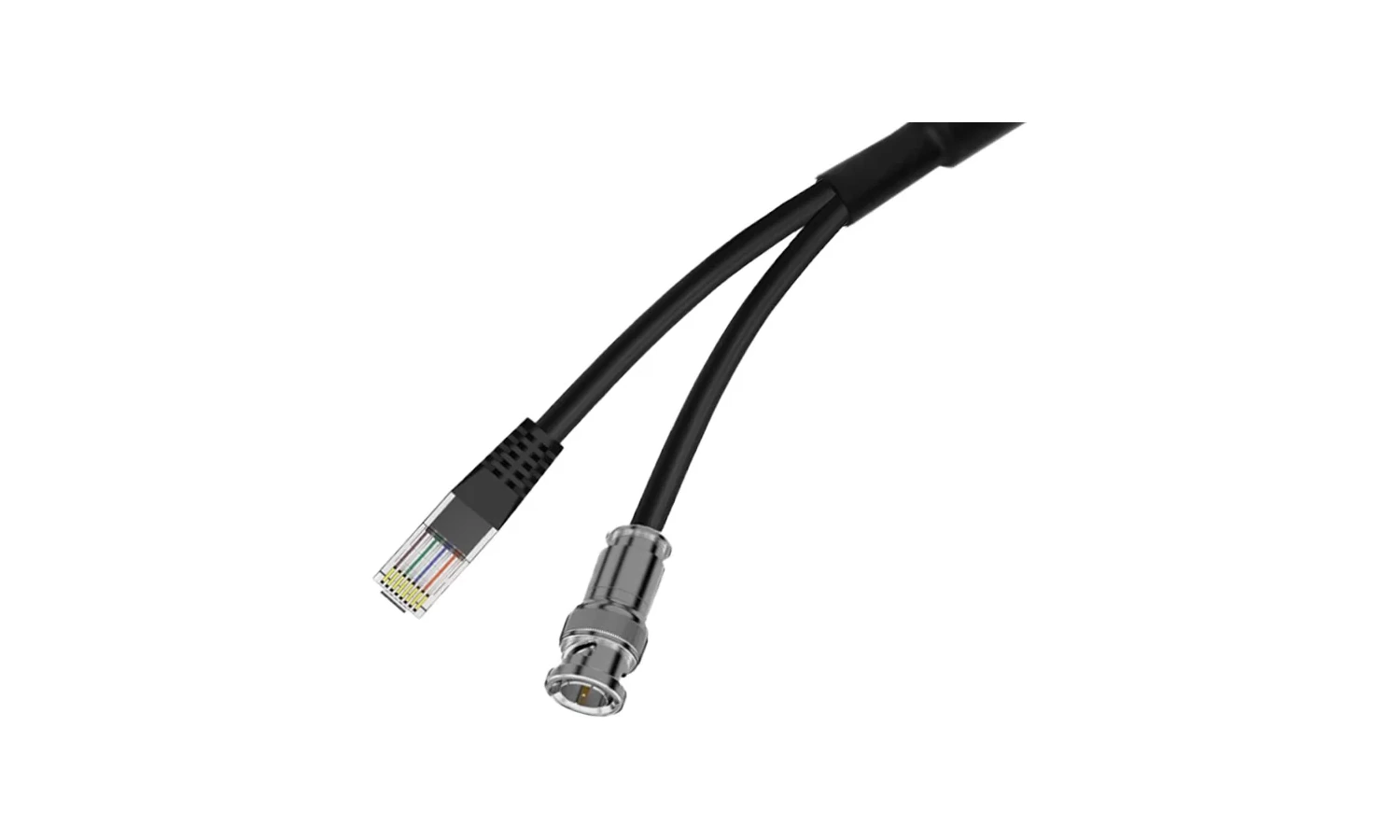

BZBGear BG-CAB-SDICAT 12G-SDI and Cat6 Combo Cable

The BG-CAB-SDICAT puts RG6 quad shield coaxial cable and Cat6 in a single jacket. The coax side is 18 AWG copper-clad steel for satellite, CATV, HDTV and 12G-SDI; the Cat6 side is 23 AWG solid bare copper rated to 550 MHz for network, PoE and telephony.

For an installer it removes a whole second cable pull to every camera or display position, which is where the labour cost sits. The cable is UL listed, CMG rated, RoHS compliant and FT4 flame tested. Lengths run from 25 ft to 200 ft.
