Bose Professional Bose ShowMatch SM10 DeltaQ Array Loudspeaker

DeltaQ technology is the next-generation array design that allows "Q" (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.

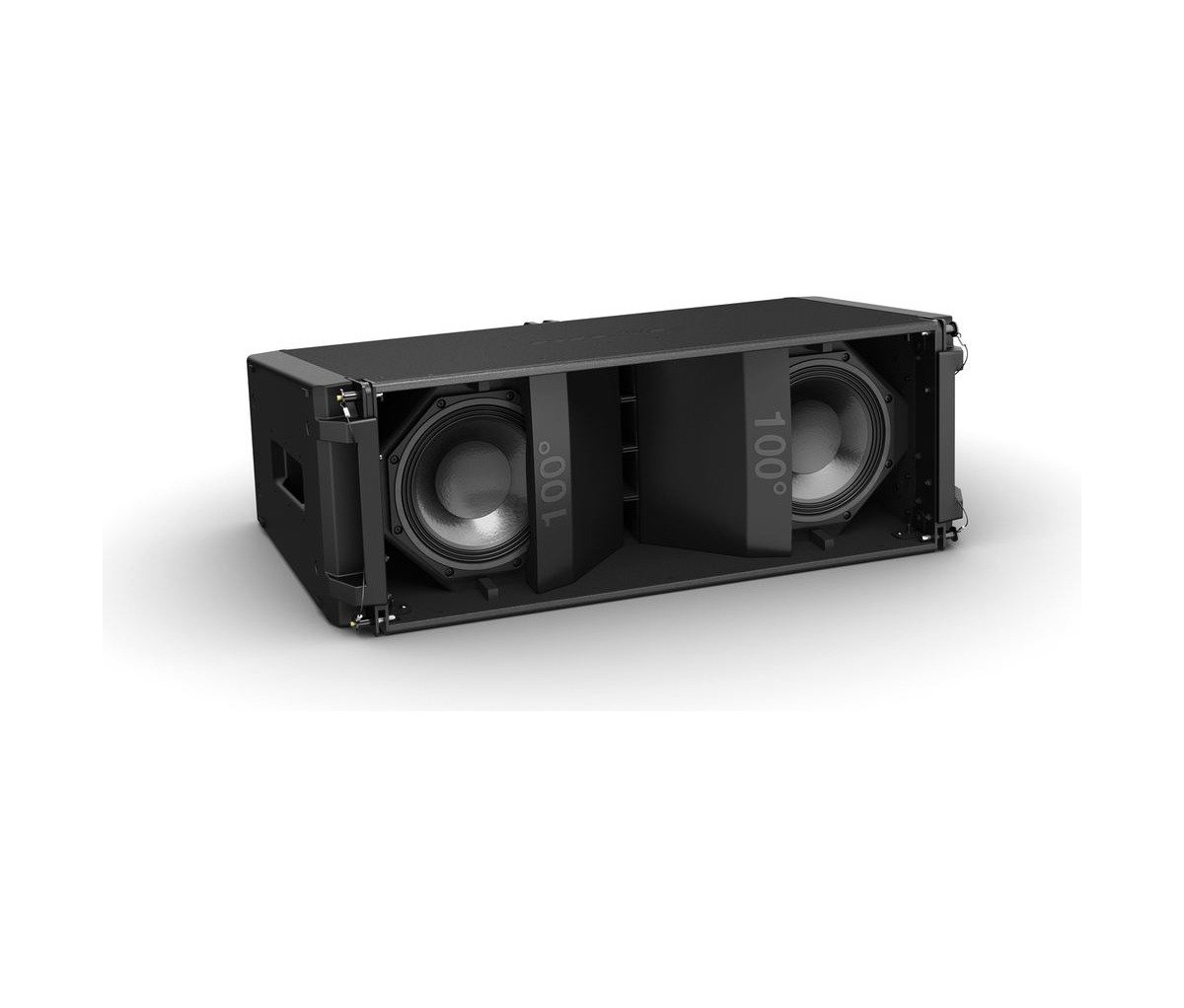

Changeable waveguides - includes both 70 deg and 100 deg waveguides to adjust horizontal coverage. Largest-in-class size provides superior coverage control and vocal clarity. Change single panel for asymmetrical patterns.

Nominal Impedance	8 ohms (low frequency) + 6 ohms (high frequency)
Enclosure Material	Baltic birch plywood
Colors	Black
Net Weight	65.5 lb (29.7 kg)
Calculated Maximum SPL @ 1 m	121 dB (low frequency), 126 dB (high frequency) continuous / 127 dB (low frequency), 132 dB (high frequency) peak
Coverage, Horizontal	100 deg
Coverage, Vertical	10 deg
Crossover	750 Hz, acoustic, requires active 2-way crossover in DSP
