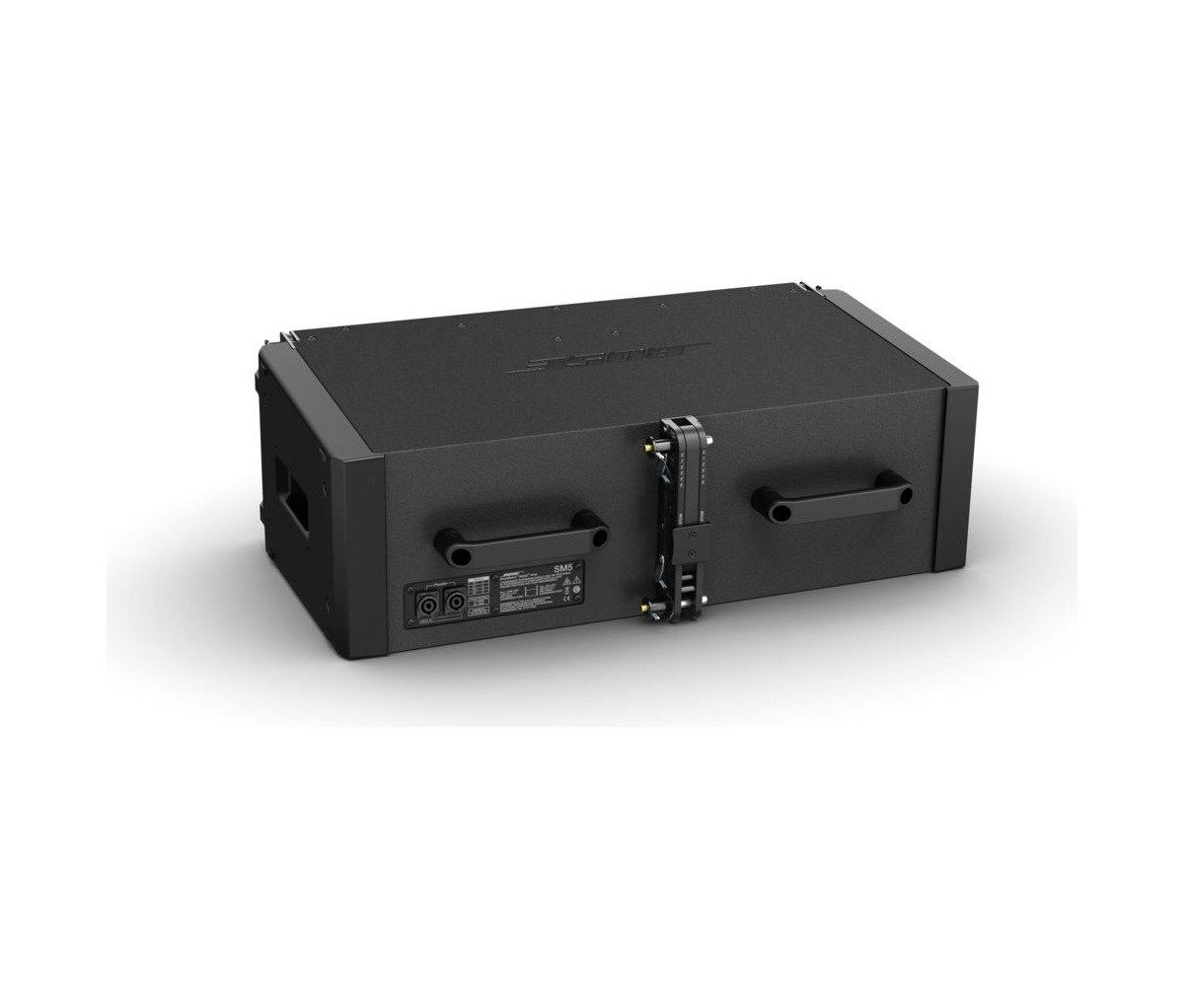

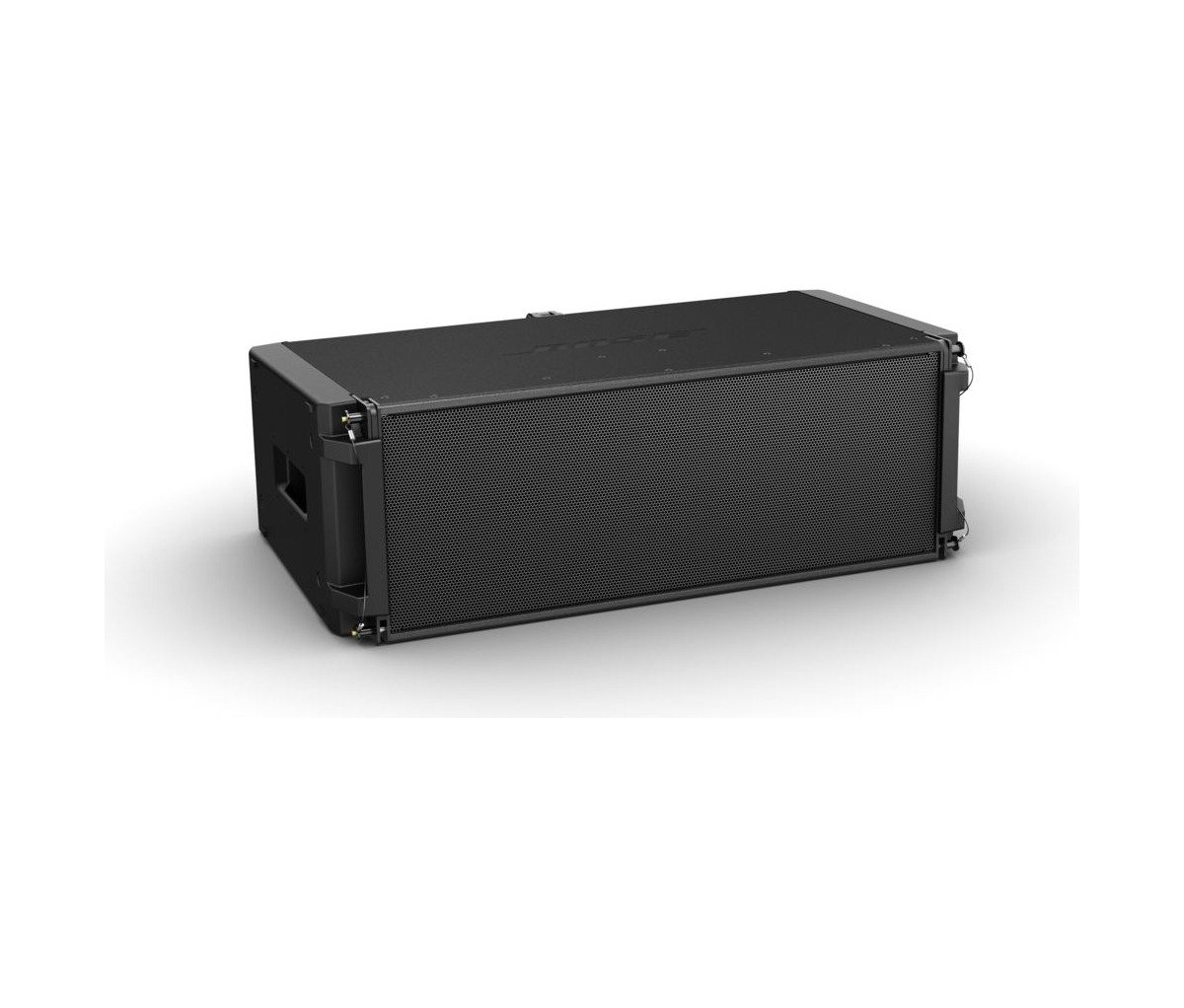

Bose Professional Bose ShowMatch SM5 DeltaQ Array Loudspeaker

DeltaQ technology is the next-generation array design that allows "Q" (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.

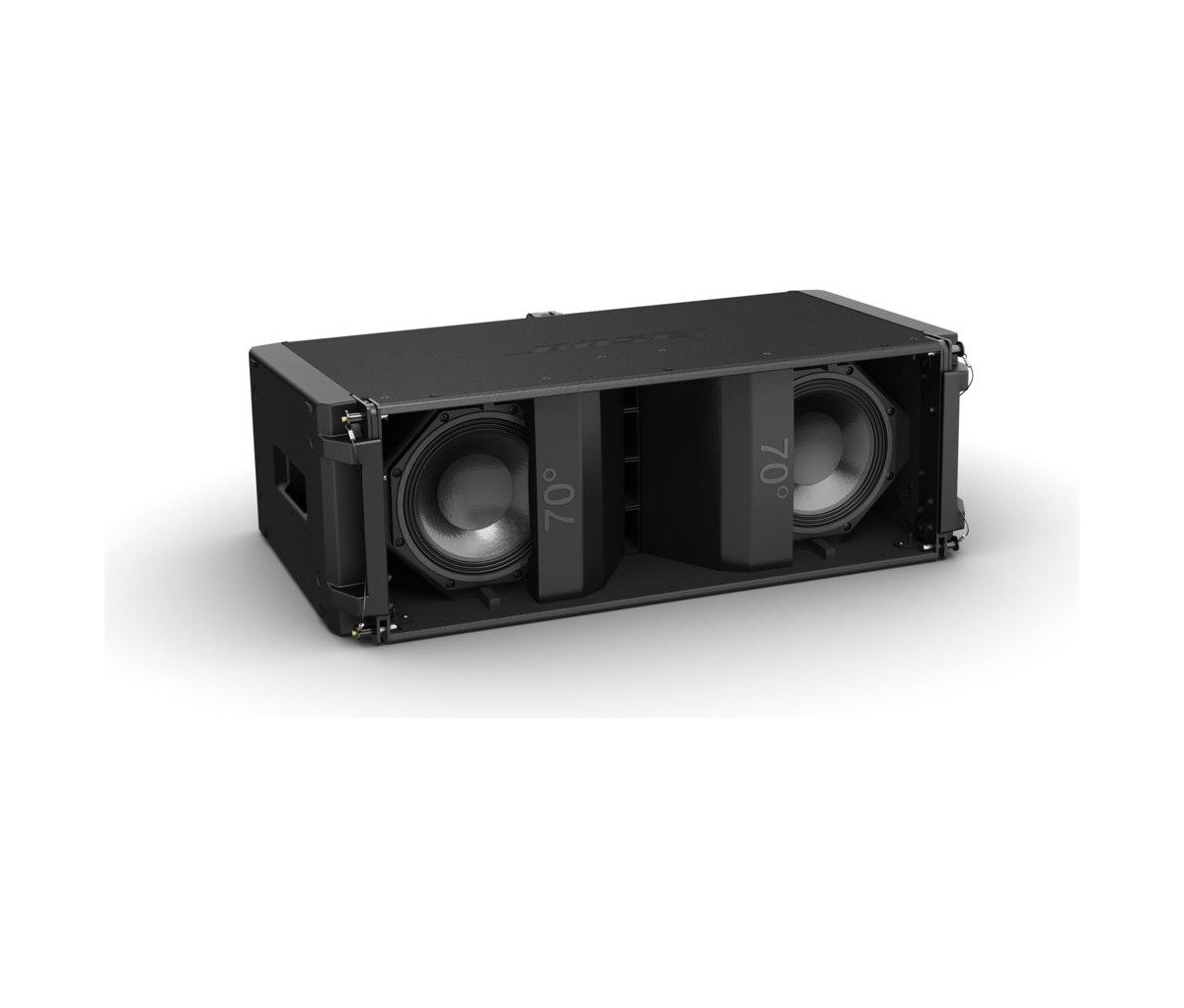

Changeable waveguides - includes both 70 deg and 100 deg waveguides to adjust horizontal coverage. Largest-in-class size provides superior coverage control and vocal clarity. Change single panel for asymmetrical patterns. Optional 55 deg waveguides for SM5.

Nominal Impedance8 ohms (low frequency) + 6 ohms (high frequency)
Enclosure MaterialBaltic birch plywood
ColorsBlack
Net Weight67.5 lb (30.6 kg)
Calculated Maximum SPL @ 1 m121 dB (low frequency), 127 dB (high frequency) continuous / 127 dB (low frequency), 133 dB (high frequency) peak
Coverage, Horizontal70 deg
Coverage, Vertical5 deg
Crossover750 Hz, acoustic, requires active 2-way crossover in DSP
